Setting arbitrary origin
X=+00000
Y=+00000
X=+00500
Y=+00500
Press ,fhe values X Y
wiel be 0
“” “
，
”
Relational map between absolute origin and arbitrary relative origin。
Arbitrary origin
Absolute origin
5.3.4 Raising knife, dropping knife

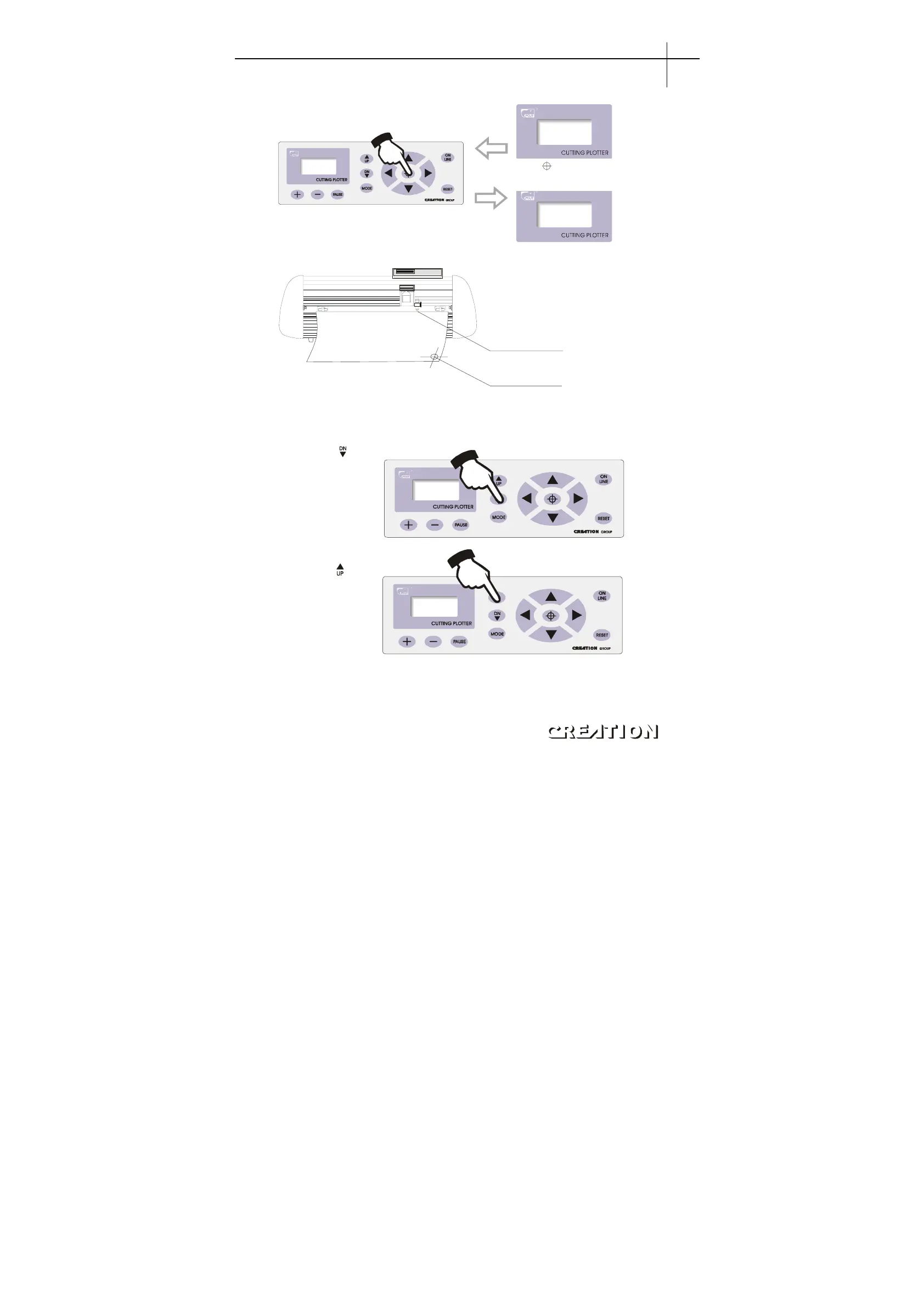

While in off-line state, press DN button, the knife will fall, then press UP button to raise
the knife。
Press to drop the knife
Press to raise the knife
“”
5.3.5 RESET
Press RESET button, the machine will reinitialize, the present position of knife top
will be set as new starting origin, all data in buffer memory will be cleared。
PCUT SERIES USER
‘
S MANUAL Cutting plotter PCUT CT operating instructions
15
Press“ ”.The values of“x，y”
axis will be 0
