Notes: testing with knife installed can be done one time only. To repeat the testing, please
replace the knife with plot pen to test repeating precision. with which you can test repeatable
precision of the machine. If the Demo Test meets requirement, so parts of the machine are ok. If
any error occurs during the testing, please contact local supplier or maintenance center。

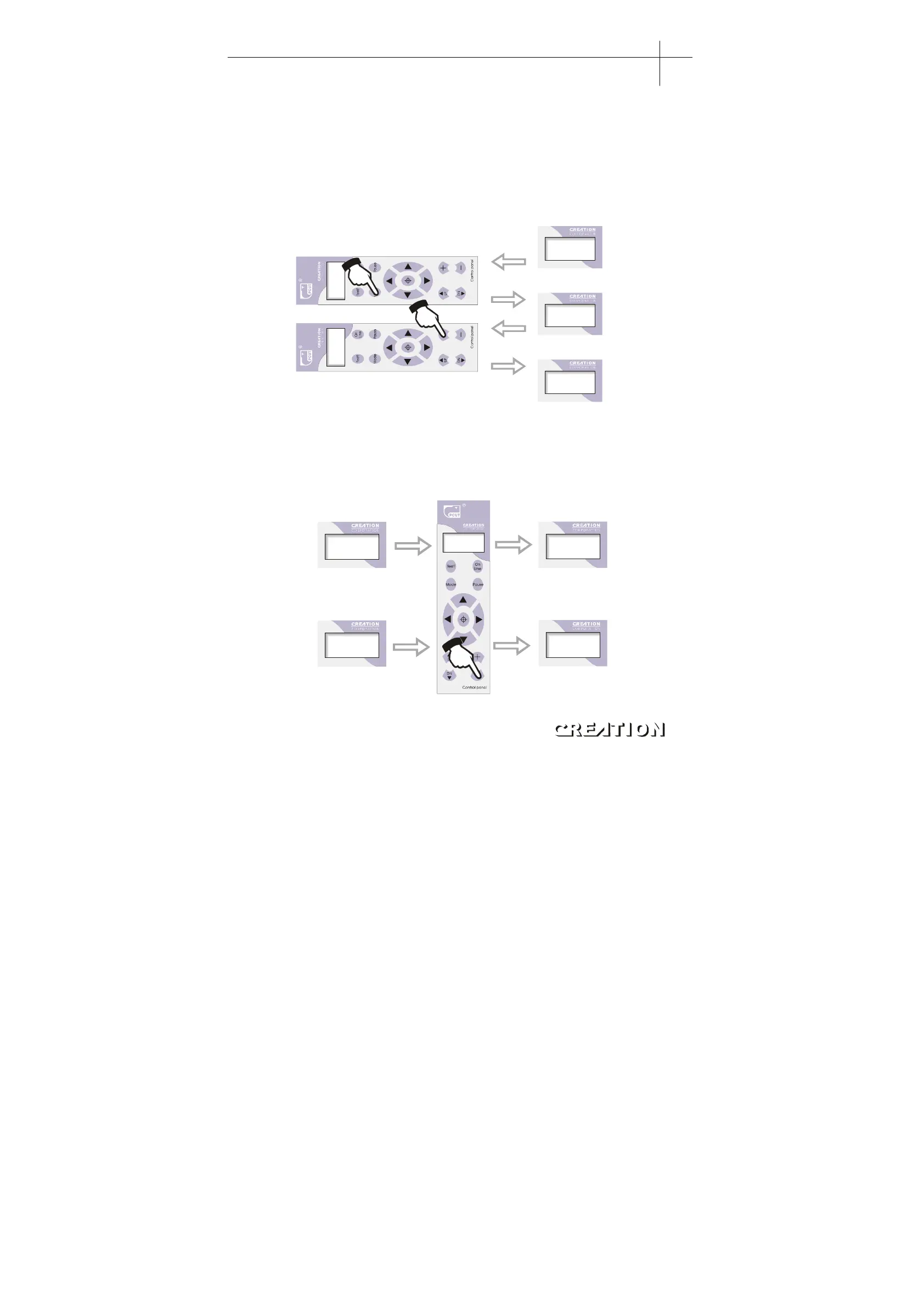

6.3.6.4 Repeating cutting
When displaying“ Repeat”,button press“+”or“-”to adjust repeating times, after
the adjustment is completed, save the parameters, then you can repeat cutting characters
or images computer transmits。
X+0. 00
Y+0. 00
Repeat
001
Repe at
012
Press + or - to adjust
repeating times
“” “”
Off-line state
Press MODE till repeat
cutting interface comes out
“”
Notes: this function is limited to memory; the capacity of the document shall below 1024kb
6.3.6.5 Interface for setting scale of shaft X, Y
To minimize the error in mechanic size, set ratio of“X, Y”to be adjustable, and
make composing size conformed to plotting size。
When real size of shaft“X”or“Y”exceeds composing size,
X- Sc al e
+ 32262 -
X- Sc al e
+ 25780 -
Y- Sc al e
+ 32100 -
Y- Sc al e
+ 25518 -
Press - button to lower the value
“”
In X-Scale state
“”
In Y-Scale state
“”
Contrarily, in“X-Scale”or“Y-Scale”state press“+”to increase the value。
PCUT SERIES USER
‘
S MANUAL Plotting servo machine PCUT S operating instructions
33
