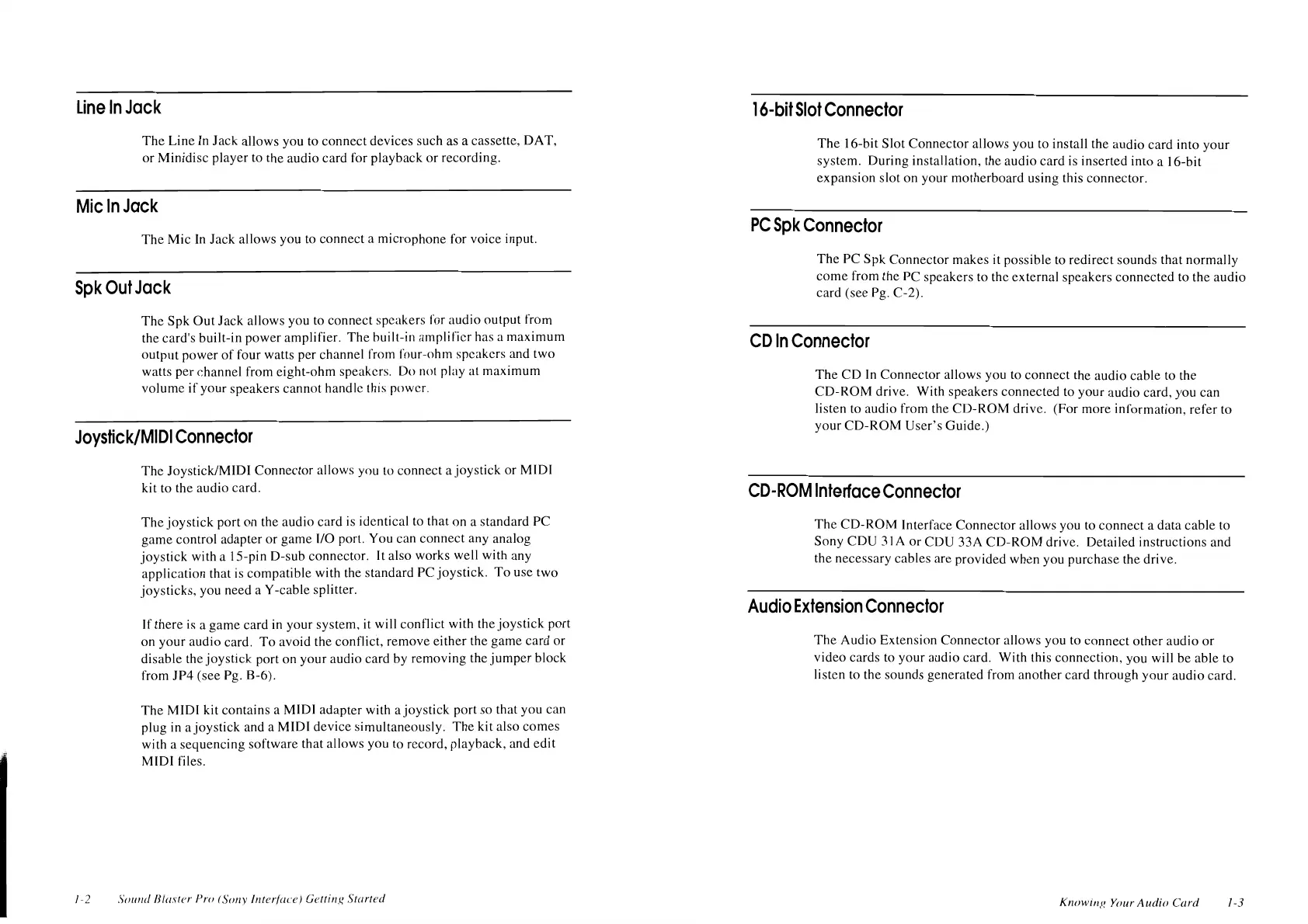

Line
In
Jack
The
Linc
In
Jack allows you to connect devices such as a cassette, DAT,
or Minidisc player to the audio card for playhack
or
recording.
Mic
In
Jack
The
Mic
In
Jack allows you
to
connect a microphone for voice input.
SpkOut
Jack
The
Spk
Out
Jack allows you to connect speakers for audio output from
the card's built-in power amplifier.
The
huilt-in amplifier has a maximum
output power
of
four
watts per channel from four-ohm speakers and two
watts per channel from eight-ohm speakers. Do not
play
at maximum
volume
if
your speakers cannot handle this power.
Joystick/MIDI
Connector
1-2
The
Joystick/MIDI Connector allows you to connect a joystick or MIDI
kit to the audio card.
The
joystick
port on the audio card
is
identical to that
on
a standard
PC
game control adapter or game
1/0
port.
You can connect any analog
joystick with a 15-pin D-sub connector. It also works well with any
application that is compatible with the standard PC
joystick.
To
use two
joysticks, you need a
Y
-cable splitter.
If there is a game card in your system, it will conflict with the
joystick
port
on
your
audio card.
To
avoid the conflict, remove either the game card or
disable the joystick port on
your
audio card by removing the
jumper
block
from JP4
(see
Pg.
B-6).
The
MIDI kit contains a MIDI adapter with a joystick port so that you can
plug in a joystick and a MIDI device simultaneously.
The
kit also comes
with a sequencing software that allows you
to
record, playback, and
edit
MIDI files.
Sound
/J1,1.11er
Pro (Sonv Inrcr/11ce/ GettinN
Storied
16-bit
Slot
Connector
The
16-bit Slot Connector allows you to install the audio card into your
system. During installation. the audio card is inserted into a 16-hit
expansion slot
on
your motherboard using this connector.
PC
Spk
Connector
The
PC
Spk Connector makes it possible to redirect sounds that normally
come
from the
PC
speakers to the external speakers connected to the audio
card (see
Pg.
C-2).
CD
In
Connector
The
CD
In
Connector allows you to connect the audio cable to the
CD-ROM
drive. With speakers connected to your audio card, you can
listen
to
audio from the
CD-ROM
drive. (For more information, refer to
your
CD-ROM
User's
Guide.)
CD-ROM
Interface
Connector
The
CD-ROM lntcrfoce Connector allows you to connect a
data
cable to
Sony
CDU
31
A
or
CDU 33A
CD-ROM
drive. Detailed instructions and
the necessary cables arc provided when you purchase the drive.
Audio
Extension
Connector
The
Audio Extension Connector allows you to connect
other
audio
or
video cards to
your
audio card. With this connection, you will be able to
listen lo the sounds generated from another card through
your
audio card.
KnowinN
Your
Audio
Card
1-3
