Crestron CHV-TSTATEX User Manual

infiNET EX™ Thermostat Crestron CHV-TSTATEX
NOTE: 24 Volt power is returned through the RH connector. Refer to wiring
diagrams on the following pages.
NOTE: Most heat pump systems use O for changeover. B is provided for the
systems that do not.
NOTE: Refer to “DIP Switch Setup” which starts on page 10 for DIP switch
settings.

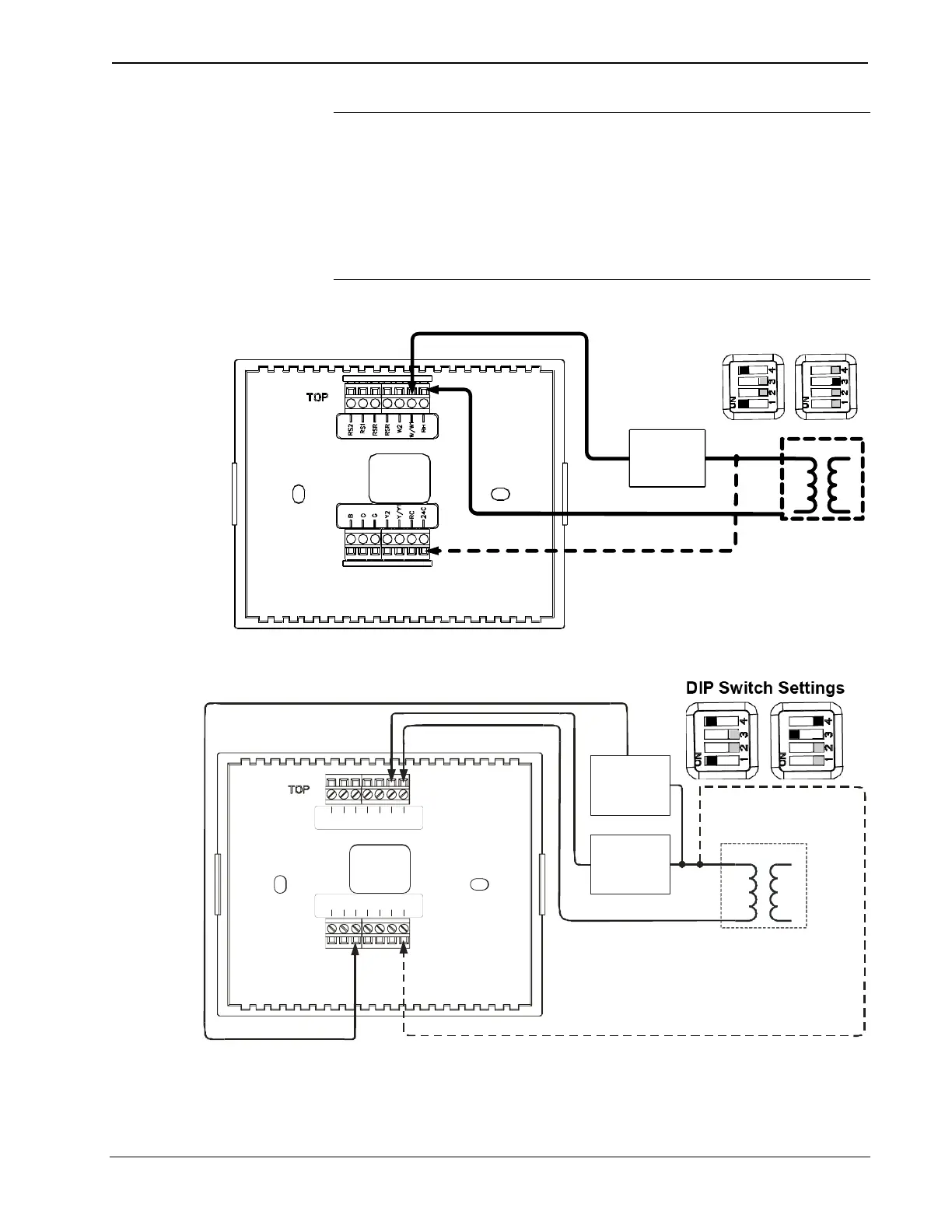

CHV-TSTATEX in Heat Only Application
Transformer
Optional, for power
R
C
System
Heat
Relay
DIP Switch Settings
CHV-TSTATEX in Heat Only with Fan Application
RS2 RS1 RSR RSR
W2 RH
B
O G Y2 Y/Y1
RC 24C
Transformer
R
C
System
Optional, for power
Heat
Relay
Fan
Relay
W/W 1
12 • infiNET EX™ Thermostat: CHV-TSTATEX Operations & Installation Guide – DOC. 6989A
