Crestron CHV-TSTATEX infiNET EX™ Thermostat
NOTE: To run fan during heat calls, be sure to enable the DIP switches. Refer to
“DIP Switch Setup” which starts on page 10 for details.
NOTE: A jumper wire must be placed between RC and RH if 24 VAC will enable
the fan.

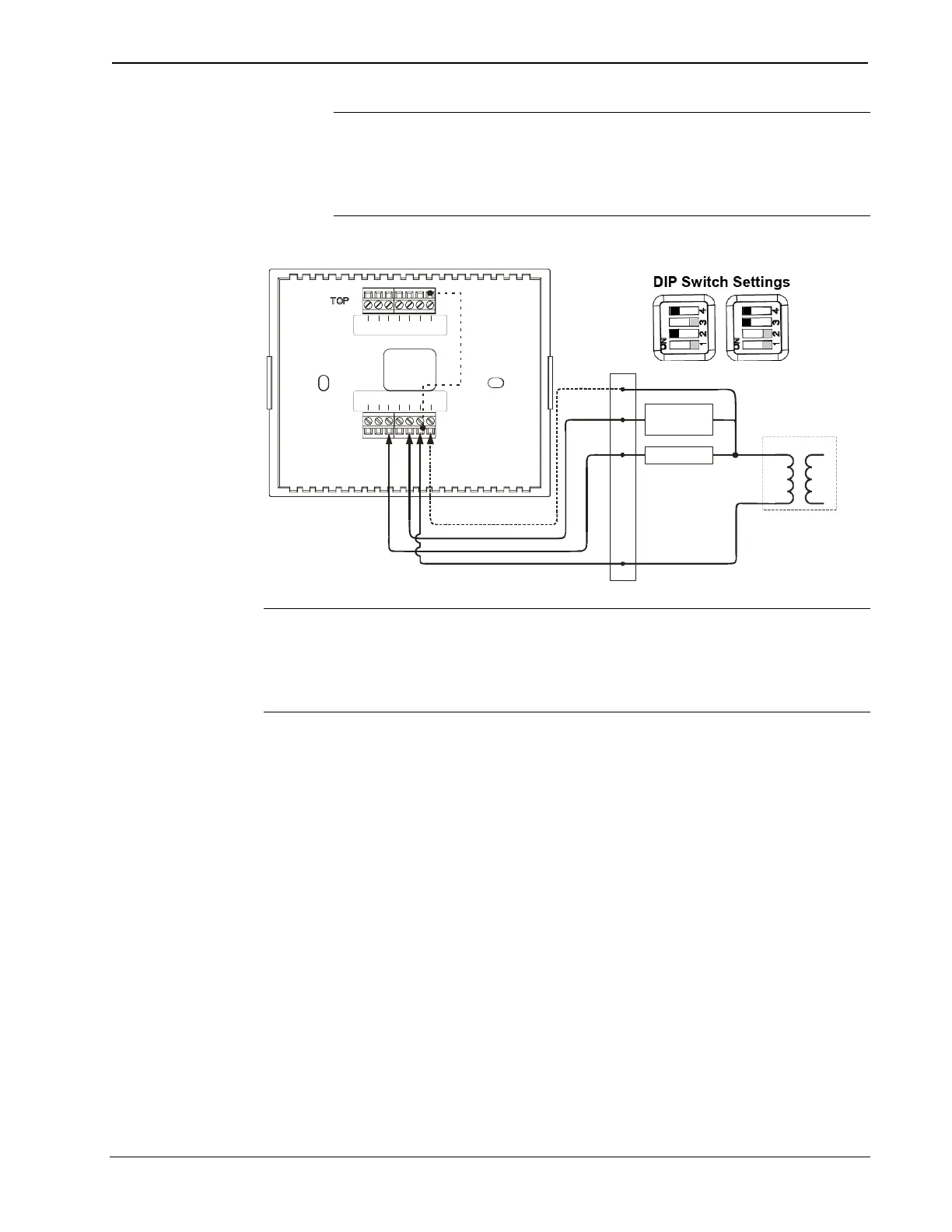

CHV-TSTATEX in Cool Only Application
RS2 RS1 RSR RSR
W2 RH
B
O G Y2 Y/Y1
RC 24C
G
C
Transformer
R
C
Y
Compressor
Relay
R
Optional, for power
Fan Relay
W/W1
NOTE: A jumper wire must be placed between RC to RH for combined systems or integrated
controllers.
NOTE: Connect Y/Y1 and W/W1 to steal power in cool only mode. Make sure to disable heat
calls in setup.
Operations & Installation Guide – DOC. 6989A infiNET EX™ Thermostat: CHV-TSTATEX • 13
