Configure Content LAN Mode
Content LAN mode controls whether the CONTENT port of the DMC-CPU3 card in the
switcher will be used to provide a dedicated LAN connection for streaming content to
and from DMC streaming input and output cards (DMC-STR and DMC-STRO,
respectively). When Content LAN mode is enabled, the CONTENT port of the DMC-
CPU3 is used for streaming rather than the LAN port of the switcher or the CONTENT
LAN port of the streaming cards.
To configure content LAN mode:
1. Do either of the following:
• Enable CONTENT LAN mode by selecting the CONTENT LAN Mode checkbox.
• Disable CONTENT LAN mode by deselecting the CONTENT LAN Mode
checkbox (default setting).
2. Click the Apply Settings & Reboot button to save the setting and reboot the
system.
A dialog box appears asking for confirmation to reboot the switcher.

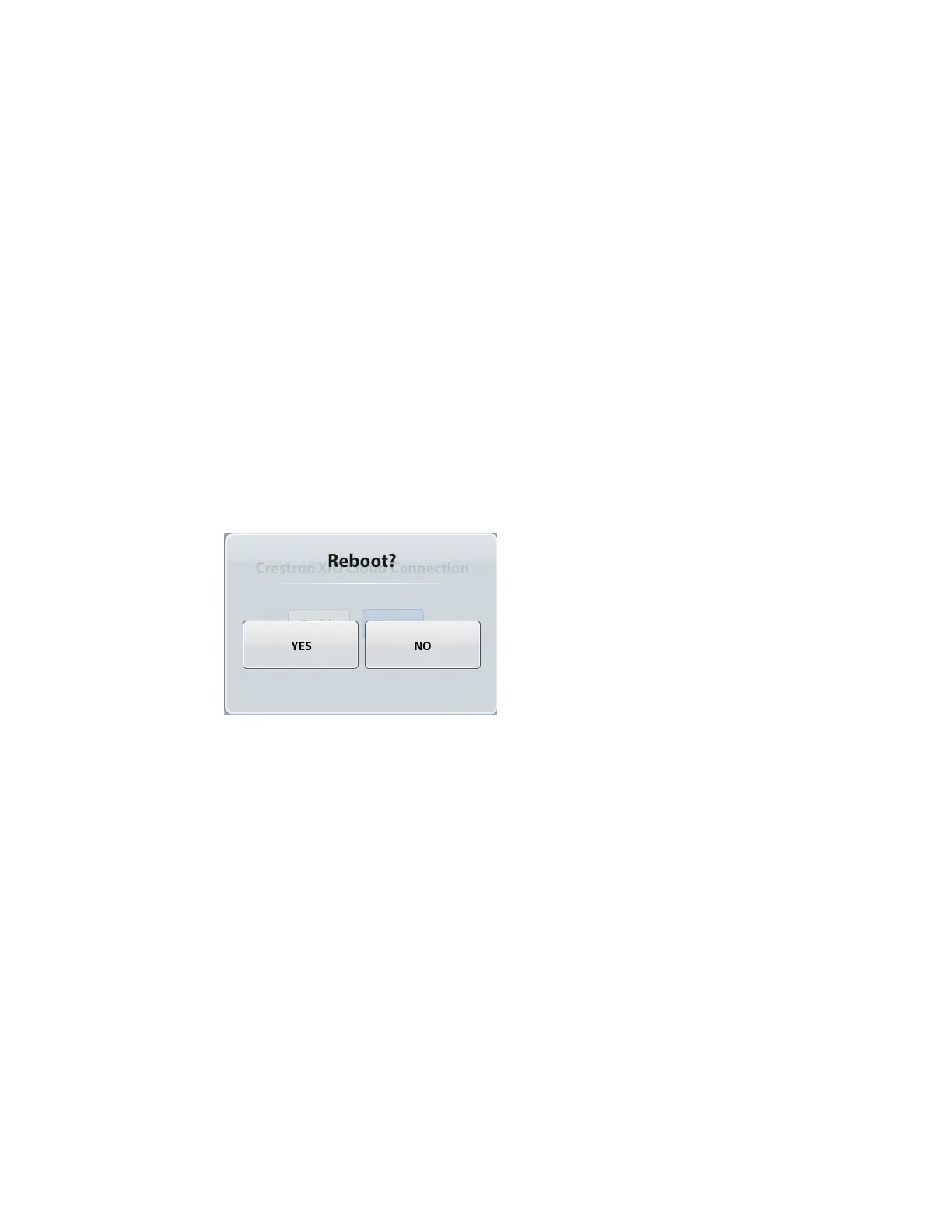

Reboot Dialog Box
3. In order for the new setting to take effect, click YES to reboot the switcher.
A message appears indicating that the system is rebooting. When the process is
complete, the Main page opens.
