DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
3. Use the Address Book in Crestron Toolbox to create an entry for
the DM-RMC-100 using the TCP connection type and enter the IP
address of the DM-RMC-100.
4. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.

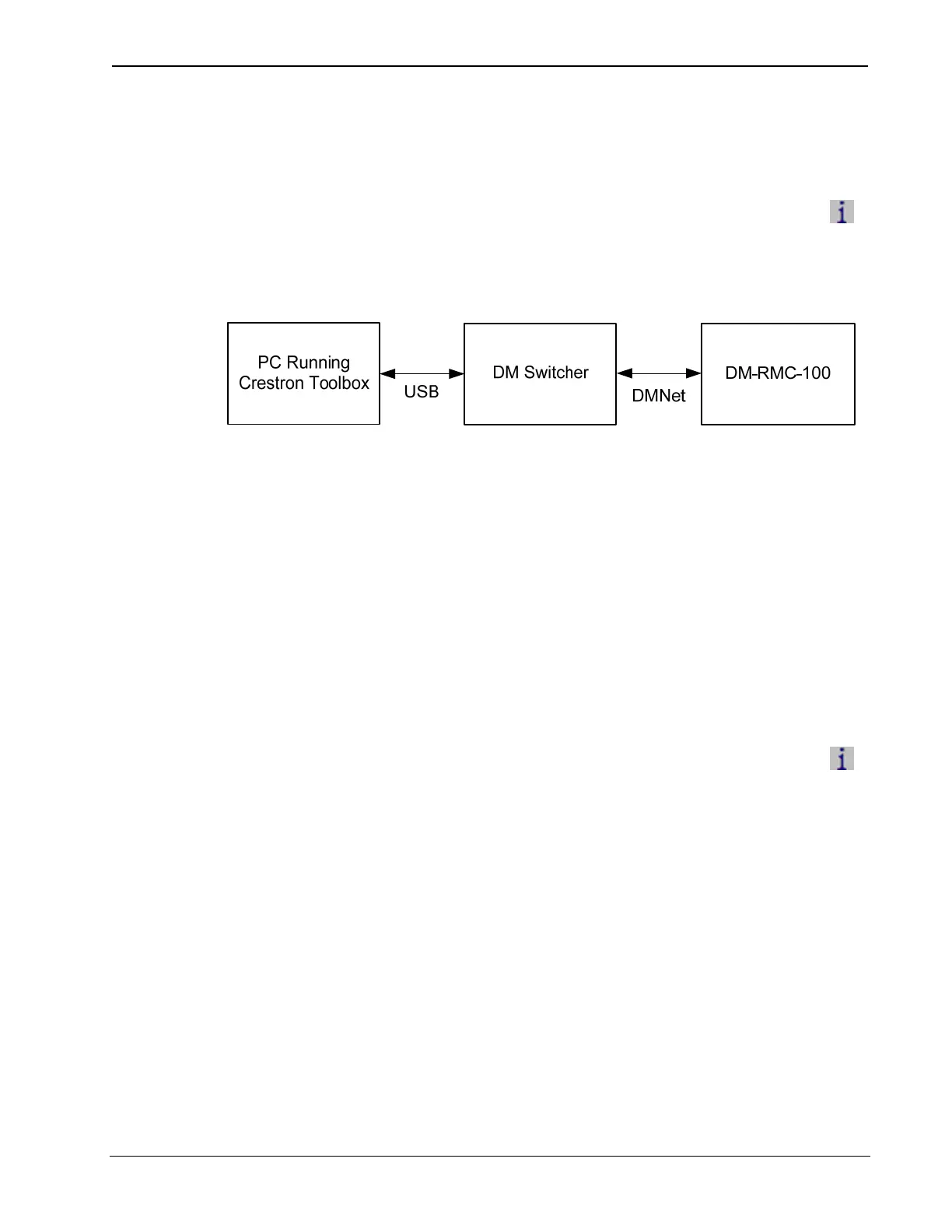

USB Communication via DM Switcher
To establish USB communication between the PC and the
DM-RMC-100 via a DM switcher:
1. Use the Address Book in Crestron Toolbox to create an entry using
the expected communication protocol (USB). When multiple USB
devices are connected, identify the DM switcher by entering
“DM-MD8X8”, “DM-MD16X16” or “DM-MD32X32” in the
Model textbox, the unit’s serial number in the Serial textbox or the
unit’s hostname in the Hostname textbox. The hostname can be
sound in the “System Info” window in the Ethernet section of the
window, however, communication must be established in order to
see this information in the “System Info” window.
2. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.
28 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F

Crestron DigitalMedia Room Controller DM-RMC-100 Specifications

General

Category	Controller
Type	DigitalMedia Room Controller
HDMI Output	1 HDMI output
Ethernet	10/100 Mbps; auto-switching
Control System	Crestron
Operating Temperature	32° to 104° F (0° to 40° C)
Humidity	10% to 90% RH (non-condensing)
IR/Serial	Yes
Relay	Yes
USB	Yes
DM 8G+ Input	1 DM 8G+ input
Analog Audio Output	1 analog stereo output
IR/Serial Port	1 IR/Serial port
Relay Port	1 relay port
USB Port	1 USB port
Input Connectors	DM 8G+
Output Connectors	HDMI, Analog Audio, IR/Serial, Relay
Audio Support	Stereo
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
