Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT
Via LAN Port

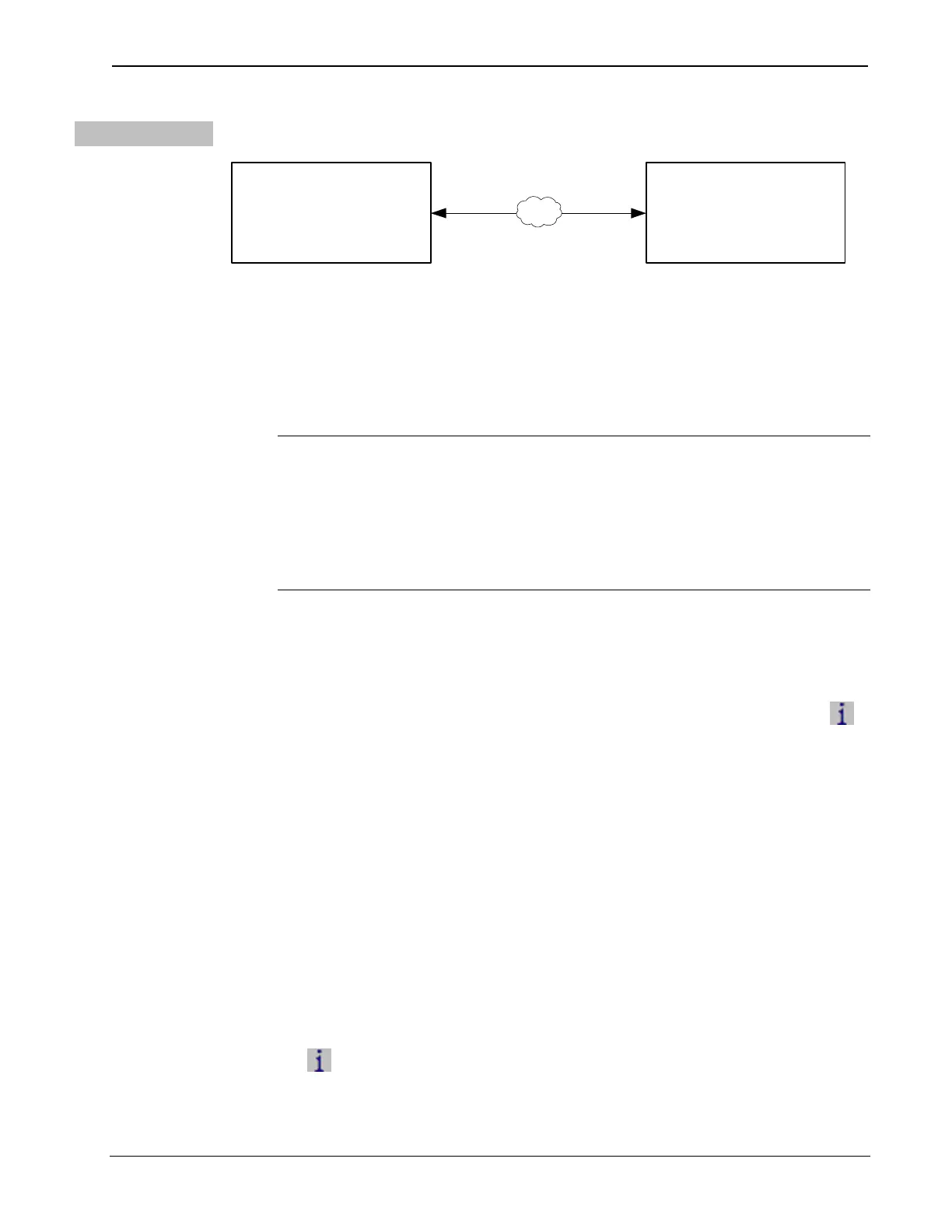

TCP/IP Communication via LAN Port of DM-RMC-100
PC Running
Crestron Toolbox
LAN
DM-RMC-100
To establish TCP/IP communication between the PC and the
DM-RMC-100 via the LAN port of the DM-RMC-100:
1. Use the Device Discovery Tool in Crestron Toolbox to find the IP
address of the DM-RMC-100. The tool is available in Toolbox
version 1.15.143 or later.
NOTE: When the DM-RMC-100 is used in a standalone
configuration (i.e. without a DM switcher), DHCP is enabled by
default. If desired, a default IP address (192.168.1.241) can be
assigned by holding down its SETUP button while applying
power. This IP address overwrites any previous settings and
remains until it is changed manually.
2. Use the Address Book in Crestron Toolbox to create an entry for
the DM-RMC-100 using the TCP connection type and enter the IP
address of the DM-RMC-100.
3. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.
4. (Optional) If additional changes to TCP/IP settings are desired, do
the following:
a. Assign an IP address, IP mask and default router for the
DM-RMC-100 via Crestron Toolbox (Functions | Ethernet
Addressing).
b. Close the “System Info” window.
c. In Crestron Toolbox, change the Address Book entry for the
DM-RMC-100 so that it uses the IP address assigned in step 4a.
d. Display the DM-RMC-100’s “System Info” window (click the
icon); communications are confirmed when the device
information is displayed.
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 29
