Crestron DM-NVX-D30 Configuration Guide

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 7
DM NAX (AES67) Audio
Displays the following DM NAX™ audio information for both DM NAX (AES67) Transmit and DM
NAX (AES67) Receive audio channels.

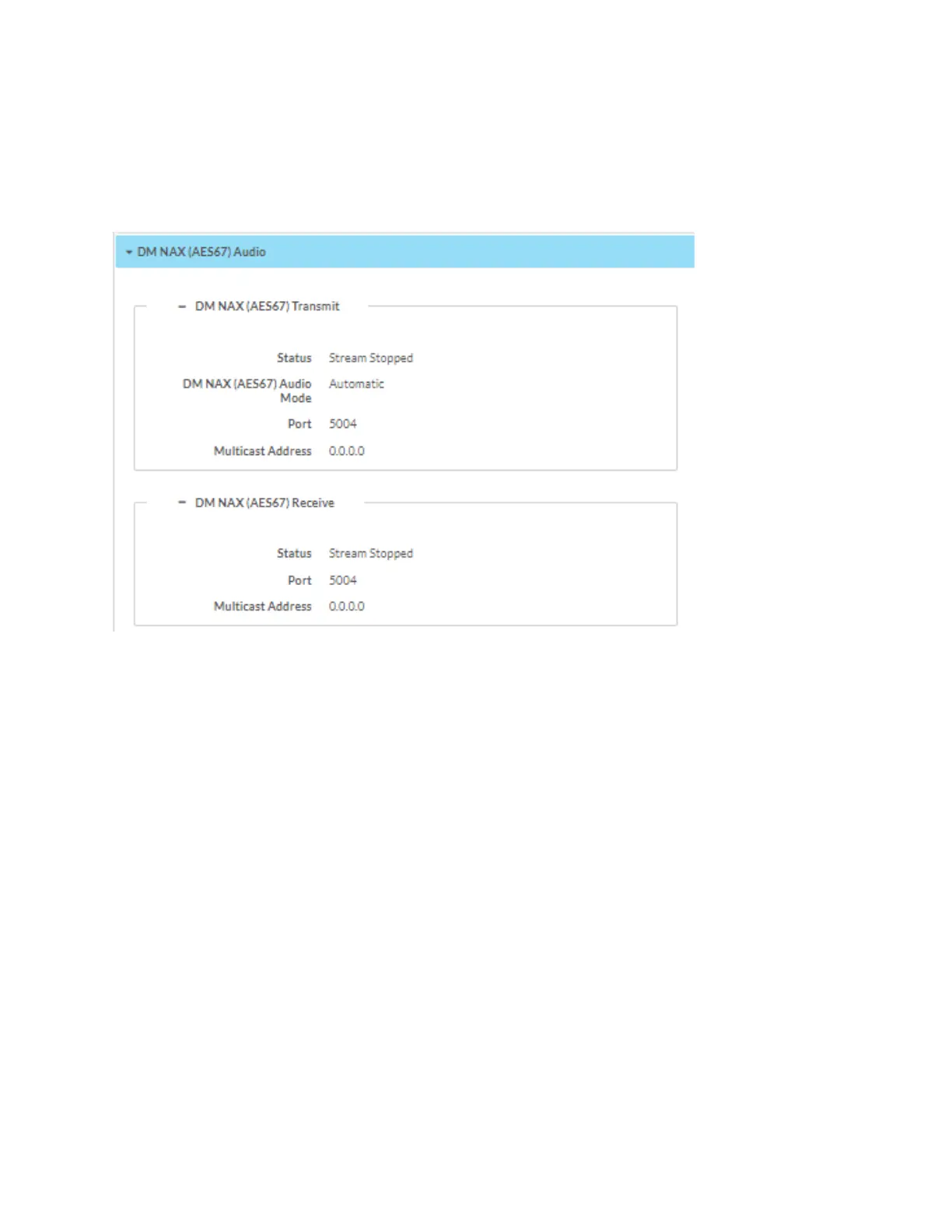

Status Page - DM NAX (AES67) Audio
l
Status: Displays the status of the stream.
l
DM NAX (AES67) Audio Mode: Will display under either DM NAX (AES67) Transmit or DM
NAX (AES67) Receive depending on the mode set. By default, the mode is set to Automatic
which will add +1 to the outgoing video stream multicast address. For example, if the Video
multicast address is 239.8.0.0, the DM NAX (AES67) Multicast address will be 239.8.0.1.
The mode can also be set to Manual (which will allow setting the multicast address in the
field below) or Disabled.
l
Multicast Address: Sets the multicast address. This is only available when Mode is set to
Manual.
l
Port: Sets the port number. Available when Mode is set to Manual.
Control System
Displays the following connection information.
