15 Inch Tilt Touchpanel Crestron Isys™ TPS-6000
Uploading a VT Pro-e Project
The TPS-6000 touchpanel
source file has the extension
.vtp. A compiled VT Pro-e file
has the extension .vtz.
The VT Pro-e file can be uploaded to the touchpanel using VT Pro-e or via the
Crestron Viewport.
Upload via VT Pro-e
1. Start VT Pro-e.
2. Select File | Open | Project to view the “Open” window, navigate to the VT
Pro-e file (.vtp), and click Open.
3. Select File | Upload Project. This automatically selects the compiled .vtz
file.
Upload via Crestron Viewport
1. Verify that the procedure for “Communication Settings” that begins on page
38 has been performed.

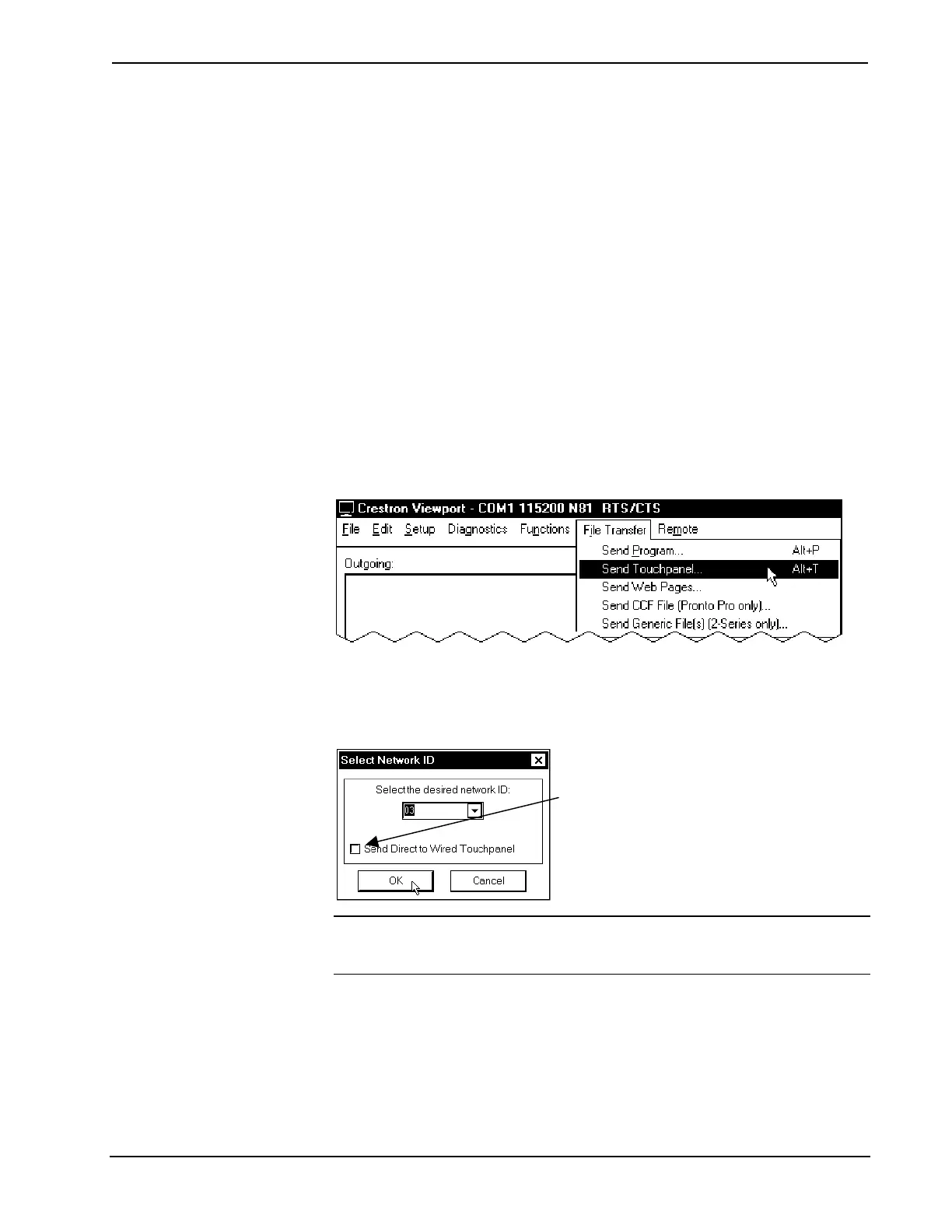

2. As shown after this step, select File Transfer | Send Touchpanel
(alternatively, press Alt+T) from the Viewport menu.
File Transfer | Send Touchpanel Command
3. As shown after this step, select the Net ID of the TPS-6000 touchpanel and
then click OK. The “Touch Panel Transfer” window appears (refer to the
subsequent graphic).
“Select Network ID” Window
Check Send Direct to Wired Touchpanel if
connected via RS-232 directly to touchpanel.
NOTE: If problems occur when transferring any Cresnet file (touchpanel
project/firmware), lower the port speed baud rate to 38400 to match the Cresnet bus
speed when transferring through a control system.
42 • 15 Inch Tilt Touchpanel: Crestron Isys™ TPS-6000 Operations Guide - DOC. 5864A
