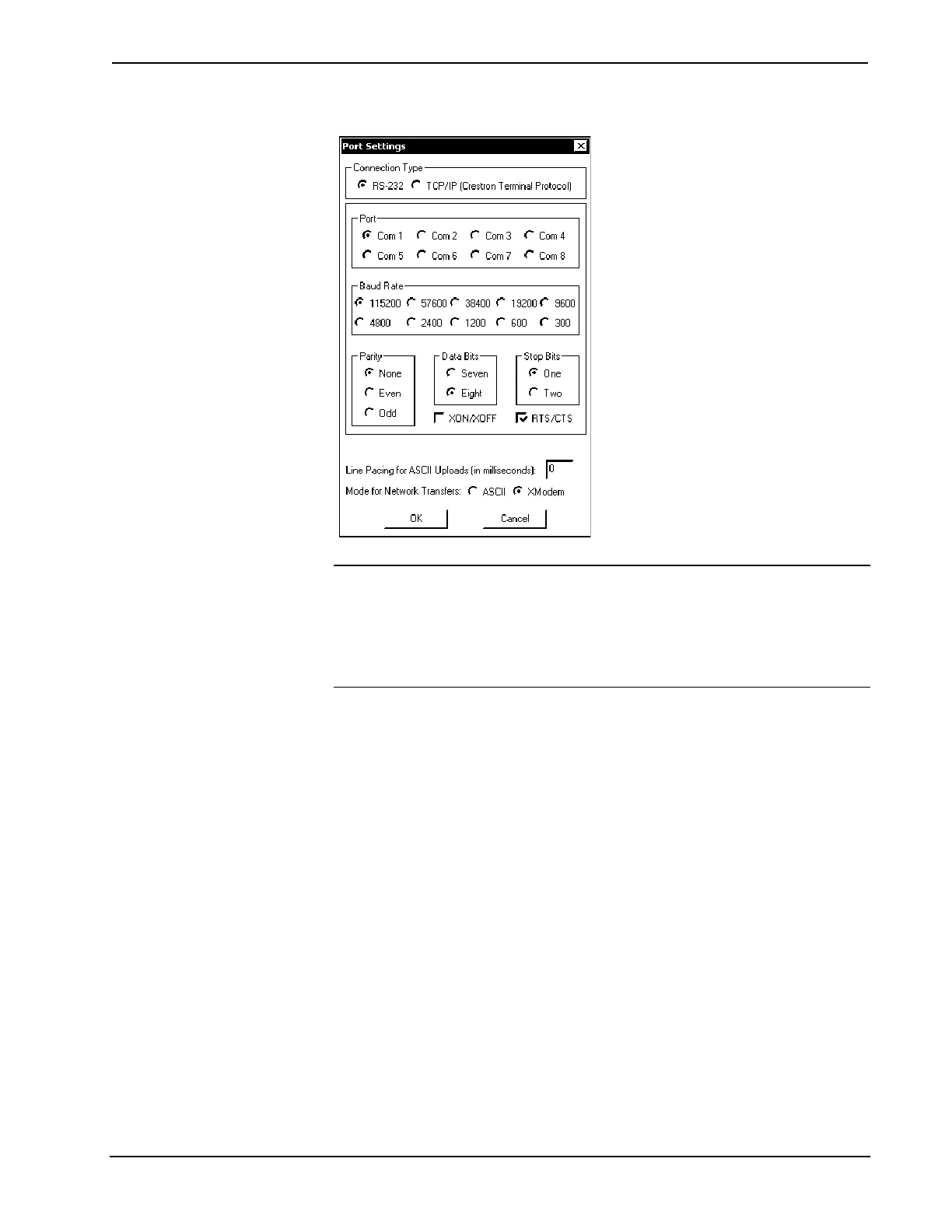

“Port Settings” Window
NOTE: The parameters shown in the previous illustration are the port settings for a
2-Series control system. Consult the Operations Guide for the control system being
used for exact parameter selection.
NOTE: If connecting to the touchpanel through a control system, the baud rate may
need to be set to 38400 baud (Cresnet speed) for a successful transfer.
4. To verify communication, select Diagnostics | Establish Communications
(Find Rack). This should display a window that gives the COM port and
baud rate. If communication cannot be established, refer to the
“Troubleshooting Communications” section in the respective Operations
Guide for the control system.
Uploading a SIMPL Windows Program
A control system source file has
the extension .smw. A compiled
SIMPL Windows file has the
extension .spz for a 2-Series
control system, .bin for CNX
generation, and .csz for CNX
generation with SIMPL+.
The SIMPL Windows file can be uploaded to the control using SIMPL Windows or
via the Crestron Viewport.
Upload via SIMPL Windows
1. Start SIMPL Windows.
2. Select File | Open to view the “Open” window, navigate to the SIMPL
Window file (.smw), and click Open.
3. Select Project | Transfer Program.
Upload via Crestron Viewport
1. Verify that the procedure for “Communication Settings” that begins on page
38 has been performed.
40 • 15 Inch Tilt Touchpanel: Crestron Isys™ TPS-6000 Operations Guide - DOC. 5864A
