Crestron Isys™ TPS-6000 15 Inch Tilt Touchpanel
Physical Description
The TPS-6000’s 15-inch (38.1-cm) touch sensitive viewing screen is located on the
front of the TPS-6000 touchpanel. The electronic hardware is housed in a high
impact, black molded plastic enclosure, shown in the following diagram. This
touchpanel is designed for placement on a counter. It possesses a hinged base, which
can tilt from 30 to 80 degrees. Refer to “Position Lock Buttons” on page 7 for tilting
details. All RS-232, video, network, and power connections are made at the rear
panel on the base of the unit.
NOTE: Video and network signals are connected to either the TPS-IMPC or
TPS-IMW touchpanel interface modules.

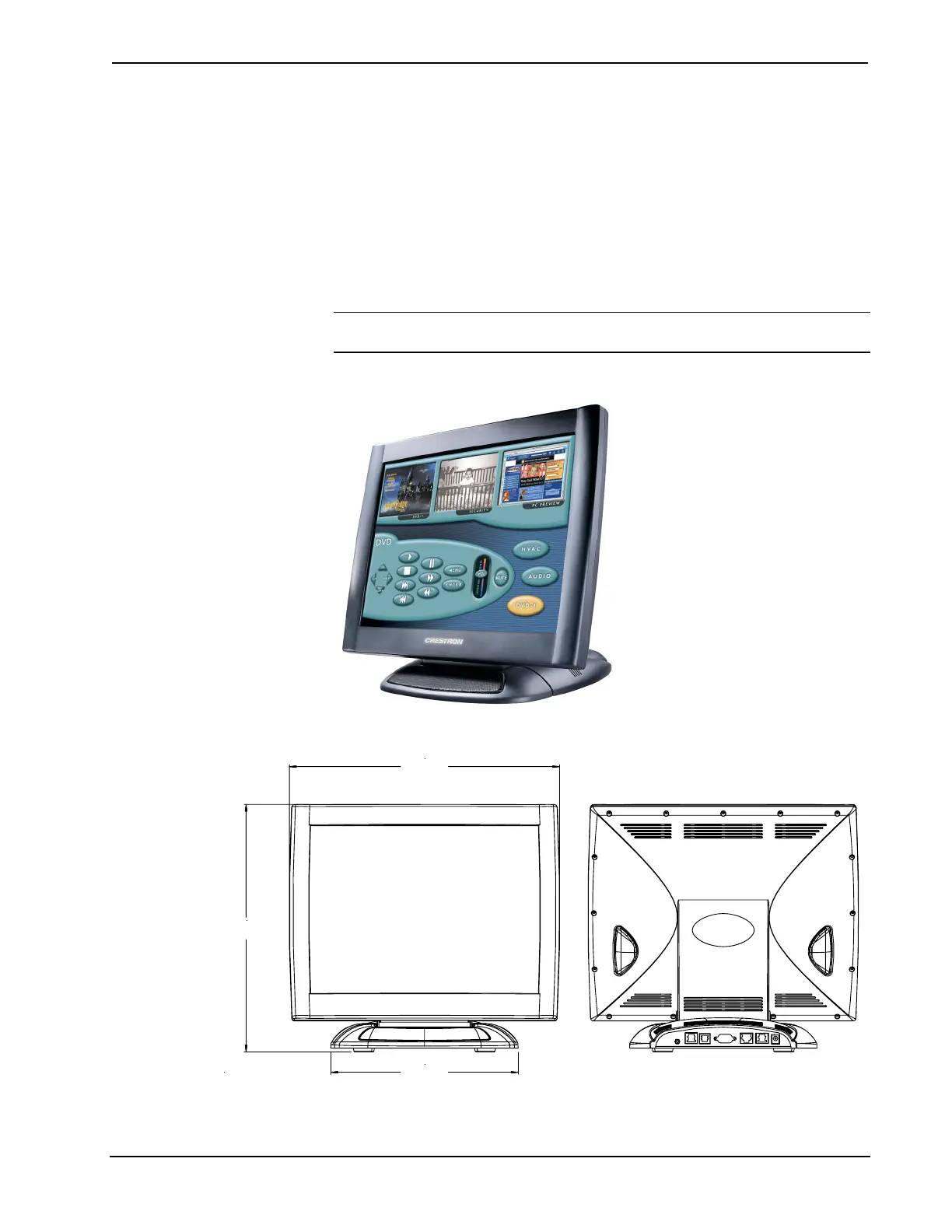

TPS-6000, Front View
Physical Views of the TPS-6000 Touchpanel (Front and Back)
13.04 in
(33.11 cm)
9.84 in
(25.00 cm)
14.21 in
(36.08 cm)
Operations Guide - DOC. 5864A 15 Inch Tilt Touchpanel: Crestron Isys™ TPS-6000 • 5
