Isys™ 5.7” Wireless Touchpanels Crestron TPS-6X Series

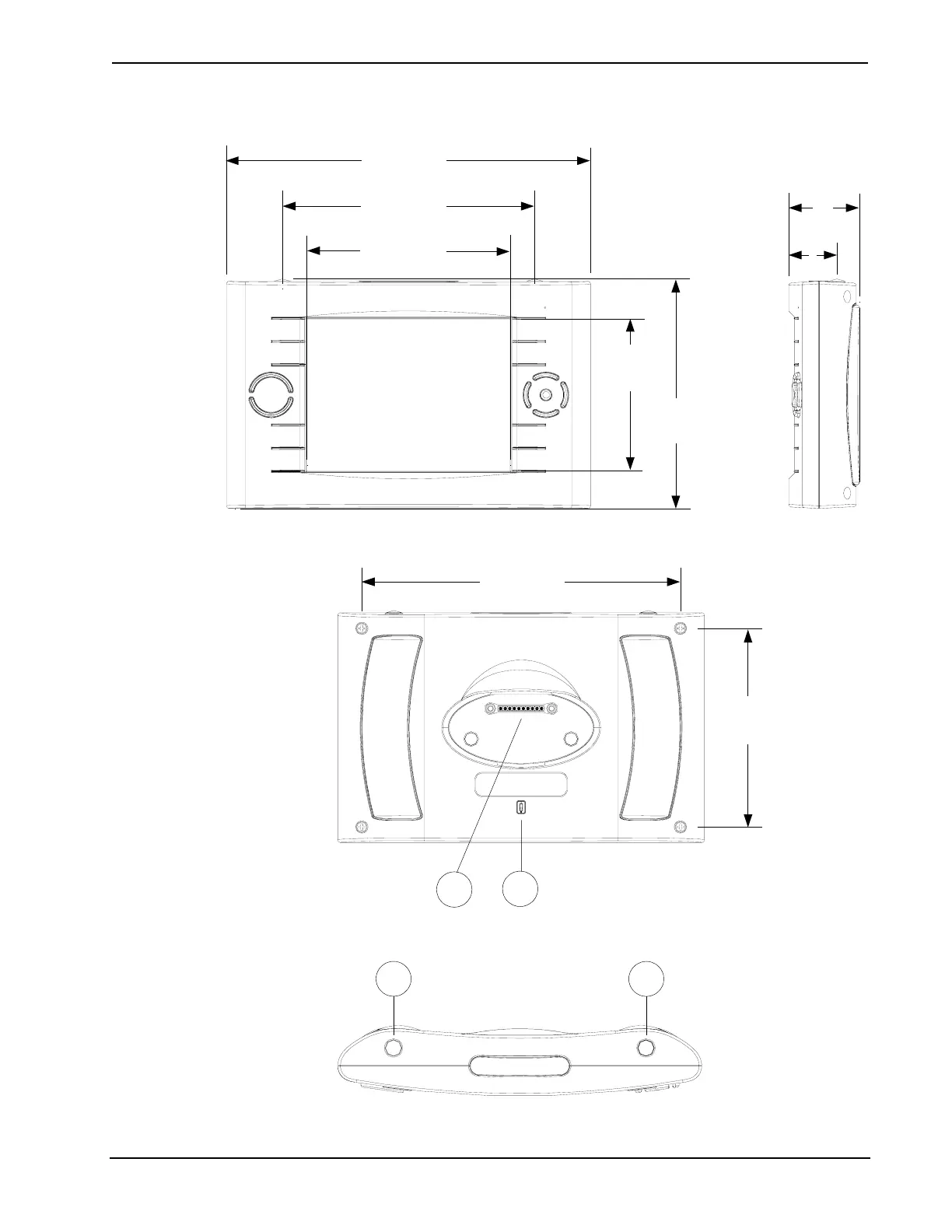

TPS-6X Overall Dimensions (Front and Side Views)
1.07 in
(28 mm)
1.57 in
(40 mm)
5.60 in
(143 mm)
8.08 in
(206 mm)
4.51 in
(115 mm)
3.38 in
(86 mm)
5.10 in
(130 mm)
TPS-6X Overall Dimensions (Rear View)
7.02 in
(179 mm)
4.37 in
(111 mm)
1
2
TPS-6X (Top View)
4
3
