Isys™ 5.7” Wireless Touchpanels Crestron TPS-6X Series
SETUP
To enter the SETUP MODE menu, touch Setup on the MAIN MENU.

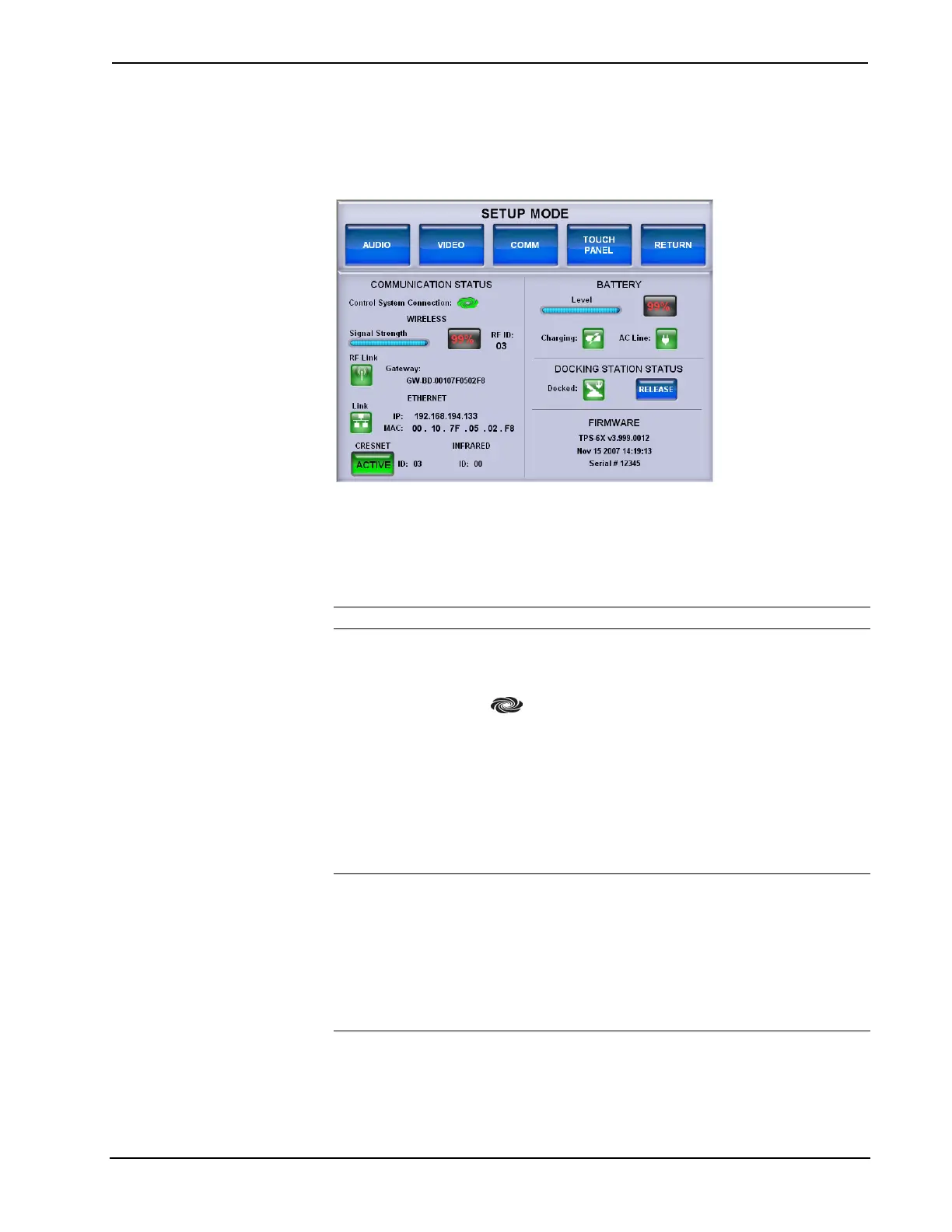

SETUP MODE Menu
The SETUP MODE menu offers a series of buttons which open additional menus
and displays that are detailed in subsequent paragraphs. After setup parameters have
been selected, touch RETURN to go to the previous menu. When all setup
parameters have been selected, touch RETURN repeatedly to go back to the MAIN
MENU.
NOTE: All touchpanel settings are automatically saved in non-volatile memory.
The SETUP MODE menu also provides data for COMMUNICATION STATUS,
BATTERY, DOCKING STATION STATUS and FIRMWARE.
The Crestron Swirl logo in the COMMUNICATION STATUS section
illuminates to indicate the status of your connection to the control system(s). For
details, refer to “COMM” which starts on page 19.
The COMMUNICATION STATUS section also displays wireless signal strength, RF
ID, gateway connection and ID, Ethernet connection, IP and MAC addresses,
Cresnet connection status and ID and infrared ID.
The BATTERY section displays battery charge level and has indicators to show when
the battery is charging and when AC power is connected.
NOTE: When battery power is low, the TPS-6X will show a warning message. The
key backlight will be turned off and the display backlight will dim to minimum until
the battery is recharged or the unit is docked. If battery power drops to 4%, saving of
panel settings is not guaranteed.
NOTE: The battery charge level percentage indicator gets more accurate after a few
charge/discharge cycles. Periodic full discharge (i.e. once a month) is recommended
to maintain accuracy of the percentage measurement.
The DOCKING STATION STATUS section has an indicator to show docked status.
The RELEASE button is used to release the touchpanel from its (optional)
TPS-6X-DSW docking station.
16 • Isys™ 5.7” Wireless Touchpanels: TPS-6X Series Operations Guide – DOC. 6875B
