Crestron TPS-6X Series User Manual

Isys™ 5.7” Wireless Touchpanels Crestron TPS-6X Series
VIDEO

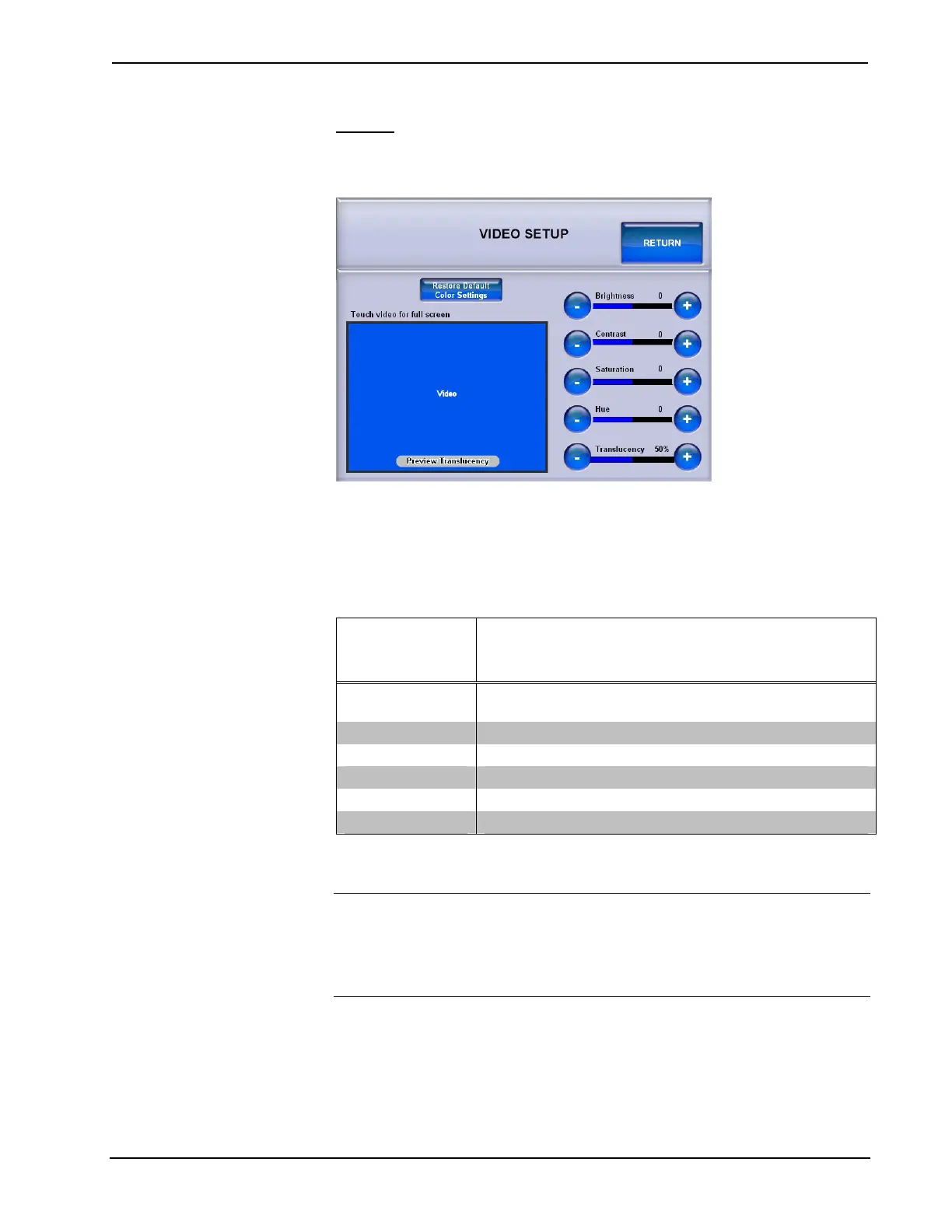

From the SETUP MODE menu, touch VIDEO to enter the VIDEO SETUP menu.
VIDEO SETUP Menu
The VIDEO SETUP menu offers a series of buttons that adjust video Brightness,
Contrast, Saturation, Hue and Translucency. The Restore Default Color Settings
button will return all of these controls to their factory defaults.
Refer to the following table for additional VIDEO SETUP menu details.
Video Setup Details
VIDEO SETUP
SCREEN
CONTROL
DESCRIPTION
Restore Default
Color Settings
Returns video settings to their factory defaults.
Brightness
Adjusts video image brightness with the – and + buttons.
Contrast
Adjusts video image contrast with the – and + buttons.
Saturation
Adjusts video image saturation with the – and + buttons.
Hue
Adjusts video image hue with the – and + buttons.
Translucency
Adjusts video image translucency with the – and + buttons.
The Preview Translucency area of the video screen within the VIDEO SETUP menu
will show the effects of different settings of the Translucency controls.
NOTE: Preview Translucency requires an actual video signal input to the
touchpanel in order to show the effects of the Translucency controls.
NOTE: The TPS-6X will display video only when it is docked and when the
TPS-6X-IMCW Interface Module (included) is receiving power.
Touching the video screen within the VIDEO SETUP menu provides a full screen
view, as shown in the following illustration.
18 • Isys™ 5.7” Wireless Touchpanels: TPS-6X Series Operations Guide – DOC. 6875B
