Product Manual — Doc. 8555D TS-770andTS-1070•31
Rava® SIPIntercom
Tap Rava Test on the Diagnostics & Advanced screen to display the RavaDiagnosticsscreen.

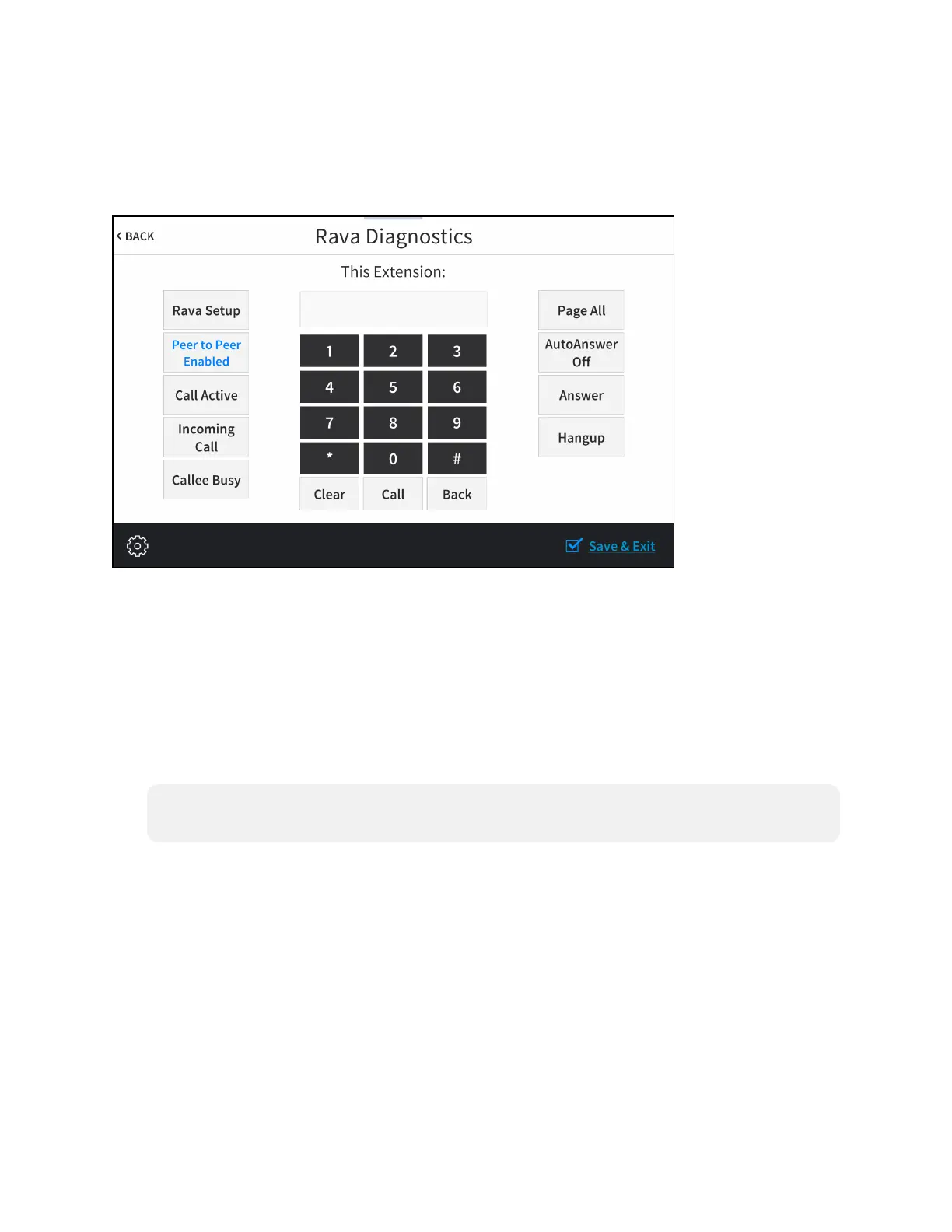

Rava Diagnostics Screen
Use the Rava Diagnostics screen to test using the Rava® SIP Intercom with the touch screen.
Rava SIP intercom technology enables hands-free VoIP communication with other Rava-enabled
touch screens and door stations. Rava works over Ethernet, supporting 2-way intercom and
paging without requiring any special wiring.
This screen may be used to call another touch screen that has a Rava SIP intercom, to test and
configure projects, and to adjust various Rava settings.
l To place a call to another touch screen with a Rava SIP intercom, enter the extension of
the touch screen using the numeric keypad, and then tap Call.
NOTE: If the intercom functions but the Rava project does not, there is an issue with the
project. If the intercom does not function, there is an issue with the intercom settings.
l Use the buttons on the left and right of the screen to view or control various call settings.
