Product Manual — Doc. 8555D TS-770andTS-1070•41
Status
Click the Status tab on the top left of the configuration interface to display selections for
viewing the status of device, network, and control system settings.
Click on a selection name to expand the selection. If the selection is expanded, click the selection
name again to collapse the section.

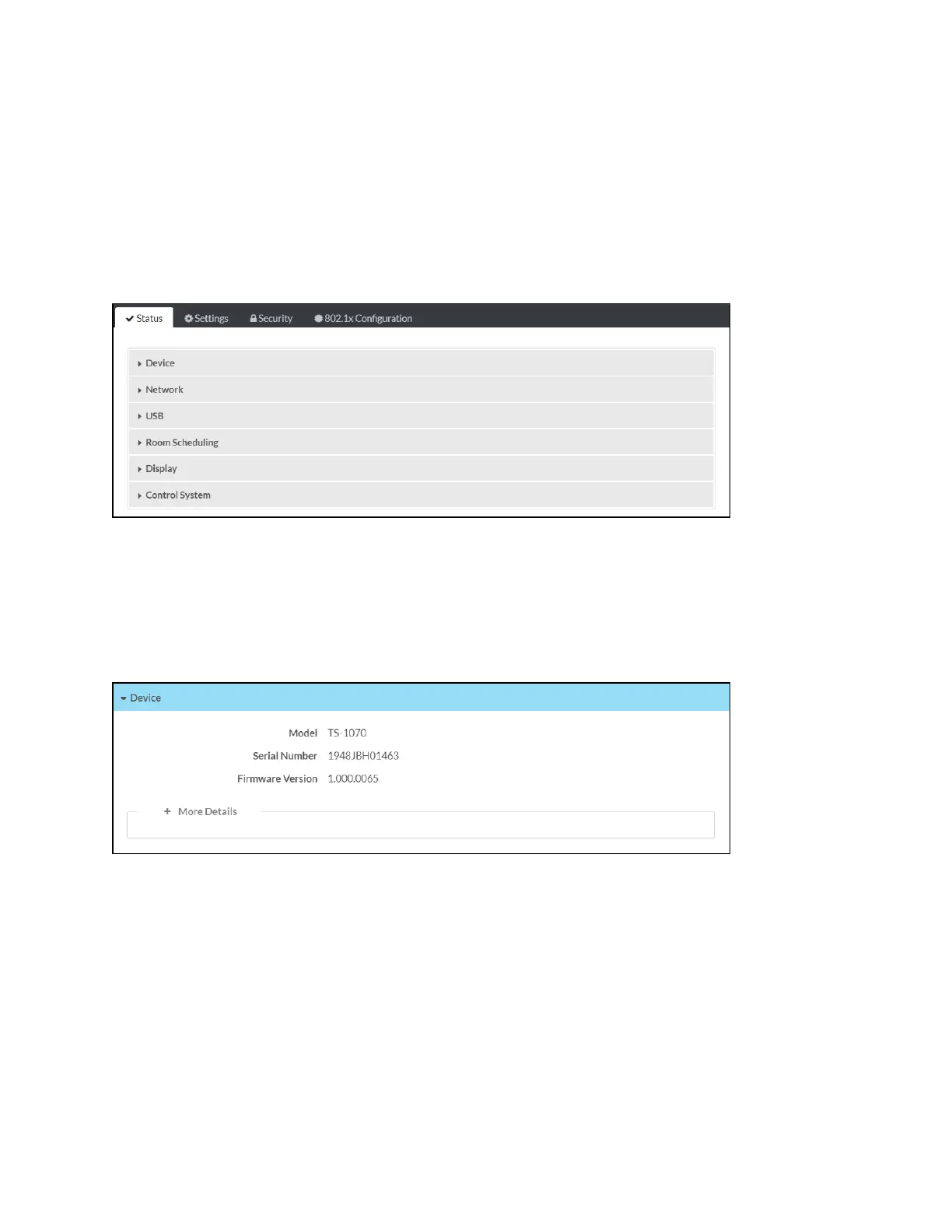

Status Tab Selections
Each selection is described in the sections that follow.
Device
Click Device to view general device information.
Status Tab - Device
The following Device information is displayed:
l Model: The touch screen model name
l Serial Number: The touch screen serial number
l Firmware Version: The firmware version loaded onto the touch screen
Click + More details at the bottom of the Device tab to display an expanded section that shows
additional touch screen information. If + More Details is selected, click - Less details to collapse
the section.
