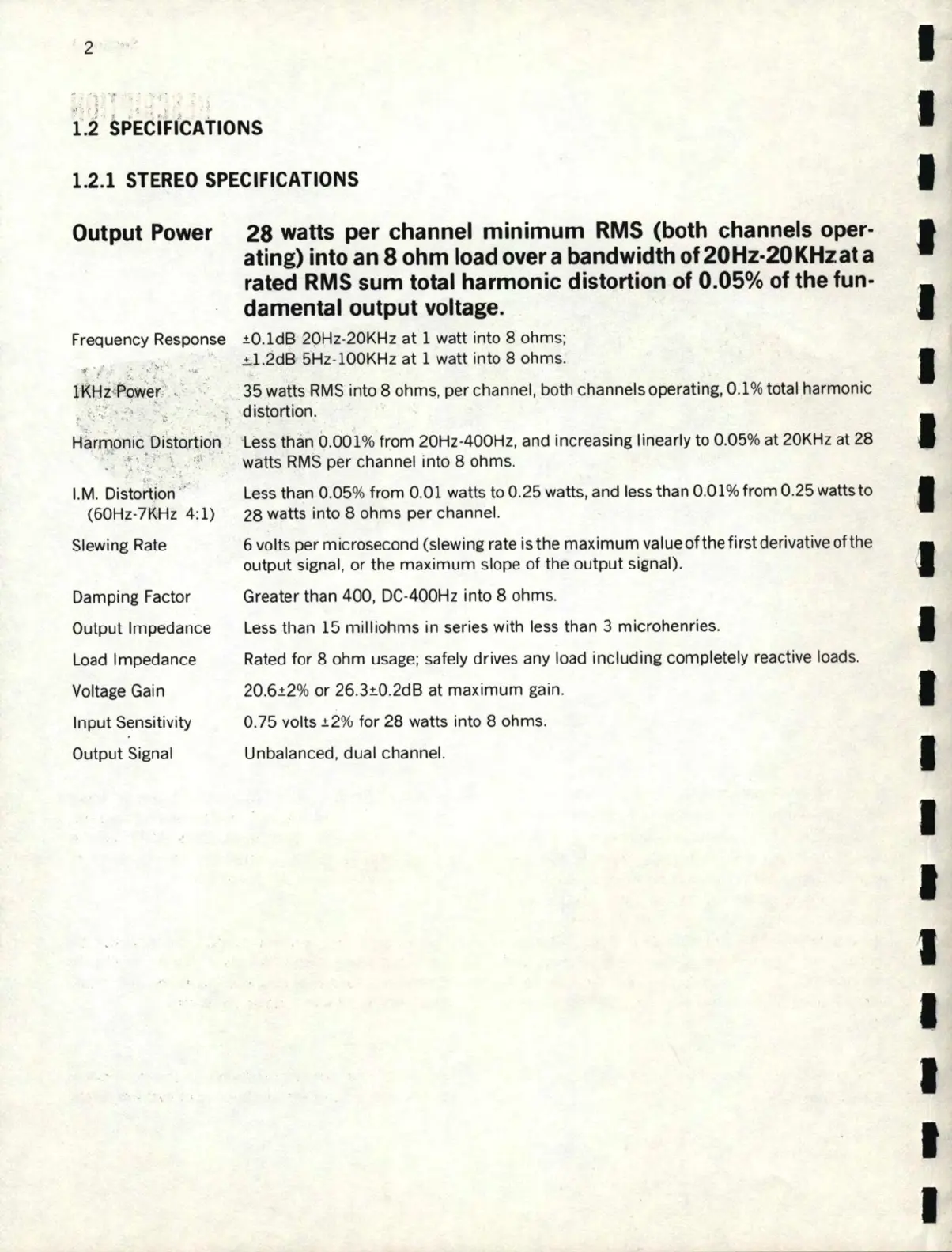

1.2
SPECIFICATIONS
1.2.1
STEREO
SPECIFICATIONS
I
I
I
Output Power
28
watts per channel mm1mum RMS (both channels oper- I
ating) into an 8 ohm load over a bandwidth of
20Hz-20
KHz at a
rated RMS sum total harmonic distortion of
0.05
% of the fun- I
damental output voltage.
Frequency Response :t.0.ldB 20Hz-20KHz
at
1 watt into 8 ohms;
.t.J.2d8 5Hz-100KHz at 1 watt into 8
ohms
.
..
lKHz
<Power ,
35
watts
RMS
into 8
ohms
, per channel, both channels operating, 0.1 % total harmonic
distortion.
Harmonic Distortion Less than 0.
001
% from 20Hz-400Hz, and increasing linearly
to
0.05%
at
20KHz at 28
watts
RMS
per channel into 8 ohms.
I.M. Distortion ·
(60Hz-7KHz 4:1)
Slewing
Rate
Damping Factor
Le
ss
than
0.05
%
from
0.01 watts
to
0.25 watts, and less than 0.01 % from 0.25 watts to
28 watts into 8
ohms
per channel.
6 volts per microsecond (slewing rate is
the
maximum
value
of
the
first
derivative of the
output
signal,
or
the
maximum
slope
of
the outp
ut
signal).
Greater than 400,
DC
-400Hz
into
8
ohms
.
Output Impedance Less than
15
milliohms in series with less than 3 microhenries.
Load Impedance
Voltage Gain
Input Sensitivity
Output Signal
Rated for 8 ohm usage; safely drives any load including completely reactive loads.
20.6:t.2%
or
26
.3:t.
0.2
d8
at
maximum gain.
0.75
volts .:2% for
28
watts into 8 ohms.
Unbalanced, dual channel.
