4

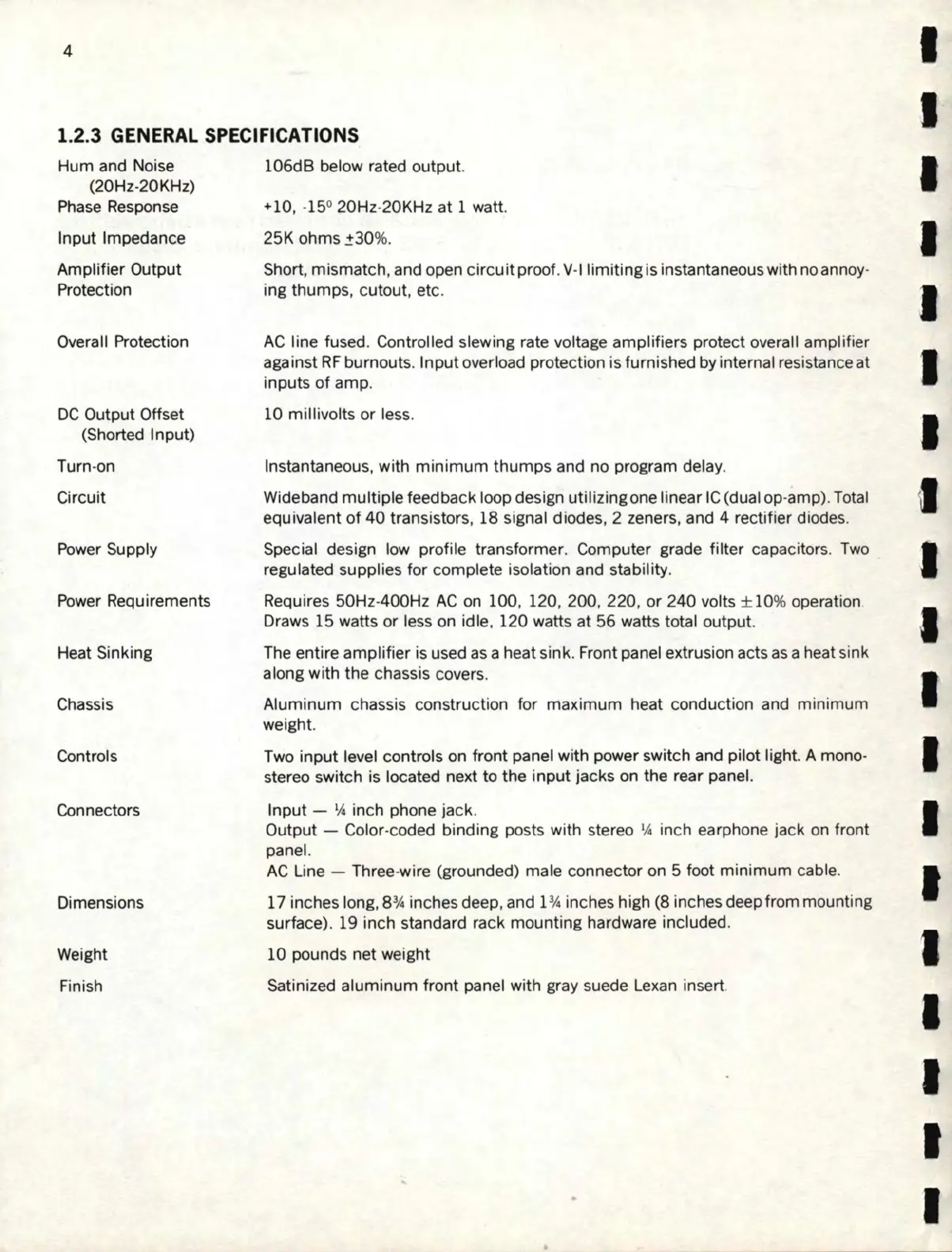

1.2.3
GENERAL
SPECIFICATIONS
Hum and Noise
(20Hz-20KHz)
Phase
Response
Input Impedance
Amplifier Output
Protection
Overall Protection
DC
Output Offset
(Shorted Input)
Turn-on
Circuit
Power
Supply
Power
Requirements
Heat Sinking
Chassis
Controls
Connectors
Dimensions
Weight
Finish
106dB below rated output.
+10, -15° 20Hz-20KHz
at
1 watt.
25K ohms
±30
%.
Short, mismatch, and open
circuit
proof. V-1
limiting
is instantaneous with
no
annoy-
ing
thumps, cutout, etc.
AC
line fused. Controlled slewing rate voltage amplifiers protect overall amplifier
against
RF
burnouts.
Input
overload protection is furnished by internal resistance at
inputs
of
amp.
10 millivolts
or
less.
Instantaneous, with
minimum
thumps
and no program delay.
Wideband
multiple
feedback loop design utilizing one linear
IC
(dual
op
-amp). Total
equivalent
of
40
transistors, 18 signal diodes, 2 zeners, and 4 rectifier diodes.
Special design low profile transformer. Computer grade filter capacitors.
Two
regulated supplies for complete isolation and stability.
Requires 50Hz-400Hz
AC
on 100, 120, 200, 220,
or
240
volts ± 10% operation
Draws
15
watts
or
less on idle, 120 watts
at
56
watts total output.
The entire amplifier is used as a heat sink. Front panel extrusion acts as a heat sink
along with
the
chassis covers.
Aluminum chassis construction for maximum heat conduction and minimum
weight.
Two
input
level controls on front panel with power switch and pil
ot
light. A mono-
stereo switch is located next
to
the
input
jacks on the rear panel.
Input -
1/4
inch phone jack.
Output - Color-coded binding posts with stereo
1/4
inch earphone jack on front
panel.
AC
Line - Three-wire (grounded) male connector on 5 foot
minimum
cable.
17 inches long, 8¾ inches deep, and 1
¾ inches high (8 inches deep from mounting
surface). 19 inch standard rack mounting hardware included.
10 pounds net weight
Satinized aluminum front panel with gray suede Lexan insert.
•
