CS RV50 - RV50 Mounting Kit (Pn 32252); Mounting the RV50 Flat on the Backplate; RV50 Mounting Options

RV50 Sierra Wireless AirLink® 4G LTE Cellular Modem
14
• Power Supply — see Section 7.4.2, Modem Power Connections
(p. 17).
• Environmental Enclosure — ENC10/12, ENC12/14, or ENC16/18
7.3 RV50 Mounting Kit (pn 32252)

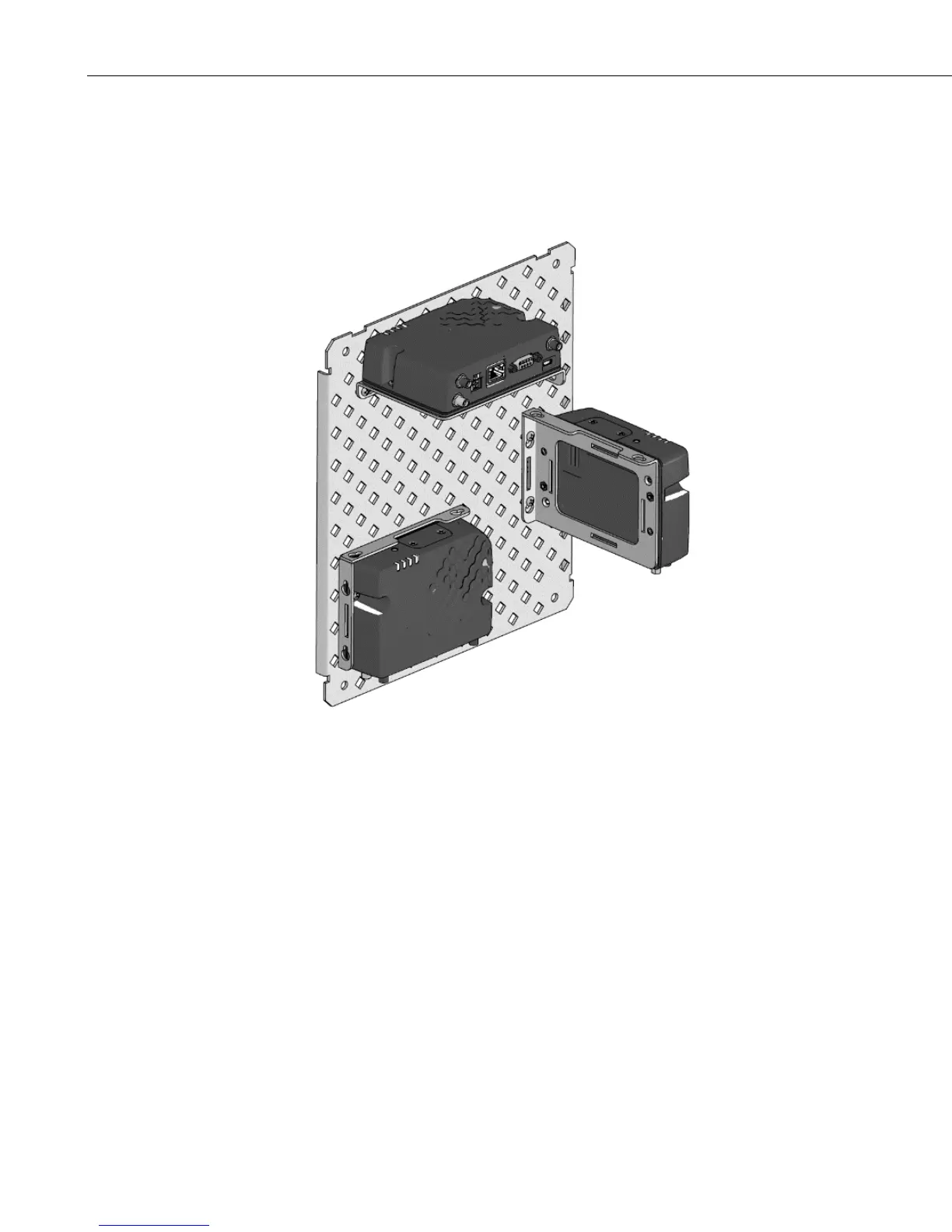

FIGURE 7-2. RV50 Mounting Options
7.3.1 Mounting the RV50 Flat on the Backplate
Use the two included flat-head Phillips screws to mount the bracket to the
backplate first. Then use two of the included pan-head Phillips screws to
mount the RV50 to the bracket. See FIGURE 7-3.
