RV50 Sierra Wireless AirLink® 4G LTE Cellular Modem
18
7.5 ACEmanager and Template Files
Section 4, QuickStart (p. 2), describes how to set up the RV50 in serial server
mode using ACEmanager. ACEmanager along with template files can be used
to set up the RV50 in serial server mode or PPP.
ACEmanager is accessed via a web browser. For initial setup or
troubleshooting with a direct (cabled) connection, connect a standard Ethernet
(RJ45) cable between the Ethernet port on the PC and that on the modem. Type
http://192.168.13.31:9191 into a web browser.
Once the modem is provisioned on the network, it may be accessed over the air
by typing http:// followed by the IP address (dynamic or static) of the modem,
followed by the port :9191.

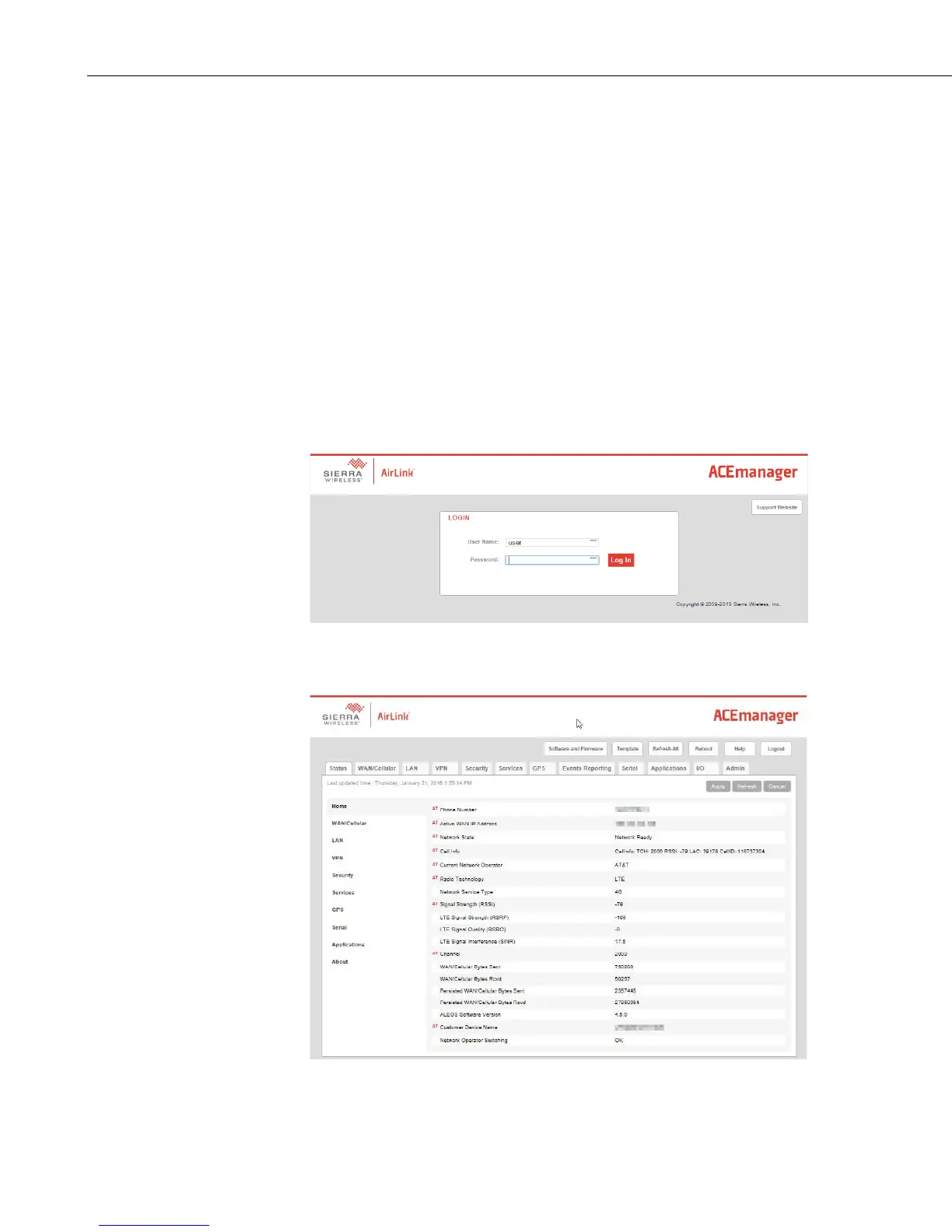

The first screen is a login (shown below). The default password is 12345 and it
is strongly recommended to leave it as the default. If security is of concern,
contact a Campbell Scientific application engineer to discuss options.
After entering the password and pressing enter (or clicking Log In), the
following status screen is displayed:
