CSZ ZPH 32 - Figure 7. Chamber Interior

GENERAL DESCRIPTION
Page 2-10
PLENUM COVER REMOVED
PLENUM COVER ON
Chamber Light
Heaters
Fans
Evaporator Coil
Dehumidifi cation
Coil
Solid State
Humidity
Sensor
Air Temperature Sensor
Plenum
Wet Coil Pan
Product
Sensor

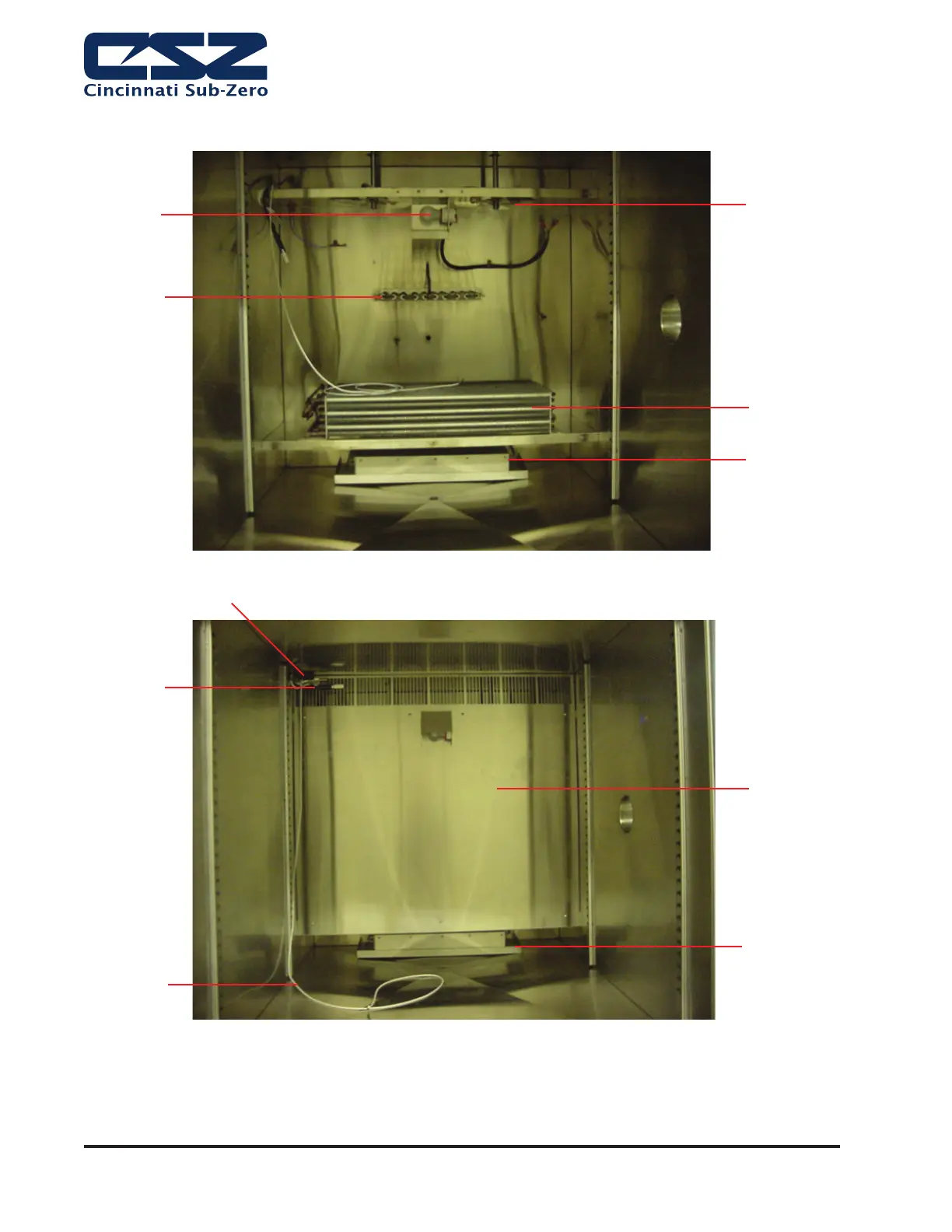

Figure 7. Chamber Interior
Note: CSZ is continuously upgrading the components used
in its equipment. Consequently, the physical appearance of
certain components may vary from that shown.
