OPERATION
Page 4-11
Figure 4. Controller Panel
START-UP INSTRUCTION SUMMARY - REMOTE SENSOR (ZPRC UNITS)
Enabling the “RC Blower” Event energizes the remote conditioning blower, delivering conditioned air to the
remote hood. Temperature (and optional humidity) control is automatically transitioned from local in the
chamber’s plenum to remote at the hood.

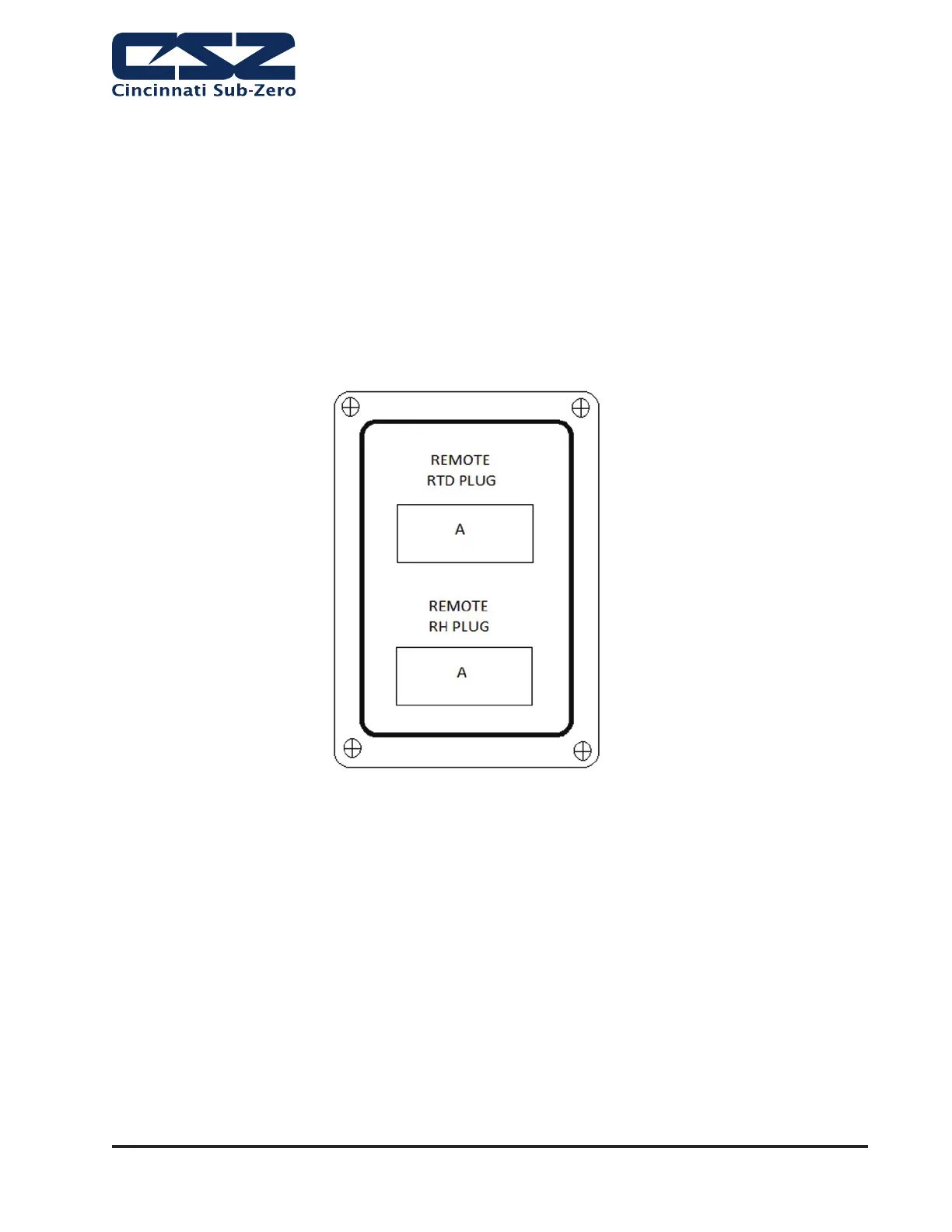

Connections for both the remote temperature and humidity sensors are located on the Remote Sensors
interface plate at the rear of unit.
Note: CSZ is continuously upgrading the components used
in its equipment. Consequently, the physical appearance of
certain components may vary from that shown.
