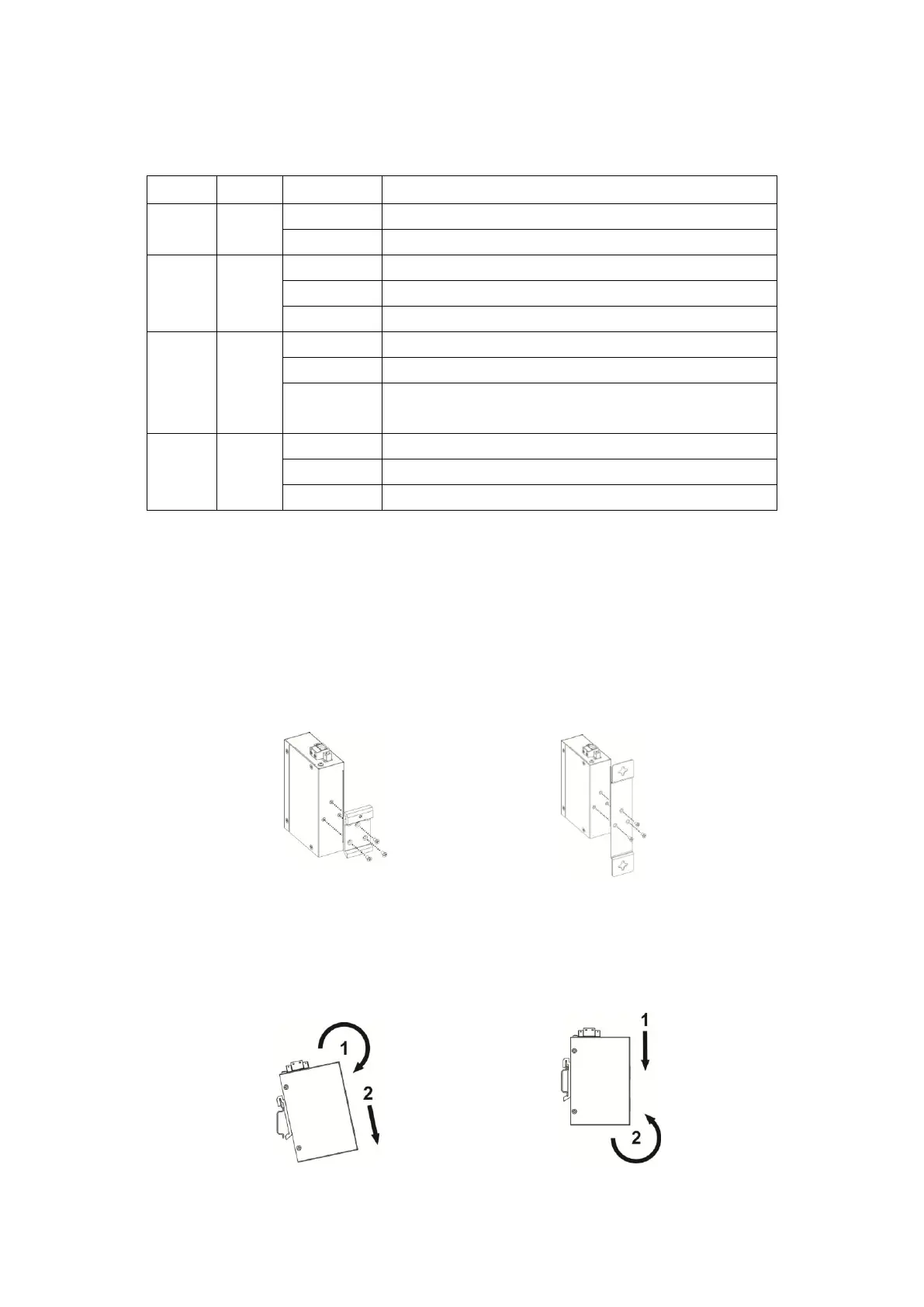

LED Indicators
LED
Color
Status
Description
PWR
Green
On
Lit if power is connected and active.
Off
Power is not connected.
1000
Yellow
On
The connected LAN speed is 1000M.
Blinking
Blinking when there is Ethernet traffic.
Off
The LAN link is down or LAN speed is 100M.
100
Green
On
The connected LAN speed is 100M.
Blinking
Blinking when there is Ethernet traffic.
Off
The LAN link is down or LAN speed is
1000M.
Fiber
Green
On
Fiber link is up and active.
Blinking
Blinking when there is Ethernet traffic.
Off
Fiber link is down.
Installation
IMC-1000C(-E) & IMC-1000CS(-E) can be installed in DIN rail or
mounted in wall (optional). Hardware brackets for DIN rail installation
are provided with the device. However, wall-mounting brackets are not
provided. If you need wall-mounting installation kit, please contact your
sales representative. When installing the DIN rail and wall-mounting
bracket, be sure to correctly align the orientation pin.
Figure 6. DIN Rail Figure 7. Wall Mounting
The IMC-1000C(-E) & IMC-1000CS(-E) with DIN Rail bracket have a
steel spring in the upper rail of the bracket. This spring is compressed for
mounting and un-mounting by applying downward force.
Figure 8. Mounting Figure 9. Un-mounting
