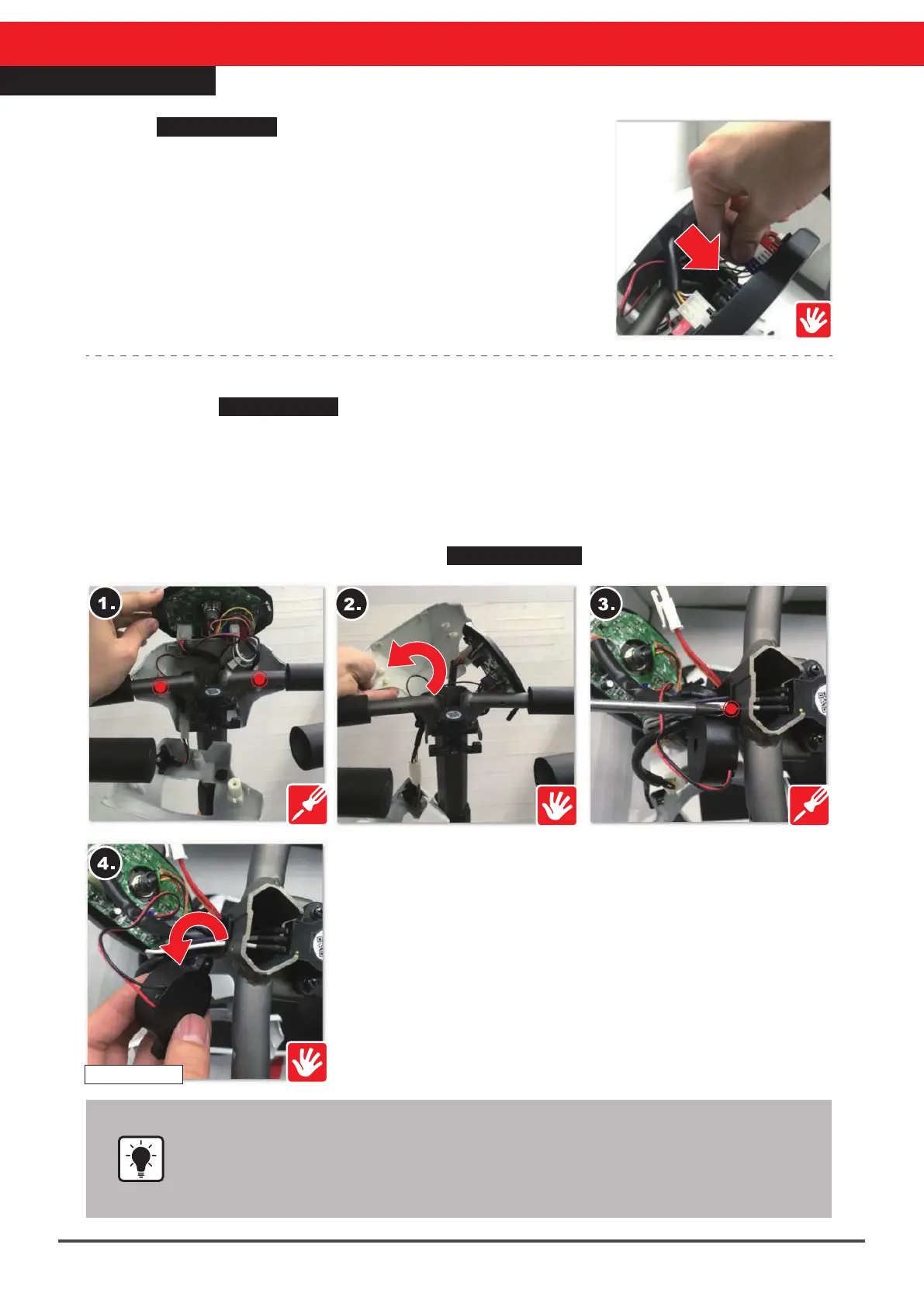

Buzzer Repair :
•Step 1.Use one hand to remove the screws and the other hand to hold
the steering head front cover to prevent it from falling.
•Step 4.Use one hand to remove the screws and one hand to hold the
buzzer to prevent it from falling.
Refer to SERVICE-1
Steering Cover Repair steps as follows :
※Find the buzzer connector (figure on the right)
※Re-connect the buzzer connector (figure on the right)
※If it is not effective, go to “Buzzer Replacement” below.
Buzzer Replacement :
Please refer to SERVICE-1 Steering Cover Repair steps first, and then :
1.Remove the screws (16mm, 2pcs) on the handle and steering head front cover
2.Remove the steering head front cover and set it aside carefully
3.Remove the buzzer and handle screw (12mm, 1pc)
4.Take out the buzzer, and replace it with a new one.
※After the replacement of parts or re-installation, please follow the exact reverse sequence
for reassembly.
※If buzzer function is not restored, go to SERVICE-1-1 Top Control Panel Repair.
