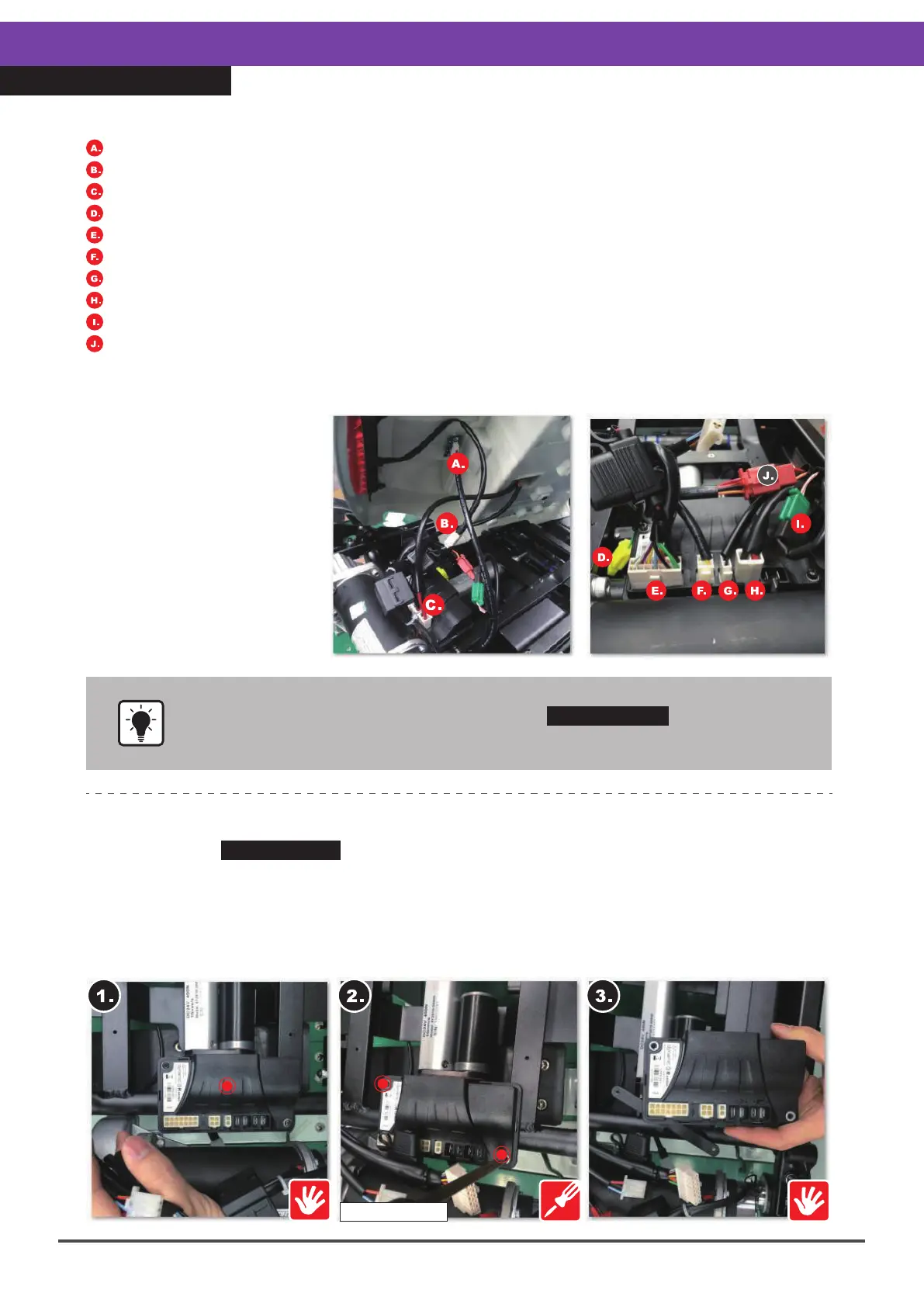

SERVICE - 11 - 1
DR Controller Repair
•The connectors underneath the rear top cover can be checked without
removing the cover. Refer to Step 5 of SERVICE-11 Rear Top Cover
Repair, to ensure the connections are made (for connector instructions,
please refer to the above connector codes).
Picture showing rear top cover circuit connectors.
Rear top cover - folding board control connector
Rear top cover - taillight connector
Rear top cover - battery power connector
Remote control board - folding suppression connector
Main cable connector
Micro switch connector
Electromagnetic brake connector
Motor power connector
Linear actuator - power connector
Remote control board - power connector
※If the connections are good (the wires are undamaged and not loose), but the action
still fails, refer to the following DR Controller Replacement.
DR Controller Replacement :
Please refer to SERVICE-11 Rear Top Cover Repair for removal, then perform :
1.Unplug all the connectors on the controller.
2.Remove the two screws on the DR controller to separate it from the frame.
3.Take the DR controller out.
※When reassembling, please follow the exact reverse sequence of these steps.
※After re-installation check to make sure all the connections are correct and secure.
