Electromagnetic Brake Repair :
•When reinstalling the electromagnetic brake device, make sure that the
lever is in the right place, to the rear, before fastening the four screws that
hold it in place.
•Step 3. When removing the electromagnetic brake, be careful not to pull,
or put any force, on the motor cable which would disturb the connections.
Please follow the steps in SERVICE-13-4 Motor Repair , and then:

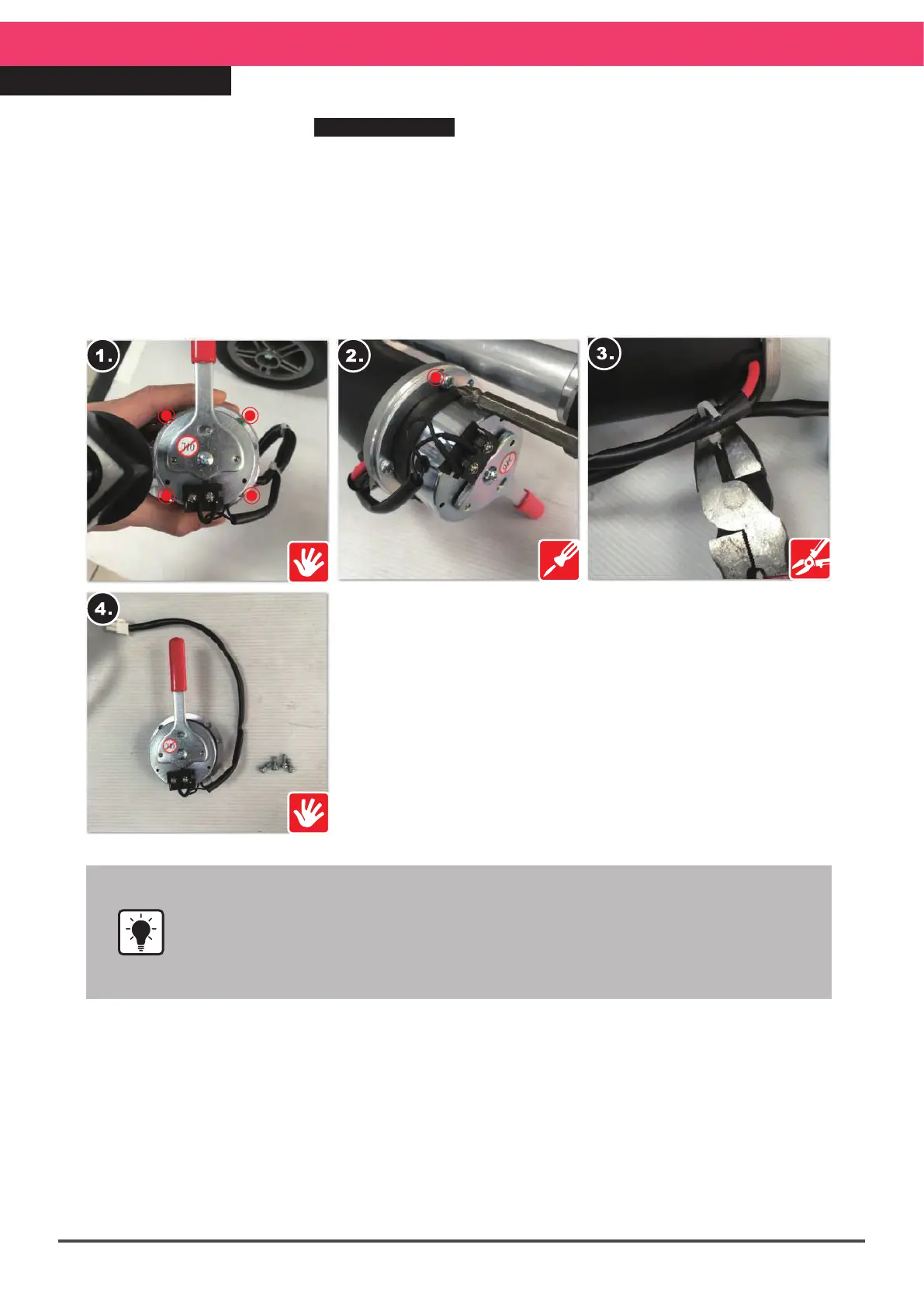

1.Remove the motor, and locate the four screws holding the electromagnetic braking device
to the motor.
2.Use a cross-head screw driver to remove the screws and separate the device from the
motor.
3.After it has been taken off, cut and remove the cable tie holding the brake cable to the
motor cable.
4.Take off the electromagnetic braking device.
※When replacing the unit, follow the sequence of steps in reverse.
