Ctouch Canvas User Manual

CTOUCH Canvas
13
ctouch.eu
C
B

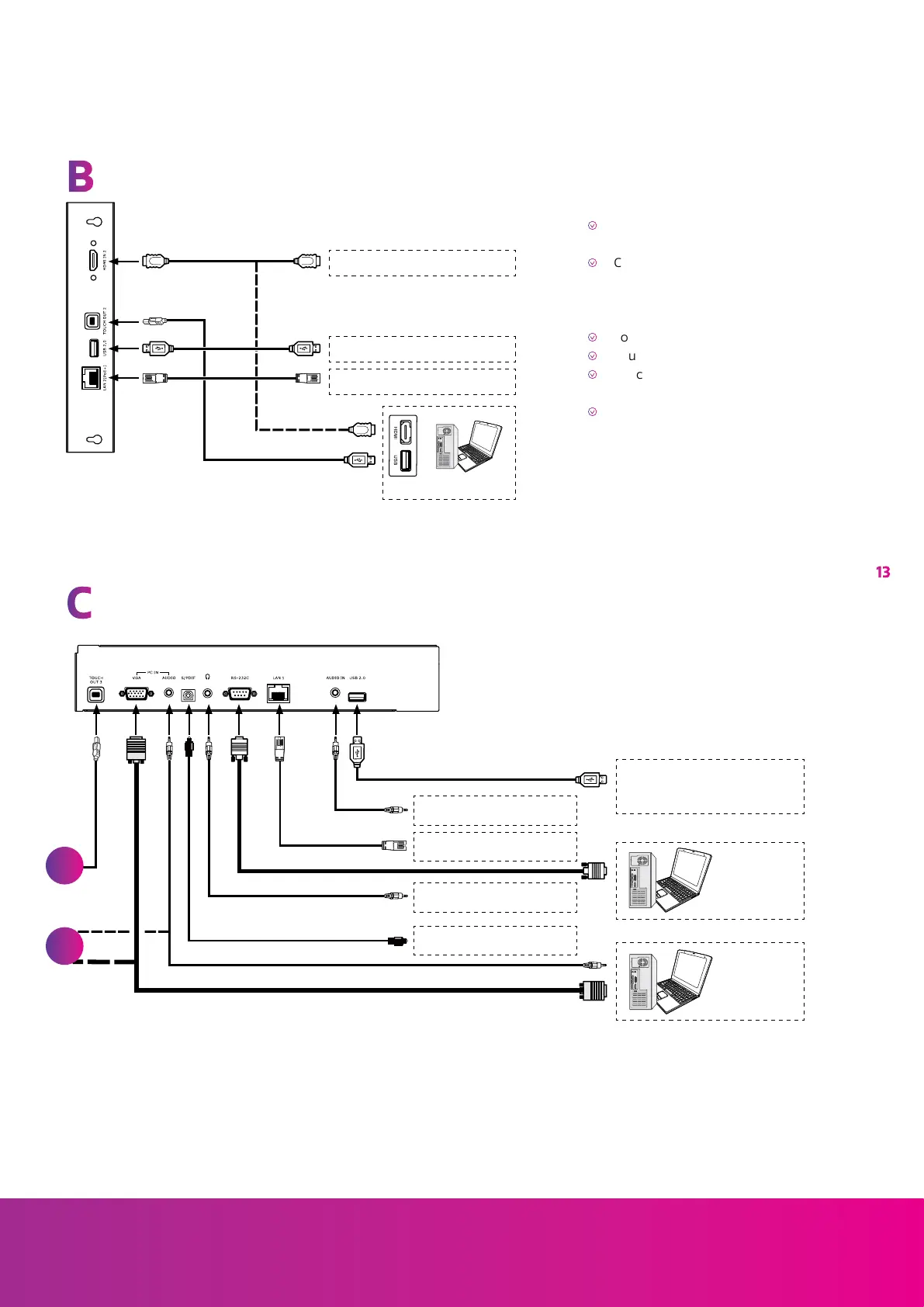

e Connect TOUCH OUT with USB cable to
PC USB port.
e Connect PC with VGA cable, HDMI cable
or DP cable. Please choose the proper
method of connection based on your
device.(Only for PC, HDMI, DP signal)
e Touch out 1 corresponds to the HDMI 1.
e Touch out 2 corresponds to the HDMI 2.
e Touch out 3 corresponds to the HDMI 3,
DP or VGA.
e Note: After installation of the driver, it
can control the external computer
by native touch control.
PC, etc.
Network connection
Network
cable
USB devices
HDMI devices
USB cable
HDMI cable
USB cable
USB cable
USB flash disk (UFD)
(For software upgrades)
Serial port cable
Network connection
Digital sound system
Audio input devices
PC, etc.
VGA devices
S/PDIF cable
Headphone cable
PC, etc.
Network cable
Audio output devices
Audio cable
VGA cable
Audio cable
A
B

Ctouch Canvas Specifications

General

Panel type	TFT
Color depth	8 bit
Pixel pitch	0.42975 x 0.42975 mm
Screen shape	Flat
Response time	8 ms
Backlight type	Direct LED
Display diagonal	74.54 \
Surface hardness	Mhos 7
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display glass type	Tempered glass
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	189.3 cm
Number of simultaneous touchpoints	20
Certification	WEEE
Product color	Black, Grey
Glass thickness	4 mm
Cables included	AC, HDMI, USB, USB Type-C
Audio input	Mini Jack
USB hub version	3.2 Gen 2 (3.1 Gen 2)
DisplayPort version	1.2
HDMI ports quantity	3
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	5
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 / 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W
Panel mounting interface	800 x 600 mm
On Screen Display (OSD) languages	DEU, DUT, ENG
Package depth	225 mm
Package width	1873 mm
Package height	1186 mm
Package weight	72600 g
Placement supported	Horizontal
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Built-in camera	No
RMS rated power	80 W
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth (without stand)	104 mm
Width (without stand)	1727 mm
Height (without stand)	1020 mm
Weight (without stand)	61700 g
