Ctouch Canvas User Manual

CTOUCH Canvas
9
ctouch.eu
VESA MOUNT INSTALLATION
1. Contact a professional for assistance when mounting the CTOUCH interactive display.
CTOUCH is not responsible for any damage to the product or injury to yourself, if you mount the
CTOUCH interactive display on your own.
2. Do not mount the CTOUCH interactive display while the CTOUCH interactive display is turned on.
It may cause personal injury due to electric shock.
3. Use standard M8 x 25mm screws (4 pieces) to mount the CTOUCH interactive display.
Warning!
•
Always be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause
equipment to fall, resulting in injury and product damage. Any damage resulting from not having
a professional installer mount your unit will void your warranty.
•
When any optional accessories or brackets are used, always ensure that the instructions
provided are followed fully.
•
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which
typically give off high heat and influence touch behavior.
•
Take care when fixing wall brackets to the wall. Wall mounted equipment shall not be grounded
by metal within the wall. Always ensure that there are no electrical cables or pipes in the wall
before hanging bracket.

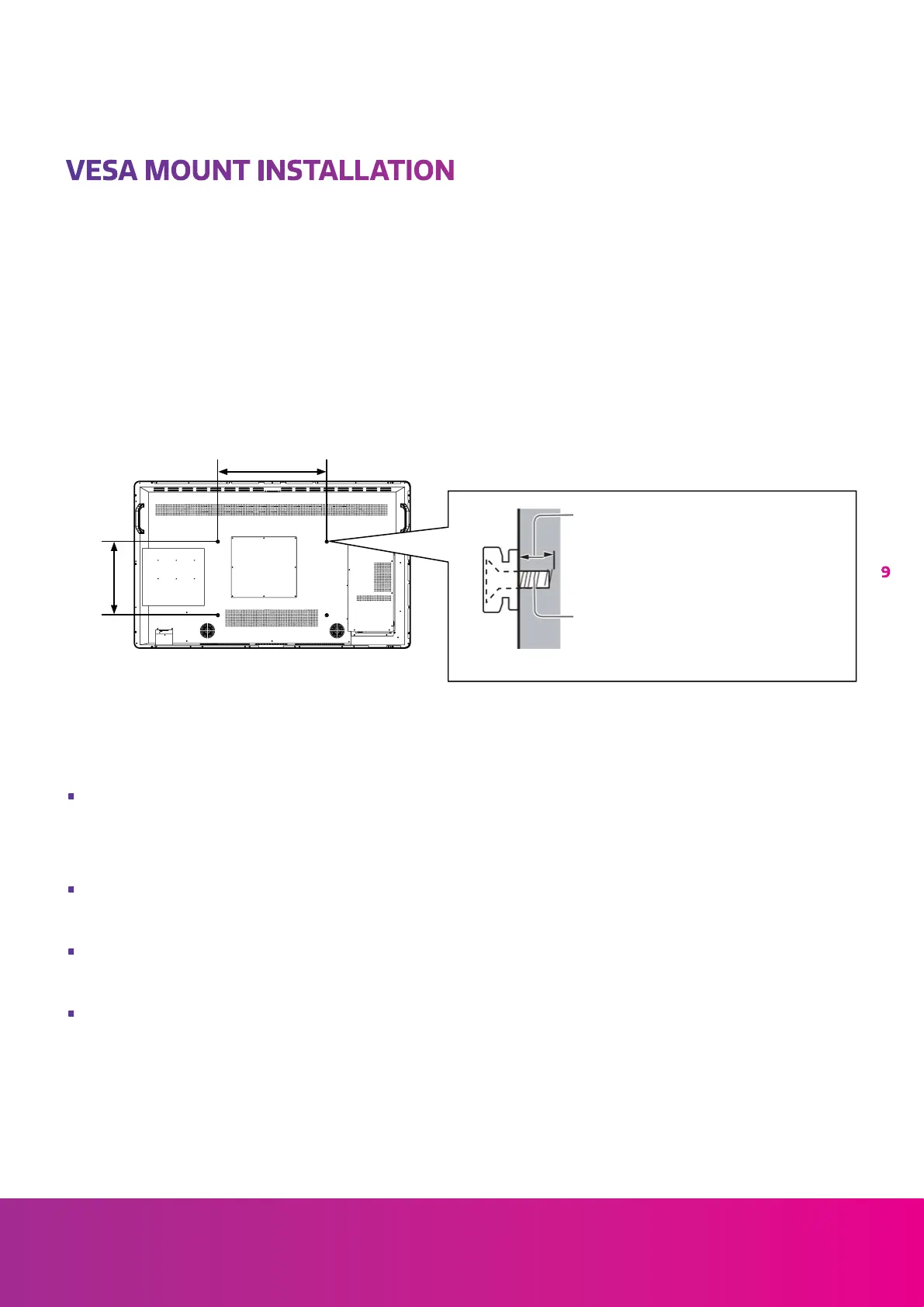

600mm (65")
400mm (55")
800mm (75"/86")
400mm (55"/65")
600mm (75"/86")
Depth of screw:
Minimum 22 mm
Maximum 25 mm
Screw for fixing the CTOUCH interactive
display onto the wall-hanging bracket.
(View from the side)

Ctouch Canvas Specifications

General

Panel type	TFT
Color depth	8 bit
Pixel pitch	0.42975 x 0.42975 mm
Screen shape	Flat
Response time	8 ms
Backlight type	Direct LED
Display diagonal	74.54 \
Surface hardness	Mhos 7
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display glass type	Tempered glass
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	189.3 cm
Number of simultaneous touchpoints	20
Certification	WEEE
Product color	Black, Grey
Glass thickness	4 mm
Cables included	AC, HDMI, USB, USB Type-C
Audio input	Mini Jack
USB hub version	3.2 Gen 2 (3.1 Gen 2)
DisplayPort version	1.2
HDMI ports quantity	3
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	5
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 / 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W
Panel mounting interface	800 x 600 mm
On Screen Display (OSD) languages	DEU, DUT, ENG
Package depth	225 mm
Package width	1873 mm
Package height	1186 mm
Package weight	72600 g
Placement supported	Horizontal
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Built-in camera	No
RMS rated power	80 W
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth (without stand)	104 mm
Width (without stand)	1727 mm
Height (without stand)	1020 mm
Weight (without stand)	61700 g
