CTX MyPool pH - Connection to Fluidra Connect; Option 1: Connection to Connect & Go Cabinet; Option 2: Connection to Connect Box

MyPool | pH · ORP
0000138876 rev. 1.3 EN
11
11. CONNECTION TO FLUIDRA CONNECT:
Option 1: Connection to Connnect & Go control cabinet

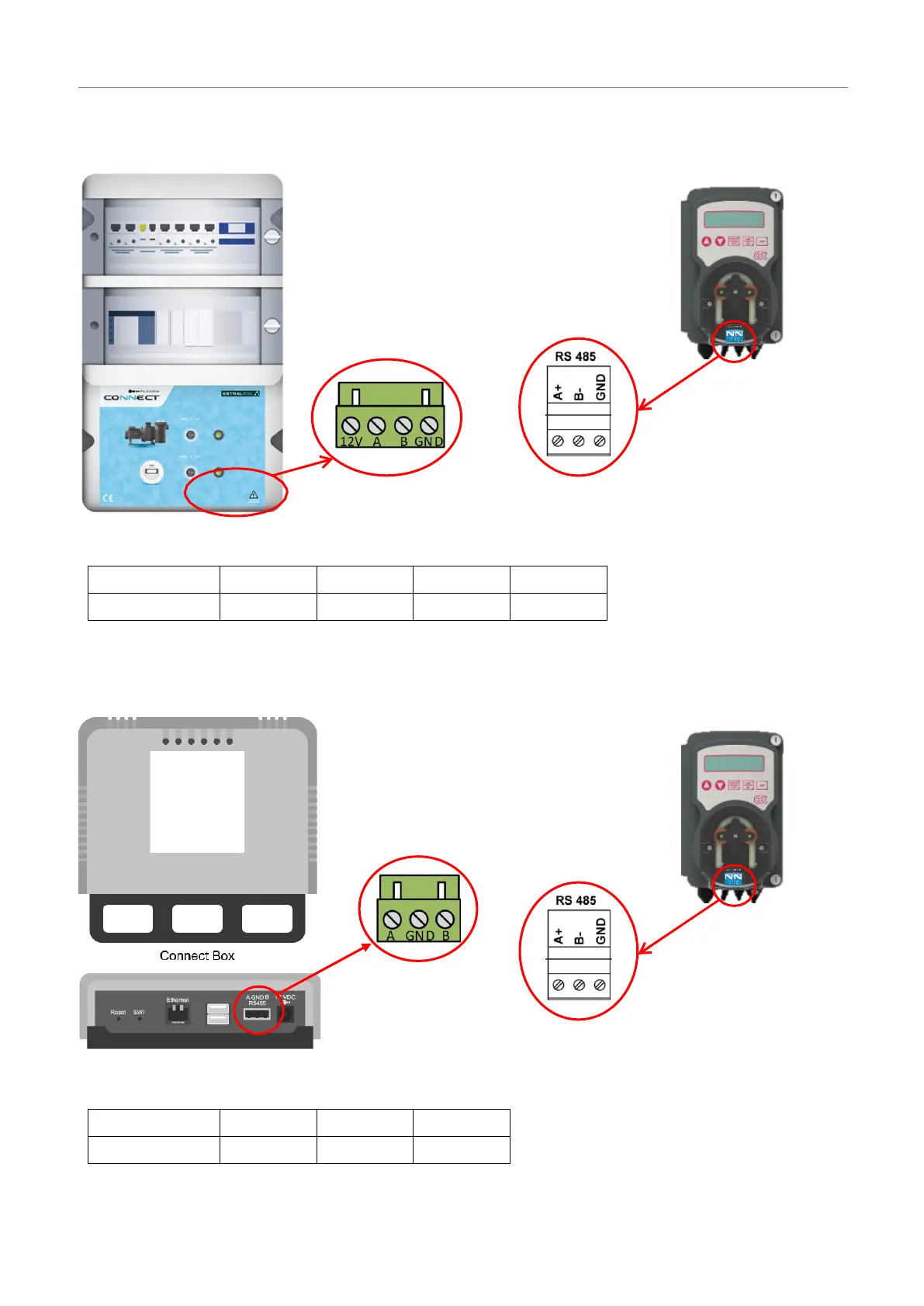

Connections:
Connect & Go
12V
A
B
GND
MyPool DOS
Not used
A+
B-
GND
3-wire general purpose modbus cable (not included)
Option 2: Connection to Connect Box
Connections:
Connect & Go
A
B
GND
MyPool DOS
A+
B-
GND
3-wire general purpose modbus cable (not included)
