3. ELECTRICAL CONNECTIONS
Connect the power supply cable to the mains and the servocontrol pre-wired cable to the auxiliary contact of the
filter box (230 Vca).

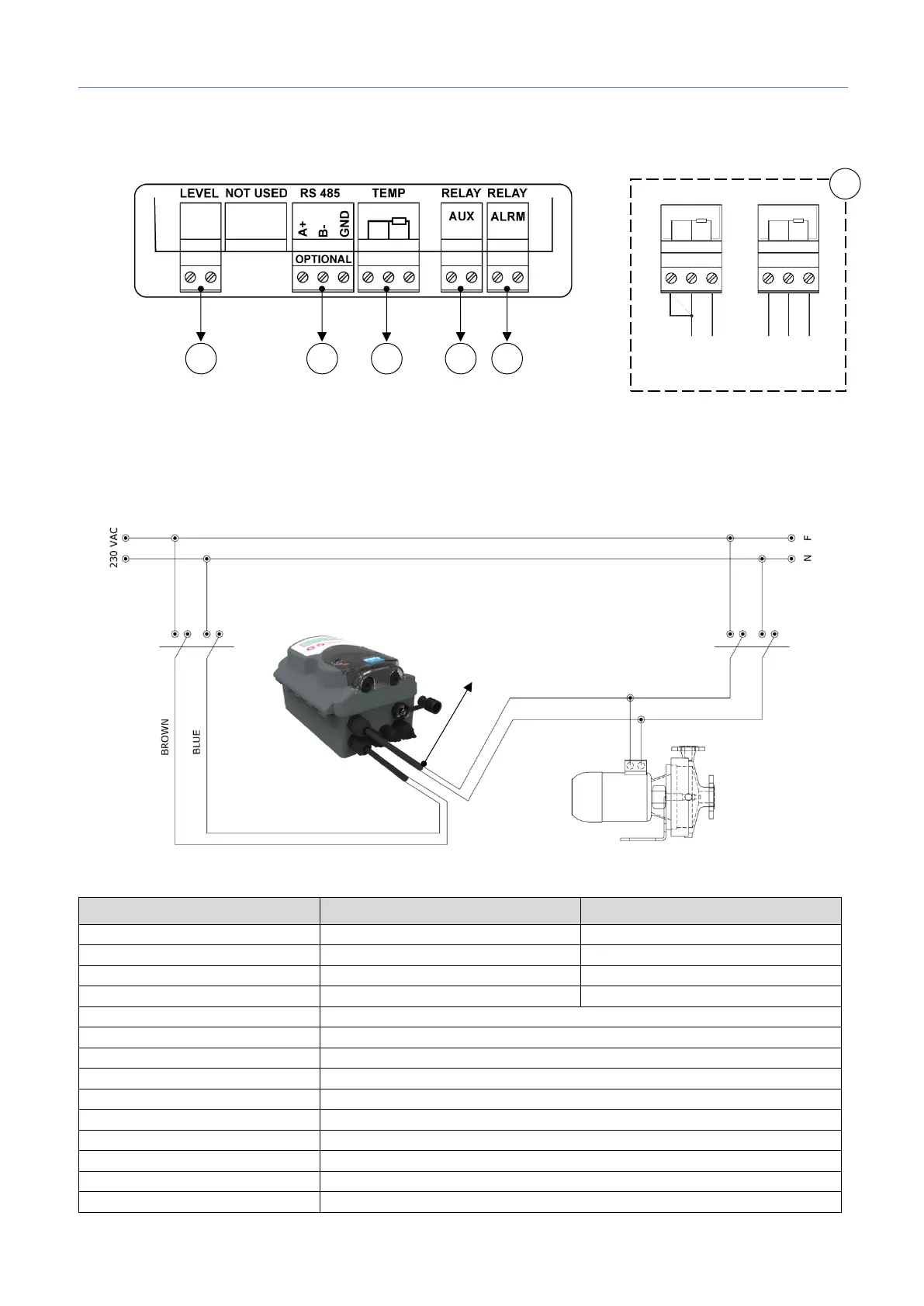

Wiring diagram:
1. Input Level Probe (Product Tank)
2. RS485 Serial Port (connection to Fluidra Connect pool automation, optional)
3. Input Temperature Probe (PT100 sensor not included)
4. Output Relay Auxiliary Pump (Dry contact, Relay 250 Vac 10 A)
5. Output Relay Alarm remote (Dry contact, Relay 250 Vac 10 A)
4. TECHNICAL SPECIFICATIONS
Specifications
MyPool pH
MyPool ORP
Measure Range
0.0 ÷ 14.0 pH
-99 ÷ 999 mV
Set Point Range
6.8 ÷ 7.8 pH
300 ÷ 900 mV
Accuracy
± 0.04 pH
± 2 mV
Resolution
0.01 pH
1 mV
Power supply
230 VAC 50/60 Hz
Insulation class
II
Consumption
10 W
Pump flow rate
1.6 l/h
Max. back-pressure
1.5 bar
Probe calibration
Automatic – Reference
Pump state
Proportional dosing
Peristaltic tube (ID x OD mm)
Norprene 4.8 x 8 mm
Dimensions (H x W x D mm)
185 x 124 x 110 mm
Weight
1.0 kg
1
2
4
5
Recirculating pump
230V
3
2 wires 3 wires
3
