22 ADJUSTMENT
ADJUSTMENT
Twotypesofchokecontrolare usedforFH601V,
FH641V,FH661V,FH661V,FH680V,FH721VModel
Engines.

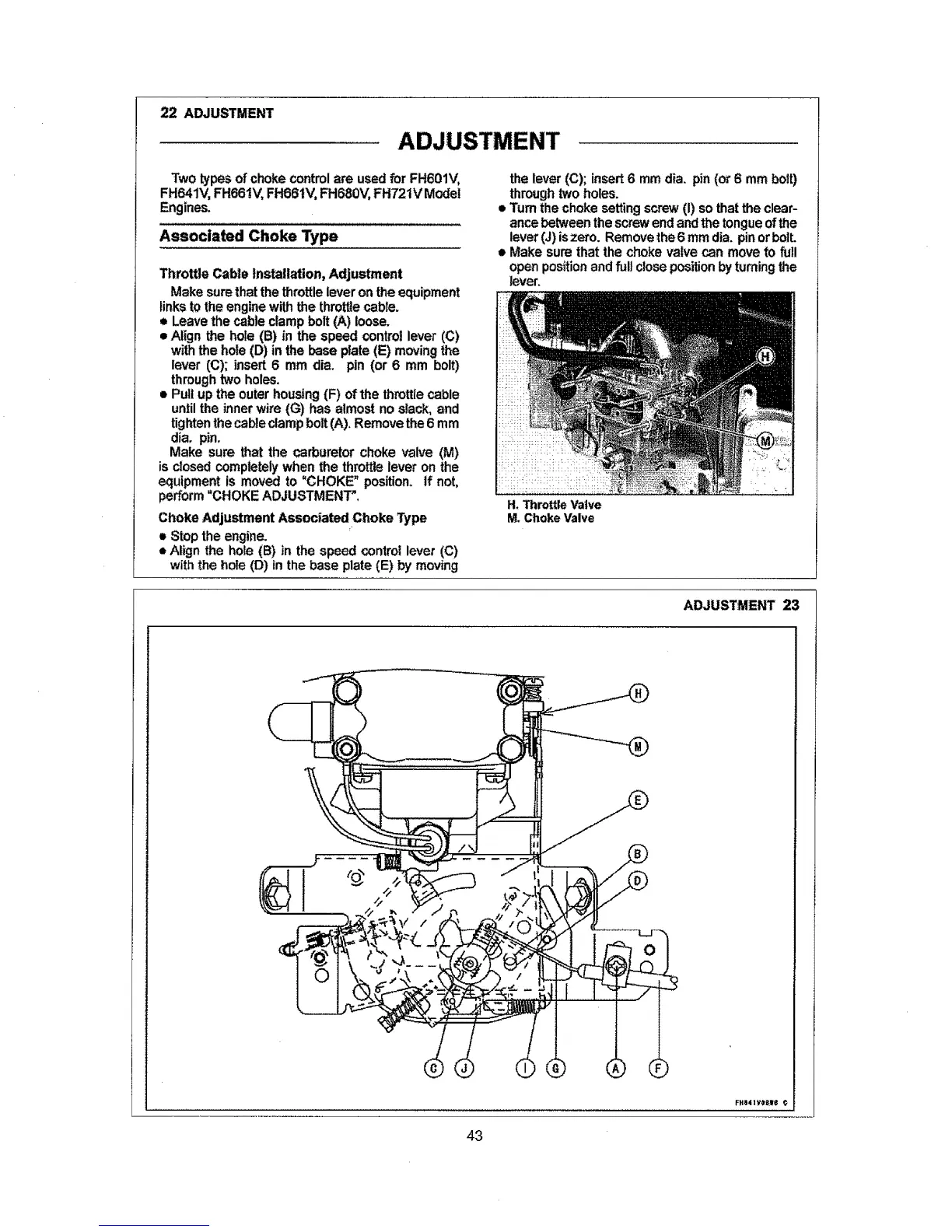

Associated Choke Type
Throttle Cable installation, Adjustment
Make surethat thethrottle lever onthe equipment
linksto the enginewith the throttlecabte.
• Leave the cable clamp bolt (A) loose°
• Align the hole (B) Jnthe speed control lever (C)
with the hole (D) in the base plate (E) moving the
lever ((3); insert 6 mm alia. pin (or 6 mm bolt)
throughtwo holes.
• Pull up the outer housing (F) of the throttlecable
untilthe inner wire (G) has almost noslack, and
tightenthecable clampbolt (A), Remove the 6 mm
dia, pin,
Make sure that the carburetor choke valve (M)
is closed completelywhen the throttle lever on the
equipment is moved to 'CHOKE" position_ If not,
perform"CHOKE ADJUSTMENT',
Choke Adjustment AssociatedrChOke Type
• Stop the engine.
• Align the hole (B) in the speed contro! lever (C)
withthe hole (D) in the base plate (E) by moving
the lever (C); insert 6 mm dia. pin(o_6 mm bolt)
throughtwo holes.
= Turn thechoke setting screw(I) so that the clear-
ance between the screw endand the tongueof the
lever(J) iszero. Removethe 6 mm dia. pinor boll
• Make sure that the choke valve can move to full
open positionand fullclose positionby turningthe
lever.
H, Throttle Va|ve
M. Choke Valve
ADJUSTMENT 23
