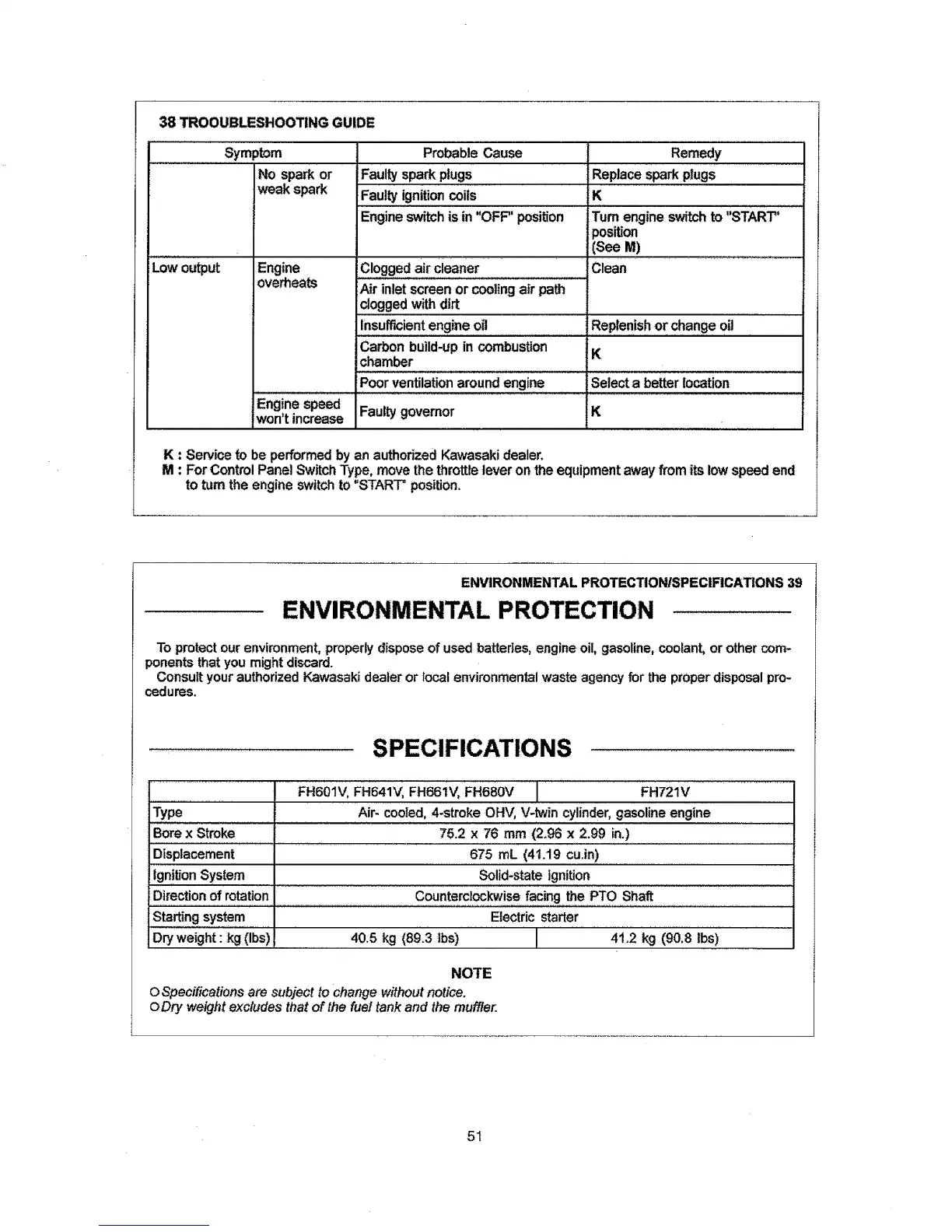

38TROOUBLESHOOTINGGUIDE
Symptom
Nosparkor
weakspark
Engine
overheats
ProbableCause
Faultysparkplugs
Faultyignitioncoils
Engineswitchisin "OFF" position
Clogged air cleaner
Remedy
Replace Spark plugs
K
Turn engine switch to "STAR'P'
position
(See M)
Clean
Air inlet screen or cooling air path
clogged with dirt
Insufficientengine oil Replenish or change oil
Carbon build-,upin combustion K
chamber
..........................................poor.ventilation around engine ........ Select a better !oration .............
Engine speed Faulty governor K
won't increase
K : Service to be performed by an authorized Kawasaki dealer.
M : For Control Panel Switch Type, move the throttle lever on the equipment away from its low speed end
to turn the engine switch to "START" position.
ENVIRONMENTAL PROTECTIOPJSPECIFICATIONS 39
ENVIRONMENTAL PROTECTION
To protect our environment, properlydispose of used batteries, engine oil, gasoline, coolant, or other com-
ponents that you might discard.
Consult your authorized Kawasaki dealer or local environmental waste agency for the proper disposal pro-
cedures.
SPECIFICATIONS
FH601V, FH641V, FH661V, FH680V FH721V ..........
TY'_'"'I,'I'",',,',,i,',,,'.................... Air- COOled,4-stroke OHV, V4wi n _y,linder gasoline engine
Bore x Stroke 75.2 x 76 mm (2.96 x 2.99 in.)
Displacement 675 mL (41.19 CUrin) ......
lgn.!tionSystem Solid-state ignition
Direction of rotation Counterc!ockwise facing the PTO Shaft
Sta_ing system Electric starter
Dry weight : ;kg(Ibs) 40.5 kg (89.3 lbs) 41.2 kg (90.8 lbs)
NOTE
0 Specifications are subject to change without notice.
o Dry weight excludes that of the fuel tank and the muffler
