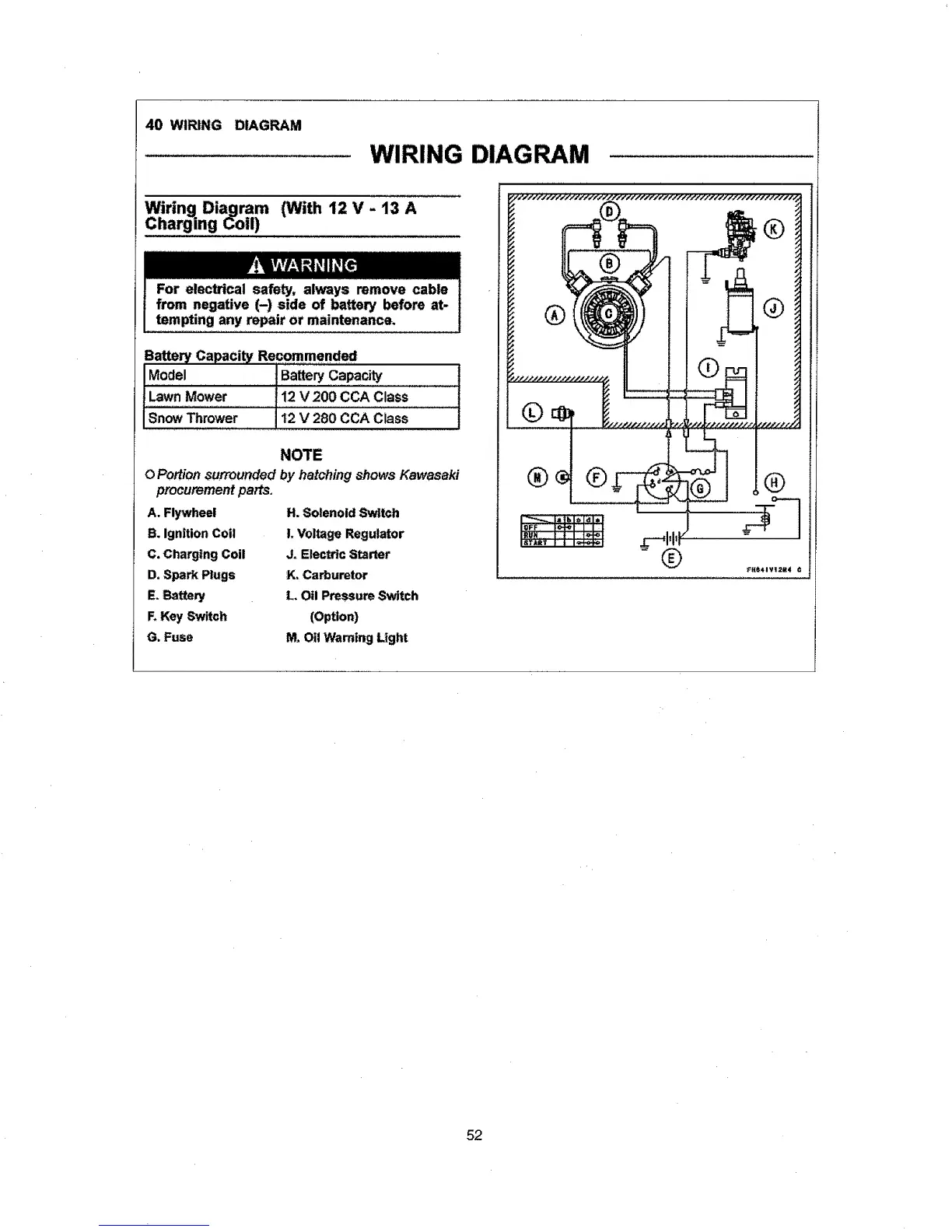

40 WIRING DIAGRAM
WIRING DIAGRAM
Wirin_ Diagram (With 12 V - 13 A
Charging Coil)
For electrical safety, always remove cable
from negative (-) side of battery before at-
tempting any repair or maintenance.
Battery Capacity Recommended
Battery Capacity
Lawn Mower 12 V 200 CCA Class
[Snow Thrower t2 V 280 CCA Class
NOTE
0 Portion surrounded by hatching shows Kawasaki
procurement parts,
A. Flywheel
B, ignition Coll
C. Charging Coil
D, Spark Plugs
E. _ttery
F. Key Switch
G. Fuse
H. Solenoid Switch
L Voltage Regulator
J. Electric Starter
K, Carburetor
L, Oil Pressure Switch
(Option)
M, Oil Warning Light
//_//_////J////////////////////////////////////////////////,
5
FK_41VI2M4
52
