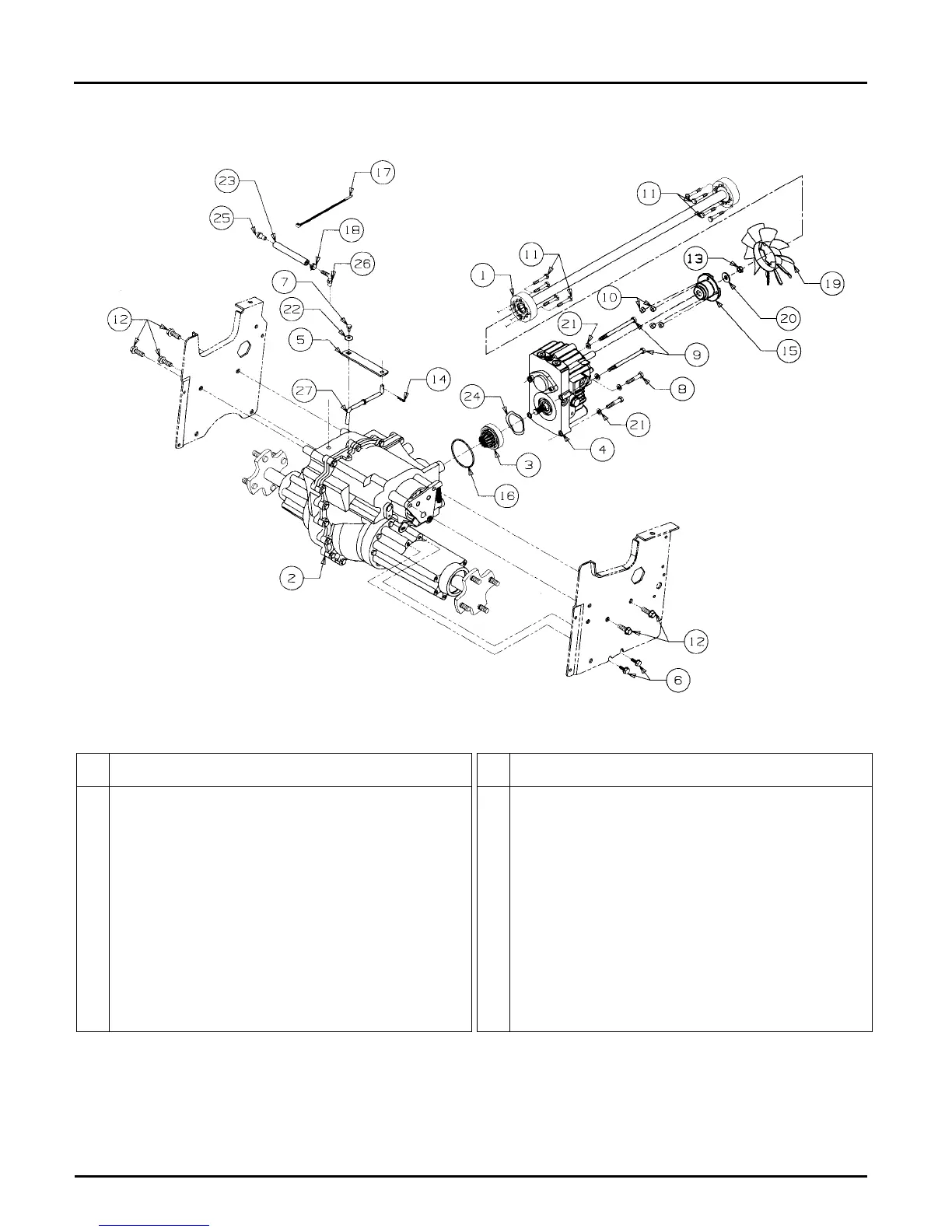

Cub Cadet 2146 Parts Manual

-7-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-0179 Shaft Assembly, Drive, 29.06 Lg 1
759-3764 Kit, Drive Barrel 2
2 618-3085A Transmission Assembly, Hydro 1
3 618-3088 Pinion Assembly, Input 1
4 618-3111 Pump, Hydrostatic 1
5 703-2568 Arm, Hydro Dump 1
6 710-1260 Screw, Hex Wsh Tap, 5/16-18 x .75 2
7 710-0642 Screw, Hex Wsh Tap, 1/4-20 x .75 1
8 710-3180 Screw, Hex Cap, 5/16-18 x 1.75 GR5 2
9 710-3195 Screw, Hex Cap, 5/16-18 x 4.5 GR5 2
10 748-3037 Nut, Fan, 1/4-20 4
11 710-3288 Screw, Hex Patch, 1/4-20 x 1.62 GR5 8
12 710-3290 Screw, Hex Wsh Tap, 3/8-16 x 1.25 5
13 712-0262 Nut, Hex Center Lock Jam, 3/8-24 1
14 714-0104 Pin, Internal Cotter, 5/16 Dia x 1.12 1
15 748-3099 Adapter, Pump 1
16 721-0261 O-Ring, 2.75 x .103 1
17 725-0157 Tie, Self-Clinch Cable 1
18 726-0205 Clamp, Hose 1
19 731-3297 Fan, 10 Blade Cooling 1
20 736-0105 Washer, Bell, .380 x .88 x .063 1
21 736-0119 Washer, Lock, 5/16 4
22 736-0270 Washer, Bell, .265 x .75 x .062 1
23 759-3330 Line, Fuel, 7in (10ft Bulk) 1
24 736-3099 Washer, Wave, 1.96 x 2.44 x .06 1
25 737-0296 Vent 1
26 737-0299 Fitting, Elbow 1
27 747-3228 Rod, Hydro Disengagement 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
DRIVE LINE

Cub Cadet 2146 Specifications

General

Transmission Type	Hydrostatic
Drive	2WD
Front Tires	16 x 6.5-8
Engine Type	4-cycle OHV
Fuel Capacity	11.4 l
Wheelbase	119 cm
Weight	229 kg
