Cub Cadet 7530

5 Transmission
67
2 Disassembly of Transmission Control
Refer to 7532 transmission for disassembly of PTO lever and P/C control.

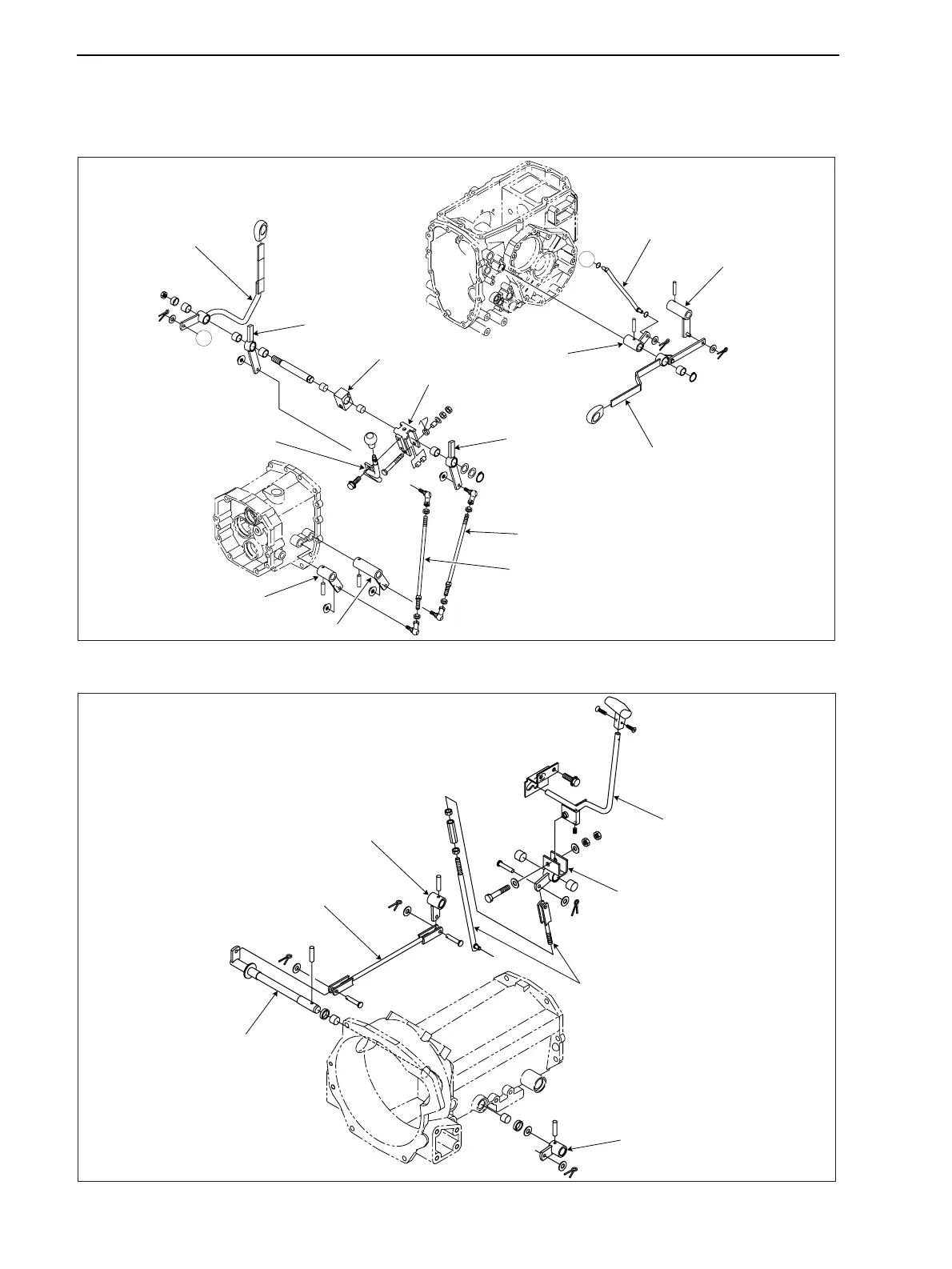

1. Disassemble the main gearing lever, 4WD control, and sub gearing control.
2. Disassemble the shuttle control.
Mainshift(1to2)rod
Rangeshiftlever
Mainshiftlever
Arm
Crank
Boss
Rangeshiftlink
Rangeshiftrod
4wdlever
4WDlink
Arm
Mainshift(3to4)rod
Mainshift(1to2)link
Mainshift(3to4)link
A
A
GZ3W24-043
Shuttlerod
Shuttleshaft
Shuttlelink
Shuttlelever
Rod
Shuttlearm
Shuttlelink
A
A
GZ3W24-044
