3. Disassemble the cylinder assembly.
8.3 Assembly and Installation of
Steering
Follow the procedure for removal and disassembly in the
reverse order for assembly and installation of steering.
8.3.1 Assembly of Steering Shaft
1. Apply some oil to the steering shaft for assembly.
2. Apply some lithium grease to the O-ring at "A"
mark for assembly.
3. Apply some lithium grease to the "B" mark at the
spline for steering shaft and insert.

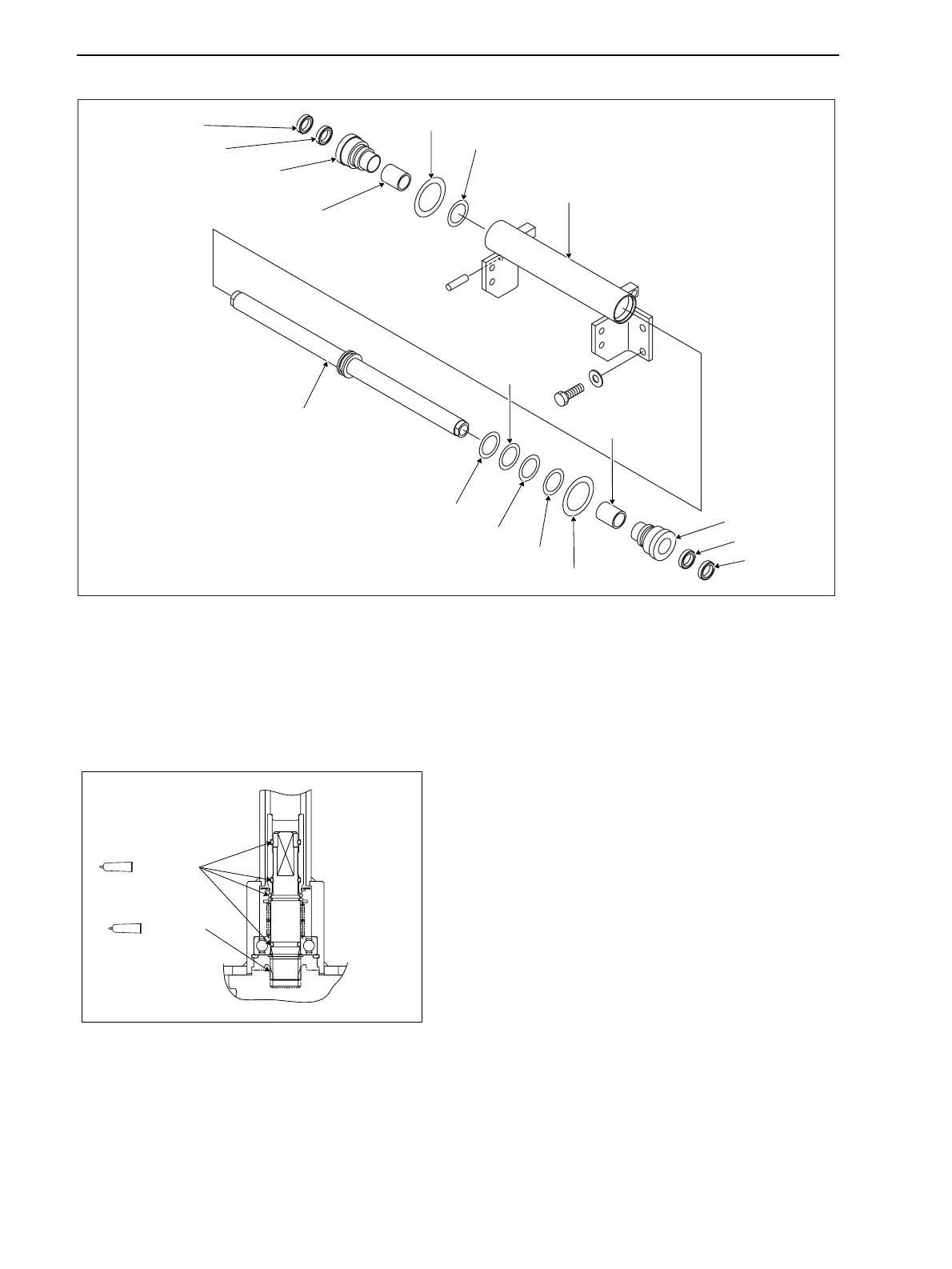

Cylindertube
Cylinderrod
Casepacking
Dustseal
O-ring
O-ring
O-ring
Ring
Ring
Bushing
Upacking
Casepacking
Dustseal
Upacking
Bushing
O-ring
O-ring
GZ3W27-004
Grease"A"
Grease"B"
GZ3W27-005
