2 Inspection and Adjustment
1 Start Switch

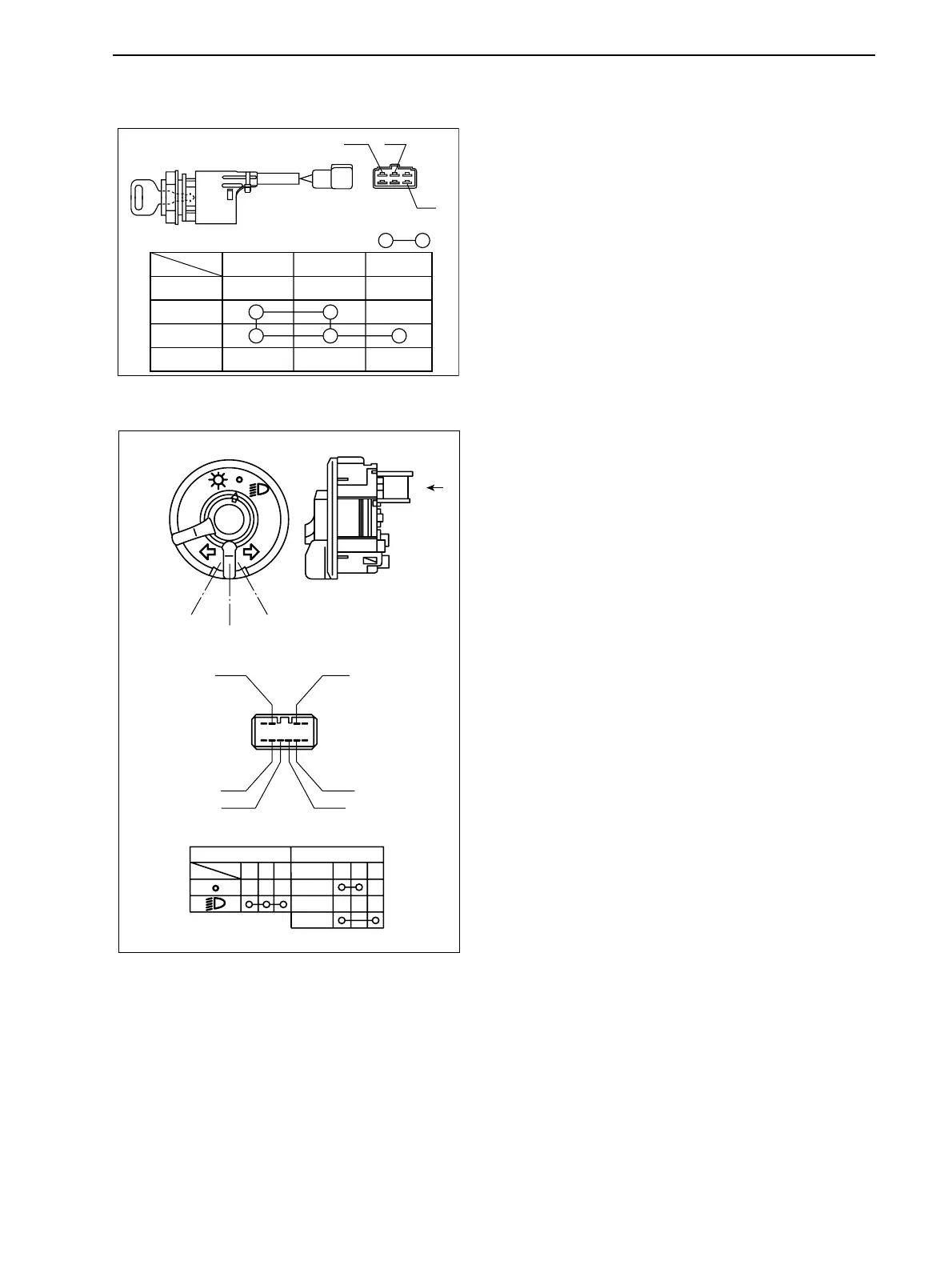

Using the circuit tester, make sure that continuity
between terminals for the start switch becomes as shown
in the figure.
• If the continuity is not as shown in the figure,
change the start switch.
2 Combination Switch
Using the circuit tester, make sure that continuity
between terminals for the combination switch becomes as
shown in the figure.
• If the continuity is not as shown in the figure,
change the combination switch.
W/B
W/B
BAT LOAD ST
BW
BW
OFF
ON
ST
Wiring Color
Continuity:
BY
BY
GZ3W41-006
Lighting SW Flasher SW
OFF
L
RLRB RB
RB RB
YGR
RL
A
A
GL
RL
GL GRY
R
GZ3W41-007
