2 Inspection and Adjustment
9

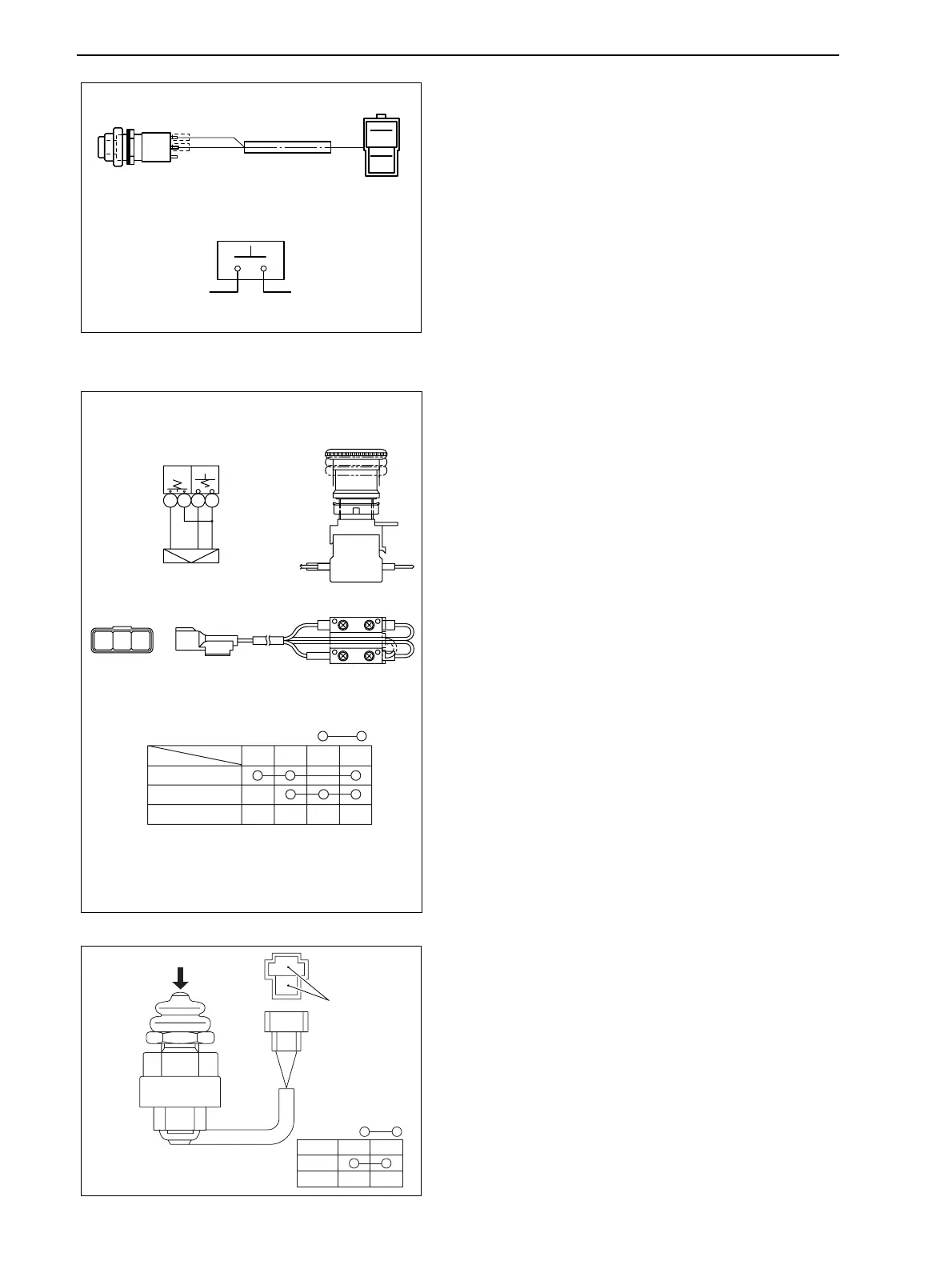

3 Hazard Switch
Using the circuit tester, make sure that continuity
between terminals for the hazard switch becomes as
shown in the figure.
• If the continuity is not as shown in the figure,
change the hazard switch.
4 IND PTO Switch (7530 Only)
Using the circuit tester, make sure that continuity
between terminals for the IND PTO switch becomes as
shown in the figure.
• If the continuity is not as shown in the figure,
change the IND PTO switch.
5 Safety Switch
Repeatedly press and release the tip of the safety switch.
Using the circuit tester, make sure that continuity
between terminals for the safety switch becomes as
shown in the figure.
• If the continuity as shown in the figure is not
confirmed, change the safety switch.
W
W
WR
R
R
1
2
3
GZ3W41-008
1234
GLB
BGL
NC
NO
2
1
43
IND PTO ON
IND PTO OFF
Wiring Color
Continuity:
1234
LBGB
GZ3W41-009
B
P
B
Press
Release
B(BW)
Continuity:
GZ3W41-010
