Transmission 5
80
5.9 Inspection and Adjustment of
Transmission
1 Change of Transmission Oil
• Gear Oil:
Multi STOU oil or API over class GL-4
Oil Amount:
HST: 32 L {8.5 gal}
Gear: 29 L {7.7 gal}
• Supply oil between the line "F" (upper limit) and
the line "A" (lower limit) on the level gauge.
• Perform oil inspection 5 minutes after oil supply.
2 Change of Hydraulic Filter
•1
st
Change: After 100 hours of operation
• As of 2
nd
time and on: Every 300 hours of
operation
• When change the hydraulic filter, larger amount of
oil tends to be supplied. Operate for 5 minutes and
check with the level gauge to supply the specified
amount of oil.
CAUTION
When installing the hydraulic filter, apply oil to the
packing, manually tighten the hydraulic filter, and
tighten approximately 2/3 turns after packing is
attached to the seal face.

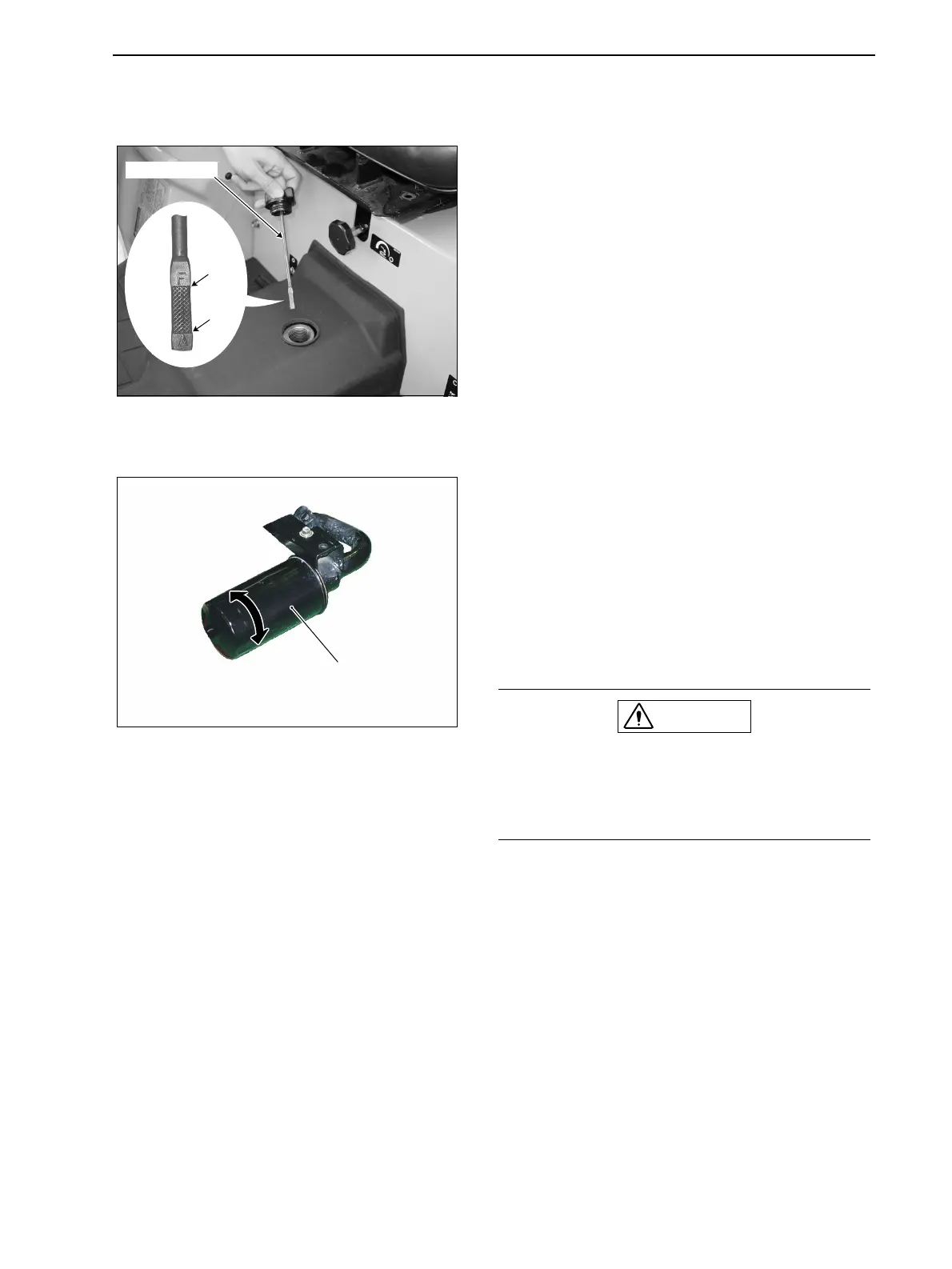

Oillevelgauge
Upper
limit
Lower
limit
GZ3W24-050
HydraulicFilter
Mount
Remove
GZ3W24-051
