5 Transmission
79

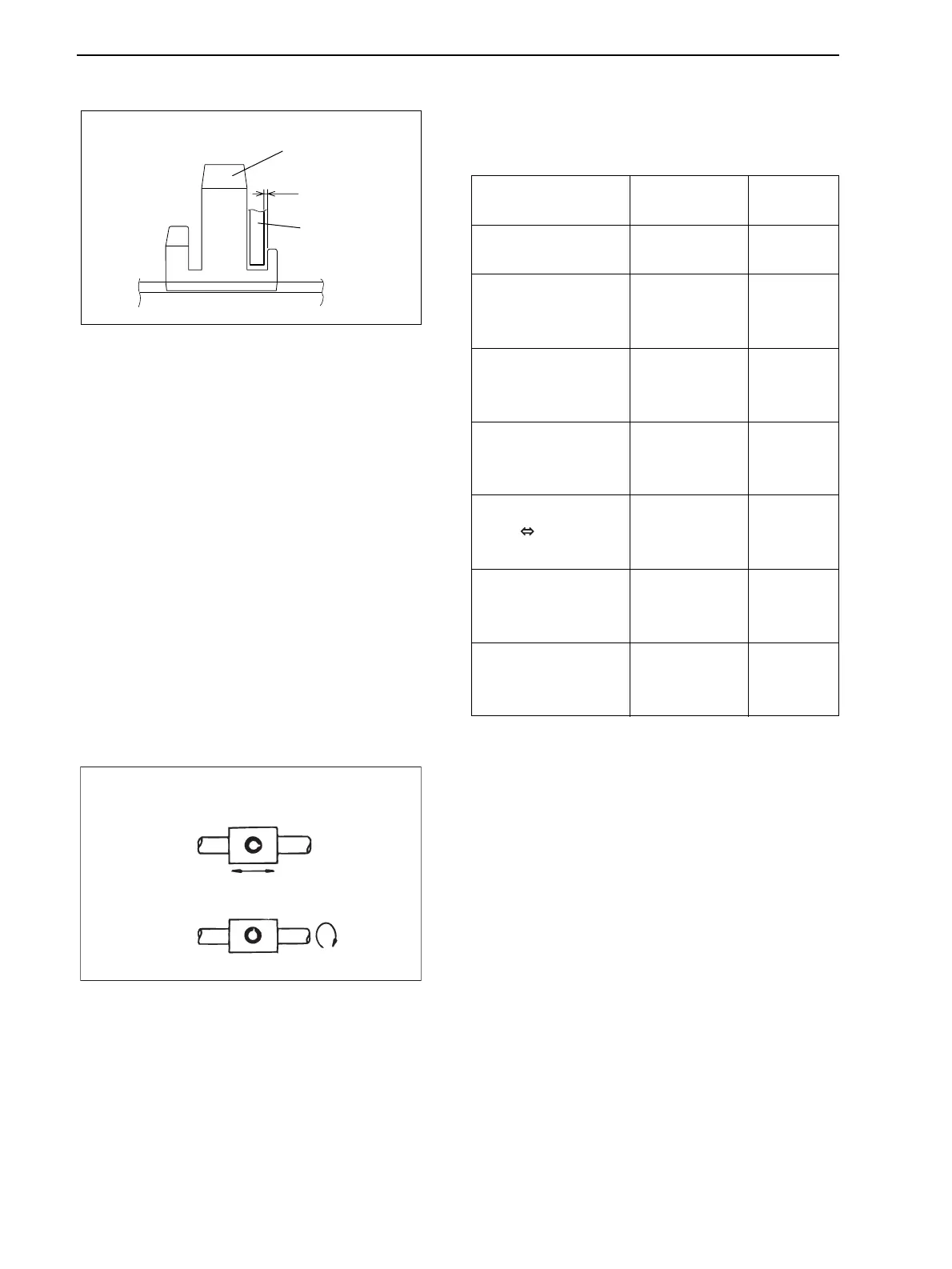

6 Clearance between Shift Fork and Gear groove
Measure the clearance between the shift fork and gear
groove and change if exceeding the usable limit.
(Unit: mm {in})
7 Assembly of Transmission Control
Refer to the drawing for the direction of slit for spring
pin.
When driving the spring pins, as shown in the
figure, toward the split (joint) to the same direction
which the force is received.
Item
Referential
Val ue
Usable
Limit
Clearance bet. shuttle
fork and gear groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet. main
gearing fork 1 to 2 and
gear groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet. main
gearing fork 3 to 4 and
gear groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet. sub
gearing fork and gear
groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet.
2WD 4WD shift
piece and gear groove
0.20 to 0.40
{0.008 to 0.016}
1.00
{0.039}
Clearance bet. rear
PTO fork and gear
groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet. MID
PTO fork and gear
groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Gear
Clearance
Fork
PR8W3-098
Shift rail
Lever boss
GS7W3-133
