Transmission 5
78

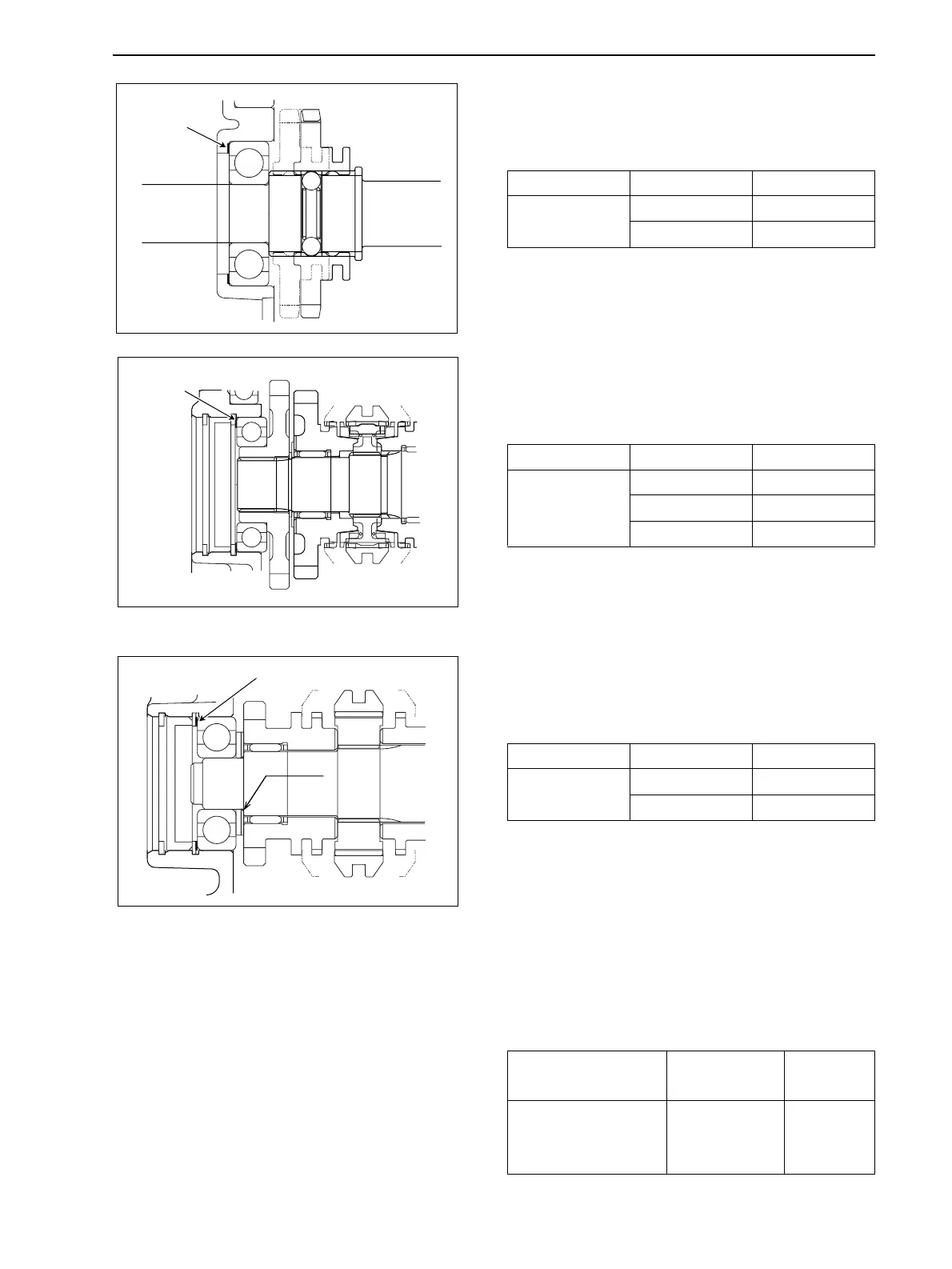

2. Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "B".
(Unit: mm {in})
3. Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "C".
(Unit: mm {in})
4. Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "D".
(Unit: mm {in})
5 Backlash of Gear
Change the spur gear with backlash exceeding the usable
limit.
(Unit: mm {in})
Item Thickness Parts No.
Liner "B"
0.2 {0.008} 0730 0006 202
0.6 {0.024} 0730 0006 206
Item Thickness Parts No.
Liner "C"
0.2 {0.008} 0730 0006 202
0.6 {0.024} 0730 0006 206
1.0 {0.039} 0730 0006 210
Item Thickness Parts No.
Liner "D"
0.2 {0.008} 0730 0005 202
0.6 {0.024} 0730 0005 206
Item
Referential
Val ue
Usable
Limit
Backlash of spur gear
for transmission
0.10 to 0.30
{0.004 to 0.012}
0.35
{0.014}
(Clearance)
35T
Liner"B"
GZ3W24-047
30TL
33TR
Liner"C"
GZ3W24-048
19TR
Chamfered
side
Liner"D"
GZ3W24-049
