Cub Cadet 7530 Maintenance Manual

3Clutch
40
3.5 Assembly and Installation of
Clutch
Follow the procedure for removal and disassembly in the
reverse order for assembly and installation of clutch.
1 Assembly of Clutch Assembly
1. Clean the flywheel of engine (clutch mounting
face) and apply rust preventive oil.
2. When assembling the clutch assembly, align the
inside diameter of flywheel bearing and install.
2 Assembly of Clutch Housing Assembly
1. When assembling the release bearing, apply
pressure to "A" and assemble.
2. Fill up lithium grease to "B" at inside diameter of
the release hub and assemble.
3. Apply lithium grease to "C" at the release lever and
assemble.
4. Apply lithium grease to both sides of the release
shaft and assemble.
5. Apply lithium grease to "D" at spline of the main
shaft and assemble.
6. Apply liquid packing (equivalent to Threebond
#1208D) to the composition face of the clutch
housing an engine rear plate and assemble.
Reference) For main shaft in the clutch
housing, refer to the section 5 - 8 Assembly
and Installation of Transmission for adjustment
and maintenance reference for transmission
parts.
CAUTION
Take caution for mounting direction of disc
assembly.

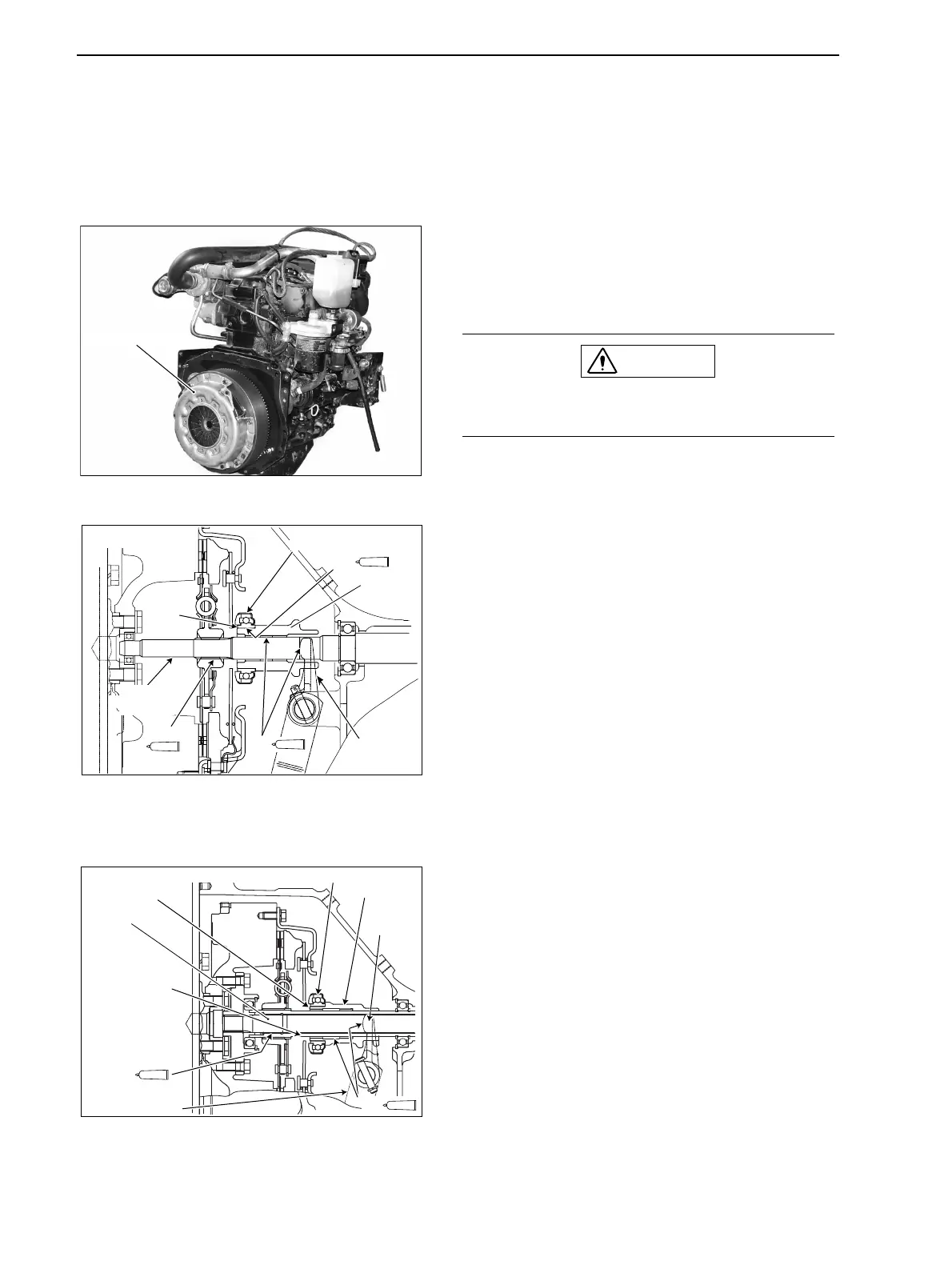

Clutchassembly
GZ3W22-005
HSTspecification
"C"
"B"
"D"
"A"
Main
shaft
Release
lever
Releasebearing
Release
hub
Grease
Grease
Grease
GZ3W22-028
6006
60/32
Manualtransmissionspecification
"A"
Releasearm
PTOshaft
Release
lever
Releasebearing
Releasehub
Mainshaft
"D"
Grease
"C"
Grease
GZ3W22-029
