Clutch 3
41
3 Assembly of Clutch Pedal
1. After adjusting the free play of clutch pedal to 20 to 30mm {0.79 to 1.18in} with nut, lock it.
3) Make sure that the pedal strokes to the stopper.
4) Adjust the rod length to 301mm {11.85in} and lock with nut.
2. Apply lithium grease to the shaft of clutch pedal.

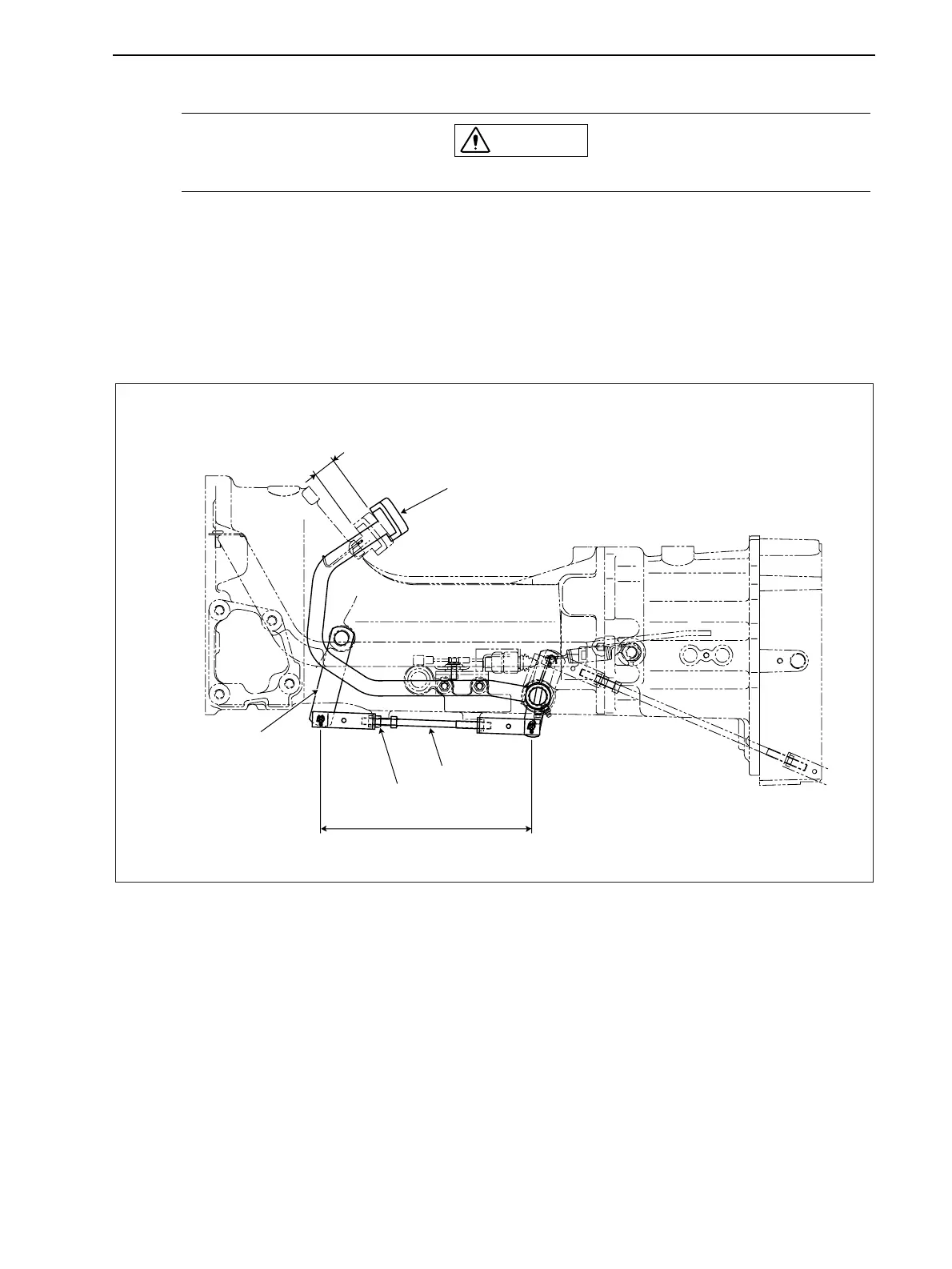

3. Assemble the pedal cover as shown in the drawing.
CAUTION
Take caution for direction of the spring.
Releasearm
Clutchpedal
Rod
301mm{11.85in}
20
to
30mm
{0.79
to
1.18in}
Locknut
GZ3W22-030
