Inspection and Adjustment 2
10

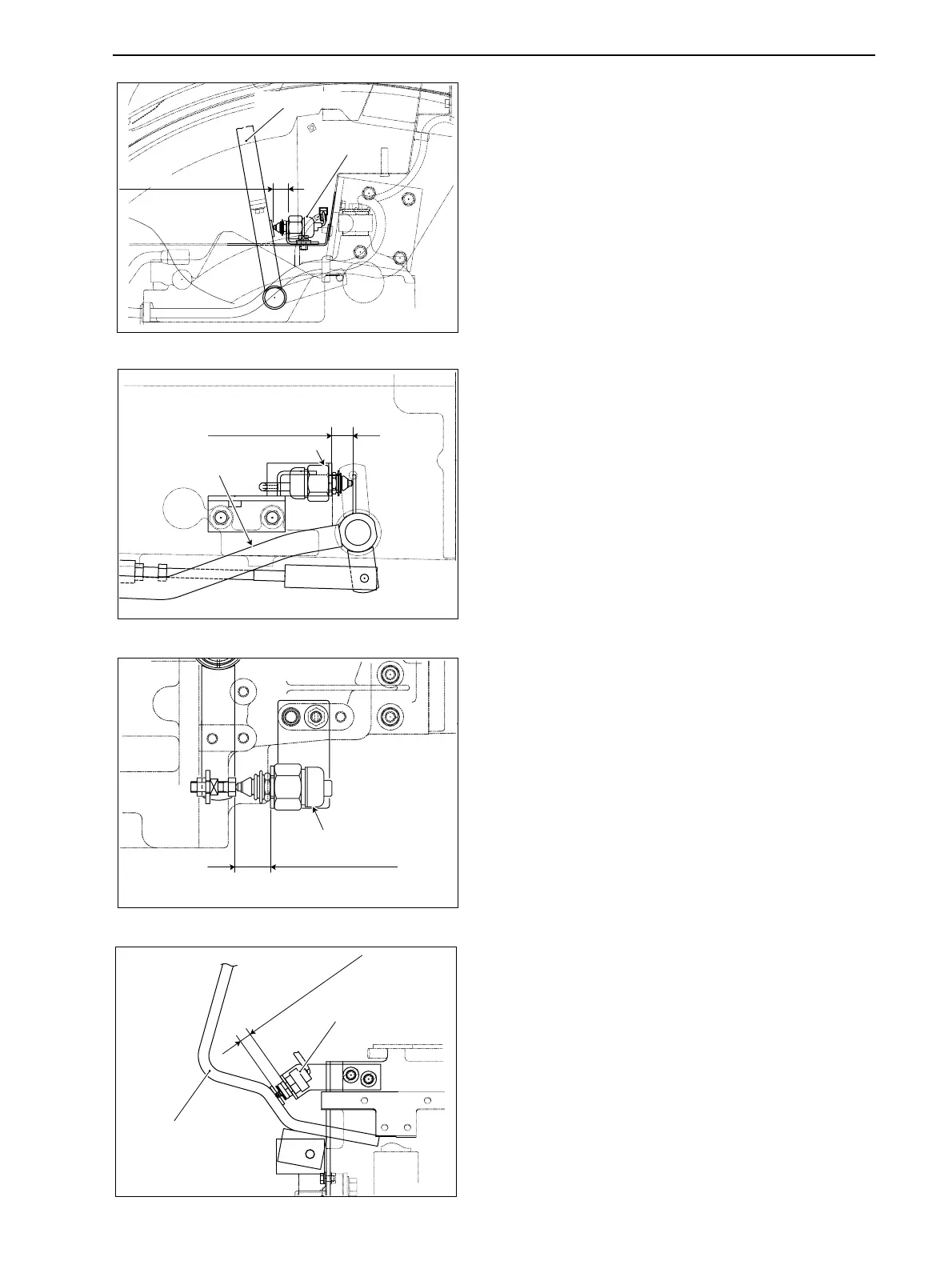

1. Adjustment of Rear PTO Switch
Set as shown in the figure.
2. Adjustment of Clutch Switch
Set as shown in the figure.
3. Adjustment of HST Pedal Switch (7532 Only)
Set as shown in the figure.
4. Adjustment of Shift Switch (7530 Only)
Set as shown in the figure.
PTO lever
PTO Switch
22.5 to 24.5 {0.89 to 0.96}
mm {in}
GZ3W41-011
Clutch pedal
Clutch Switch
19 to 21 {0.75 to 0.83}
mm {in}
GZ3W41-012
20 to 22 {0.79 to 0.87}
mm {in}
GZ3W41-013
HST Pedal Switch
Shuttle lever
(Shift lever)
Shift Switch
12.5 to 14 {0.492 to 0.55}
mm {in}
GZ3W41-019
