Transmission 5
72

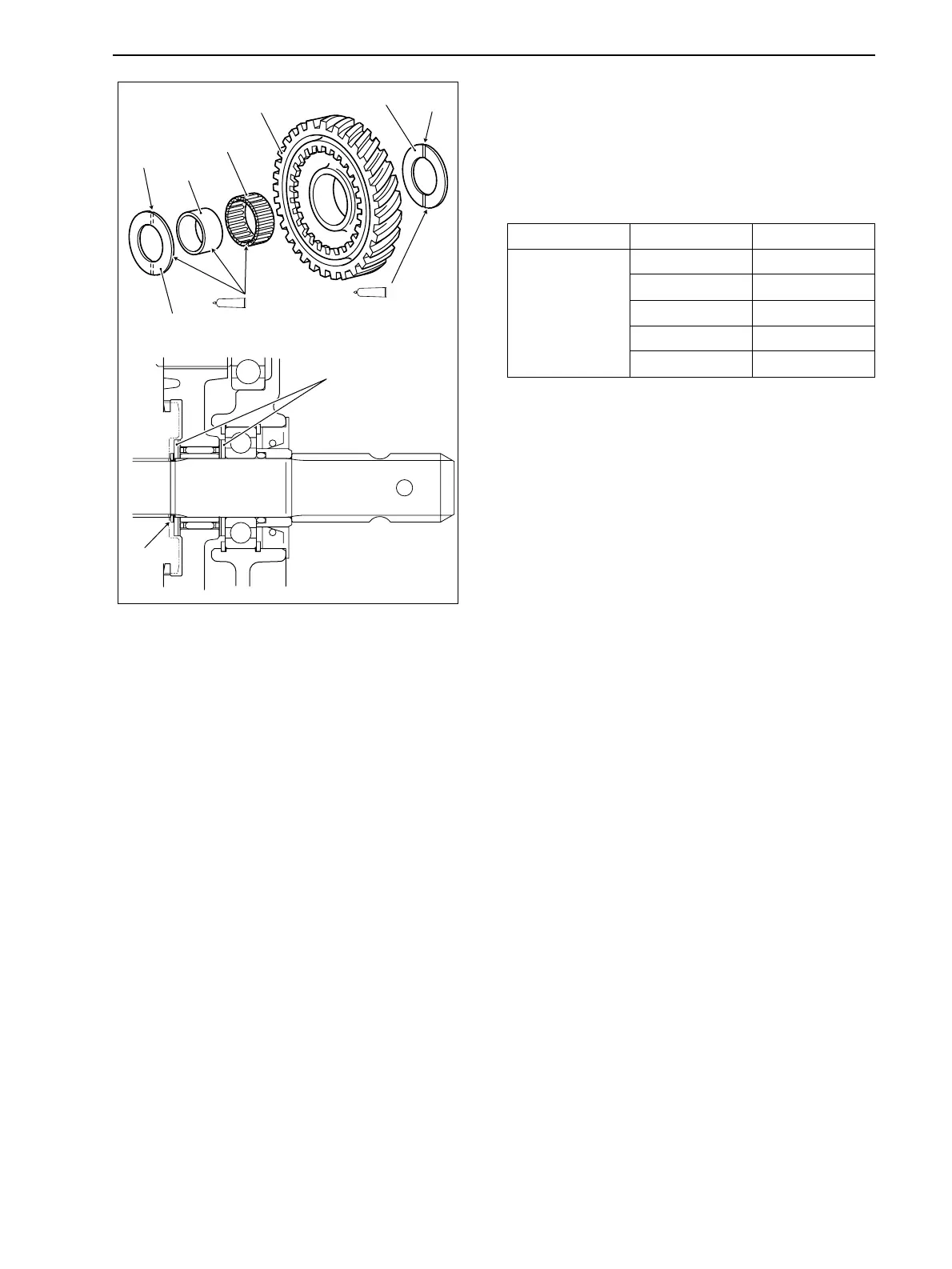

7. Assemble liner "B" with oil groove toward gear
44T.
8. Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "C".
(Unit: mm {in})
Note) * use only for HST specification.
Item Thickness Parts No.
Liner "C"
0.15 {0.006} 0731 0003 001*
0.2 {0.008} 0731 0003 002*
0.4 {0.016} 0731 0003 004*
0.8 {0.031} 0731 0003 008
1.0 {0.039} 0731 0003 010
Gear44T
Bearing
Sleeve
Liner"B"
Liner"B"
Liner"B"
Liner"C"
Oil
Oil
Groove
Groove
GZ3W24-037
