7 Front Axle
112

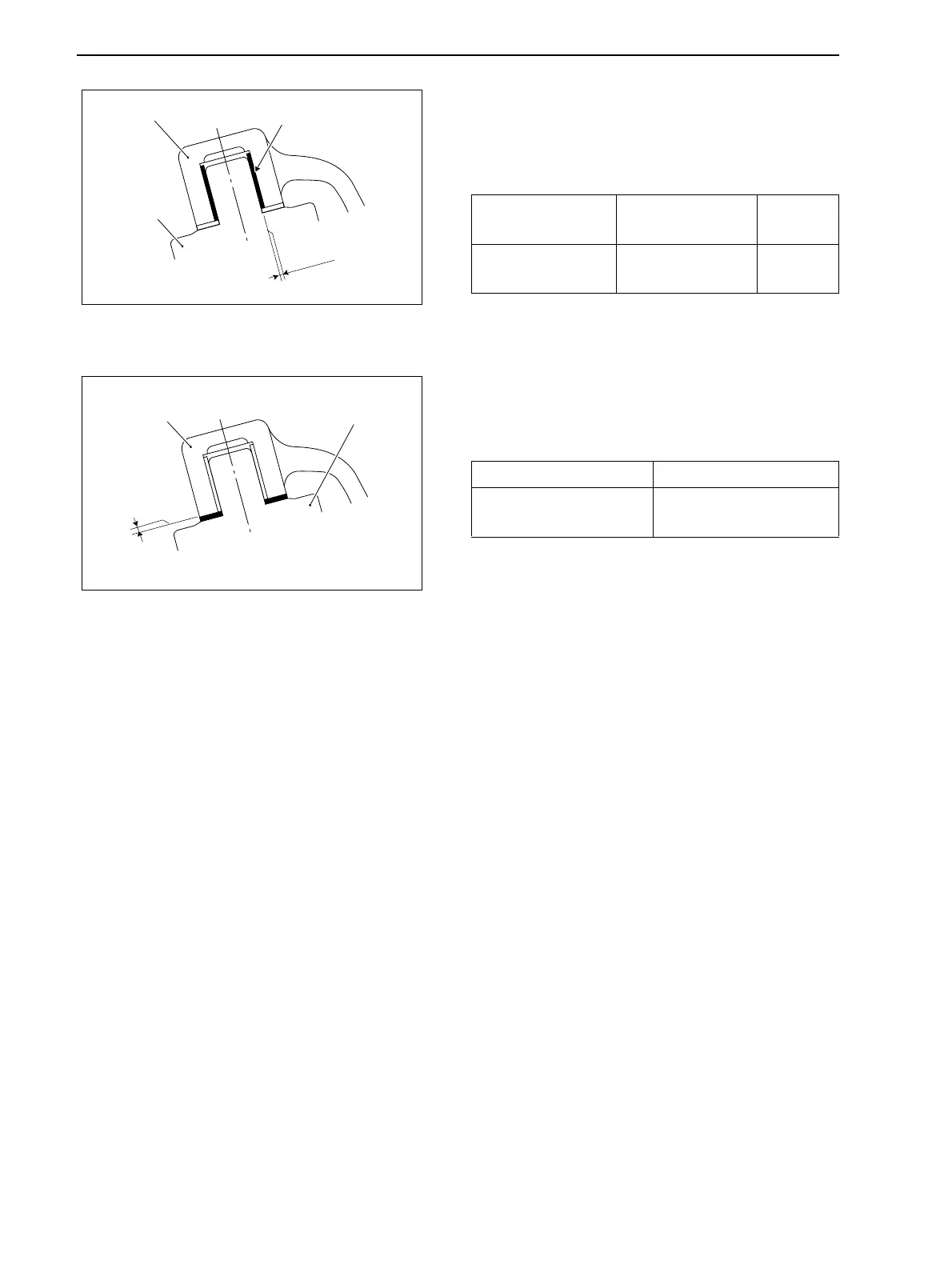

3. Clearance between the holder for knuckle arm and
bush
Inspect the clearance between the holder and bush
and change the bush exceeding the usable limit.
(Unit: mm {in})
4. Clearance between the holder and knuckle arm
Inspect the clearance of the holder and knuckle arm
and change the liner exceeding the usable limit.
(Unit: mm {in})
Item Referential Value
Usable
Limit
Clearance bet. holder
and bush
0.03 to 0.06
{0.0012 to 0.002}
0.20
{0.008}
Item Referential Value
Clearance bet. holder and
knuckle arm
0.05 to 0.20
{0.002 to 0.008}
Clearanc
Bush
Knucklearm
Holder
-
Knucklearm
Holder
Clearanc
