8Steering
120
8.3.3 Assembly of Hydraulic Cylinder Assembly
1. Adjust the steering angle on both sides to interior angle: 60°
0
-2°
and external angle: 54°
0
-2°
by adjusting the
length of stopper bolts.

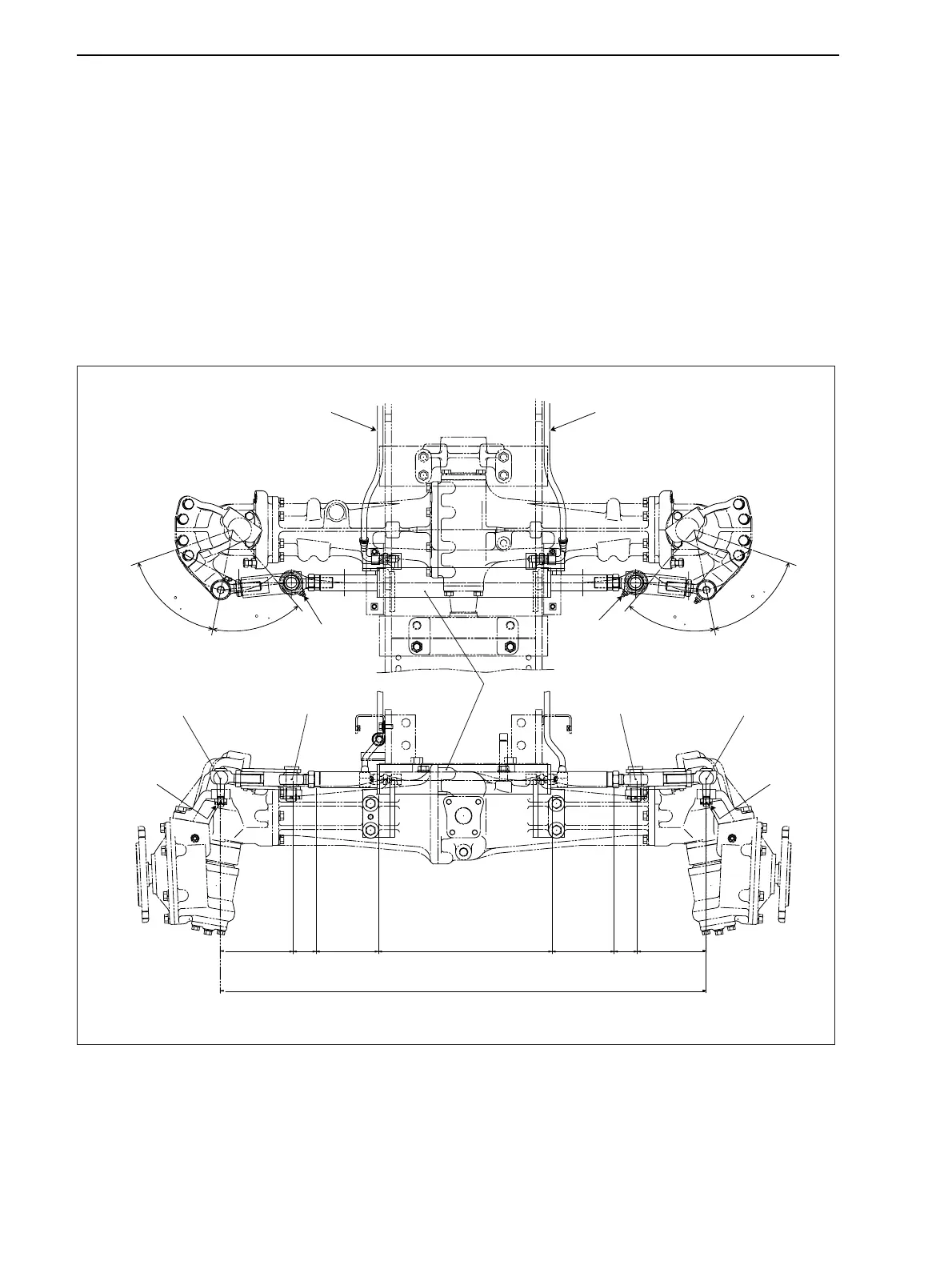

2. Install hydraulic cylinder assembly as shown in the figure with the nipple of rod end toward as shown (forward
to body) at basic measurement 43.5mm {1.71in}. (Tolerance of leaning angle: ± 10°)
3. Adjust the length of tie rod end to 132mm {5.2in} as shown in the figure and adjust the toe in by turning only
the tie rod.
Reference) Adjust the tie rod end of both sides to have the difference of margin on both sides for
cylinder rod to be within 1.5mm {0.059in}.
4. After tightening the tie rod end nut with torque at 44.1 to 53.9N•m {450 to 550kgf•cm, 32.5 to 39.8lbf•ft},
adjust the gap in the tightening range of 9.8N•m {100kgf•cm, 7.23lbf•ft} and assemble the split cotter pin.
8.3.4 Bleeding Procedure for Power Steering
After inspecting and adjusting the assembly of each part, follow the below procedure for air bleeding.
1. Set the engine speed to 1500 to 2000rpm.
Hydrauliccylinder
RodendTierodend
HoseR
Nipple
Rodend
Nipple
Nut
Tierodend
Nut
HoseL
132
{5.197}
43.5
{1.713}
43.5
{1.713}
116.5
{4.587}
116.5
{4.587}
325
{12.8}
909
{35.8}
132
{5.197}
mm{in}
GZ3W27-007
54
-2
0
60
-2
0
54
-2
0
60
-2
0
