8Steering
122

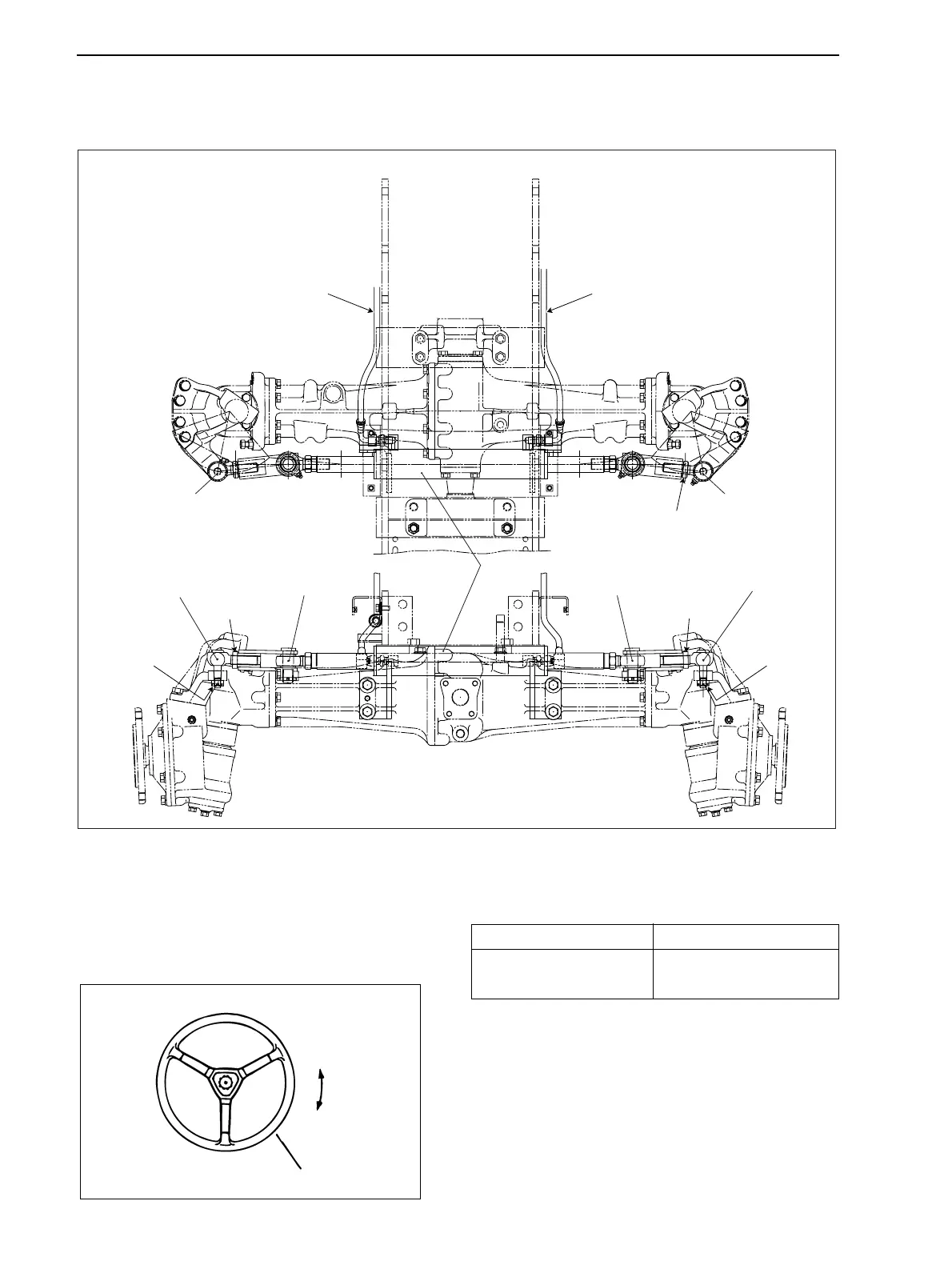

5) After tightening the nut for tie rod end with torque at 44.1 to 53.9N•m {450 to 550kgf•cm, 32.5 to
39.8lbf•ft}, adjust the gap in the tightening range of 9.8N•m {100kgf•cm, 7.23lbf•ft} and assemble the split
cotter pin.
8.4.2 Free Play for Steering Wheel
(Unit: mm {in})
There is a possibility of oil leakage or air suction, etc of
hydraulic cylinder if exceeding the above standard.
Check for the malfunction and perform inspection and
maintenance in case of nonexistence of malfunction.
Item Referential Value
Free Play for Steering
Wheel
Circumference: 20 to 50
{0.79 to 1.97}
Hydrauliccylinder
RodendTierodend
HoseR
Locknut
Tierodend
Rodend
Nut
Tierodend
Tierodend
Nut
Locknut
Locknut
HoseL
GZ3W27-008
Steeringwheel
GS7W3-197
