3 Disassembly of Hydraulic Block
4 External hydraulic circuit
This block can provide on external hydraulic circuit for loader use or other applications.
Remove the bolt, turn the plate from "O" side to "S" side, and mount with bolt.
Remove the plug P and N and connect the hose. (Plug size: R3/8)

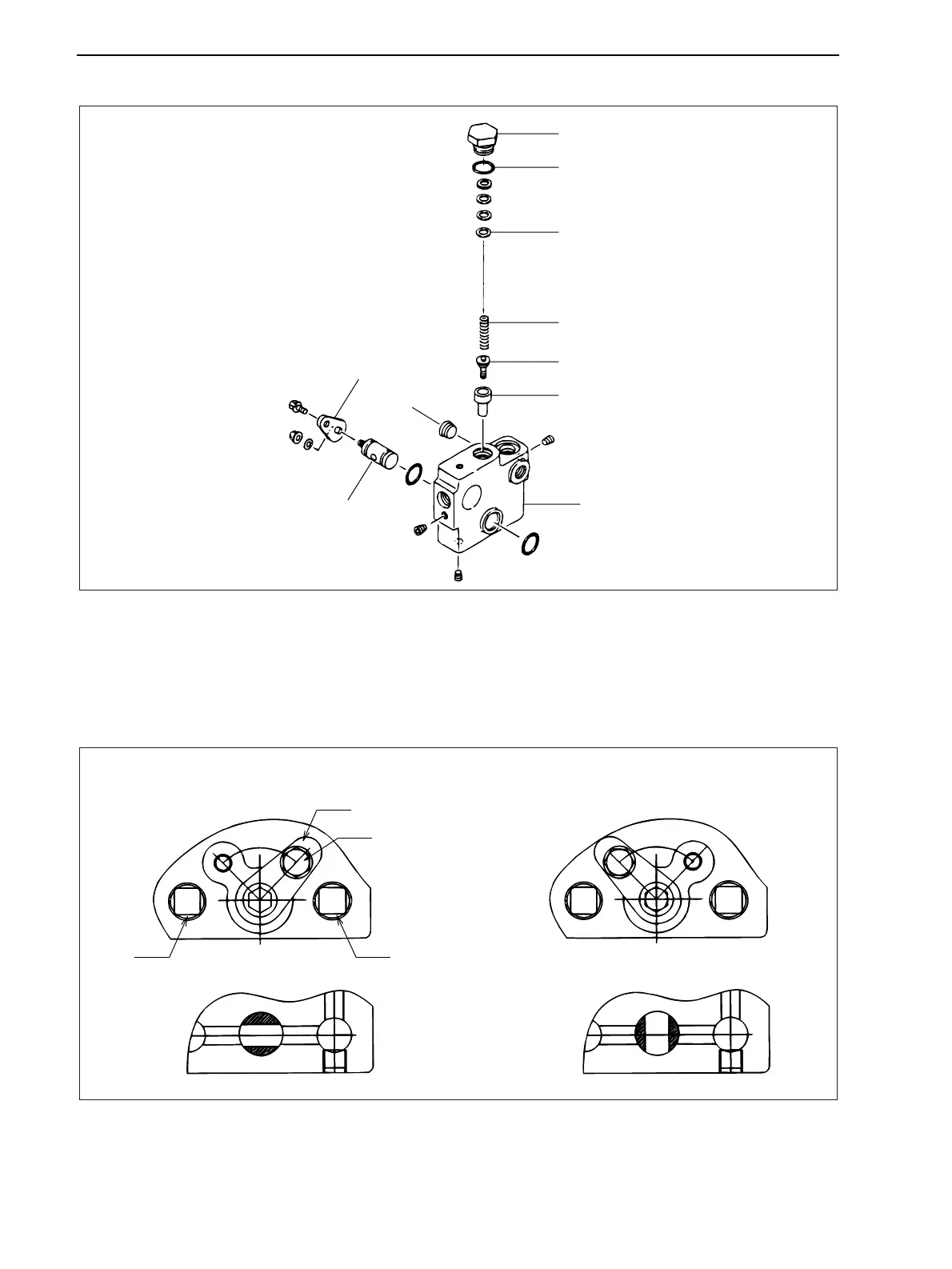

Plug
O-ring
Shim
Spring
Poppet
Housing
Reliefvalve
Taperplug
Plate
Shaft
PR8W4-006
NP
S
O
NP
S
O
WithplateonOside
R3/8
Plate
R3/8
WithplateonSside
Bolt
PR8W4-007
